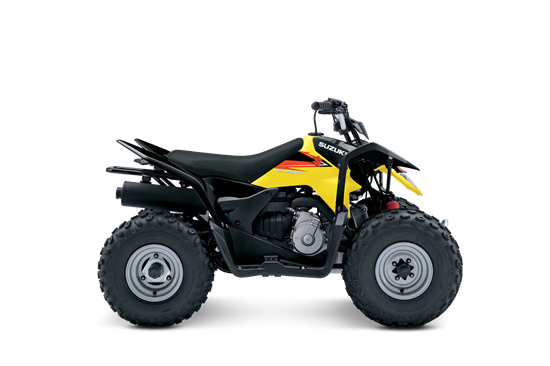

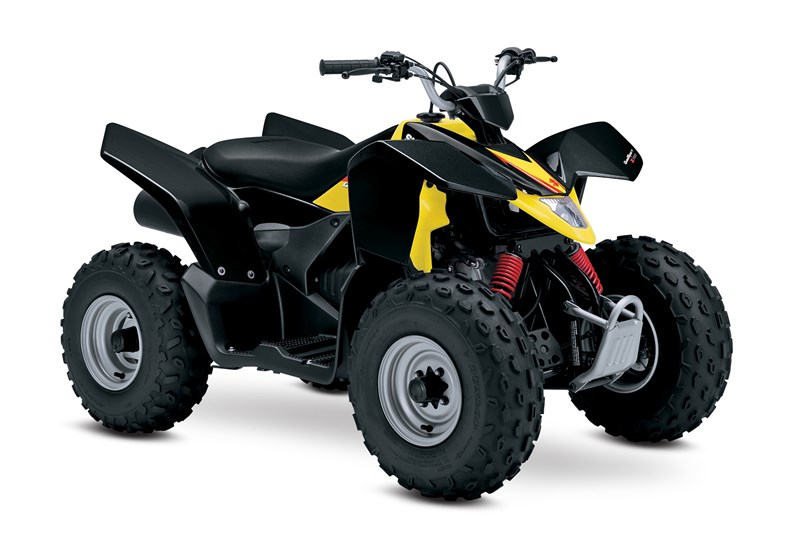

2018 Suzuki QuadSport Z90

2018 Suzuki QuadSport Z90
Solid Black and Champion Yellow
MSRP: $2,949.00
Manufacturer: Suzuki
Condition: New

Description

The 2018 Suzuki Z90 is the ideal ATV for adult-supervised riders age 12 and older to grow skills with. Convenient features like an automatic transmission and electric starter help make this ATV suitable for supervised riders ages 12 and up. An easy-to-set throttle limiter lets adults set the power level appropriately for young riders, and a keyed ignition switch makes sure there’s no unauthorized journeys. Get your little ones started on the Quadsport Z90 so your whole family can experience the fun of the outdoors and the joy of riding a Suzuki!

Specifications

ENGINE

Engine
90cc, 4-stroke, air-cooled, single cylinder, OHC
Bore x Stroke
45.5 x 55.2 mm (1.791 x 2.173 in)
Compression Ratio
9.5 : 1
Fuel System
MIKUNI VM16, single carburetor
Starter
Electric & back-up recoil
Lubrication
Wet sump


DRIVE TRAIN

Transmission
CVT Automatic
Driven Wheels
Dry shoe, automatic, centrifugal type
Driven Wheels
2WD
Final Drive
Chain, RK530, 60 links


CHASSIS

Suspension Rear
Independent, swing axle, coil spring, oil damped
Suspension Rear
Swingarm type, coil spring, oil damped
Brakes Front
Twin drum brakes
Brakes Rear
Single drum brake
Tires Front
AT19 × 7-8, tubeless type x 2
Tires Rear
AT19 × 7-8, tubeless type x 2
Fuel Tank Capacity
1.6 US gal. (6.0 L)
Color
Solid Black and Champion Yellow


ELECTRICAL

Ignition
Electronic Ignition (CDI)
Headlight
N/A
Tail Light
N/A


DIMENSIONS

Overall Length
59.3 in. (1505 mm)
Overall Width
34.4 in. (875 mm)
Overall Height
36.0 in. (915 mm)
Wheelbase
39.6 in. (1005 mm)
Ground Clearance
5.9 in. (150 mm)
Seat Height
25.6 in. (650 mm)
Curb Weight
280 lbs. (127 kg.)


WARRANTY

Warranty
12-month, unlimited mileage, limited warranty*
Extensions
*Extensions available through Suzuki Extended Protection (SEP)


Features

KEY FEATURES

  • Designed for adult-supervised riders age 12 and older
  • Adjustable throttle limiter controls speed
  • Easy electric starting plus backup recoil starter
  • Smooth-running CVT automatic transmission
  • Competition-inspired styling & color scheme

ENGINE FEATURES

  • Easy electric starting system plus standard backup recoil starter
  • Smooth-running CVT automatic transmission provides easy operation and allows the rider to focus on riding instead of shifting
  • Compact 90cc 4-stroke, single-cylinder, air-cooled engine has been designed for durability and low maintenance
  • Suzuki Composite Electrochemical Material (SCEM) cylinder, derived from Suzuki's high-performance, high-mileage GSX-R sportbikes, provides durability, weight reduction and superior heat dissipation
  • Smooth running, multi-plate cam chain lets the engine operate quietly. Easy-access oil filter and oil strainer cap reduces service time
  • Clean-burning four-stroke engine easily achieves California Air Resources Board (CARB) emissions regulations
  • Spark-arrester equipped muffler is environmentally friendly, yet has a pleasant exhaust note
  • Large 1.6-gallon (6.0 L) fuel tank for long operating range combined with vacuum fuel petcock that automatically stops fuel flow when the engine’s not running
  • A keyed ignition switch lets grown-ups decide when the action begins and ends
  • Simple screw-type throttle limiter allows adult supervisors to limit the maximum power delivery to suit the rider's ability
  • Speed-limiter collar in the automatic clutch limits top speed to 15 MPH. Can be removed to increase top speed as the rider gains ability

CHASSIS FEATURES

  • Child-size (Y-12) controls for easy operation
  • Single A-arm front suspension with twin independent shock absorbers and single-shock rear suspension provide long wheel travel for a smooth, comfortable ride
  • Rear axle shaft has double oil seals for long-life performance and reliability
  • Headlamp style front piece is detachable to achieve the sporty look of the QuadSport Z400
  • Large diameter semi-sealed front drum brakes and single fully sealed rear drum brake provide strong braking performance
  • Modern styling with full floorboards and a big Quad look, plus black and yellow bodywork with coordinated graphics
  • One-piece 8-inch wheels with tubeless tires provide a smooth comfortable ride
  • Strong, high-rigidity steel frame is sturdy and compact
  • This machine has a low seat height of just 25.6 inches for easy mounting and confidence-inspiring operation
  • Suzuki T-shaped seat similar to the QuadSport Z400 for smooth weight transition and a comfortable ride, and is easy to remove to simplify maintenance
  • Competition-inspired body-work with Solid Black and Championship Yellow color scheme
  • Seat has a durable black cover that complements the ATV’s graphics package

OTHER FEATURES

  • 12-month limited warranty is double the length of most other youth ATVs
  • A variety of Genuine Suzuki Accessories for QuadSport owners are available including a large selection of Suzuki logo apparel
  • Rider Minimum Age: 12 Years Old

All inventory listed is subject to availability and prior sale. Manufacturer's Suggested Retail Price (MSRP) if shown for a vehicle excludes set-up, freight, taxes, title, licensing or other dealer charges, and is subject to change. Individual prices may vary. Please request a quote for specific pricing.
