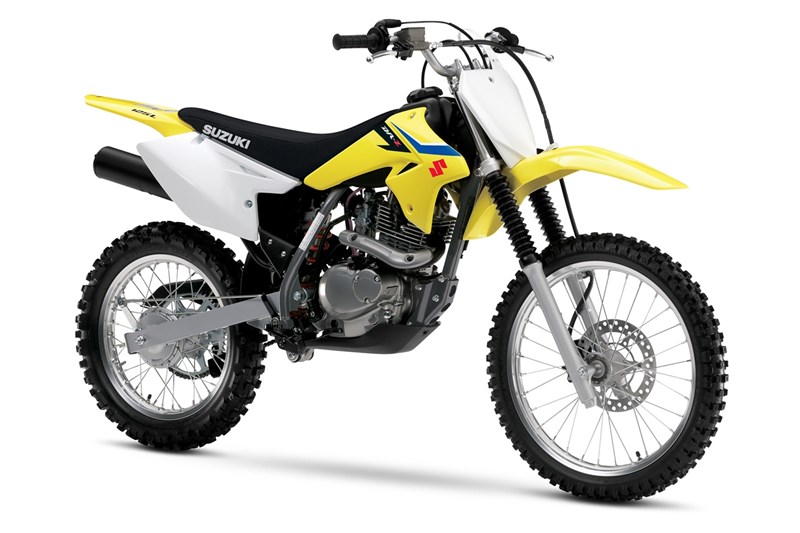

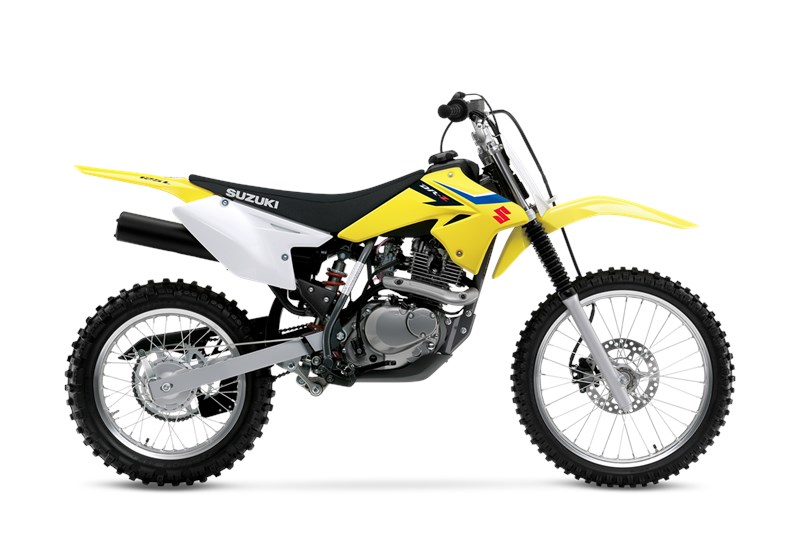

2018 Suzuki DR-Z125L

2018 Suzuki DR-Z125L
Champion Yellow No.2
MSRP: $3,249.00
Manufacturer: Suzuki
Condition: New

Description

Here comes the 2018 DR-Z1250L to make sure young and smaller stature riders can tackle the dirt. Larger 19-inch front and 16-inch rear tires, as well as a front disc brake, deliver big bike performance to a size appropriate motorcycle. Styled to mirror Suzuki’s Championship-winning RM-Z and RMX models, this DR-Z promotes a more race-oriented look while the sharp handling and strong low-to-mid end power provide the get-up-and-go that defines off-road bikes. The looks are a testament that you can’t judge a book by its cover because the DR-Z125L is an unassuming package packed with loads of fun.

Specifications

Engine

Engine
124cc, 4-stroke, air-cooled, single cylinder, OHC
Bore x Stroke
57.0 mm (2.244 in) x 48.8 mm (1.921 in)
Compression Ratio
9.5: 1
Fuel System
MIKUNI VM20SS, single carburetor
Starter
Primary Kick
Lubrication
Wet sump


DriveTrain

Clutch
Wet multi-plate
Transmission
5-speed constant mesh
Final Drive
DID 428HG, 130 links


Chassis

Suspension Front
Telescopic, coil spring, oil damped
Suspension Rear
Link type, coil spring, oil damped
Brakes Front
Disc brake, single rotor
Brakes Rear
Drum brake
Tires Front
70/100-19 42M, tube type
Tires Rear
90/100-16 52M, tube type
Fuel Tank Capacity
4.8 L (1.3 US gallons)
Color
Champion Yellow No.2 / Solid Black


Electrical

Ignition
Electronic ignition (CDI)
Spark Plug
NGK DR8EA or DENSO X24ESU


Dimensions

Overall Length
1885 mm (74.2 in)
Overall Width
770 mm (30.3 in)
Overall Height
1110 mm (43.7 in)
Wheelbase
1270 mm (50.0 in)
Ground Clearance
290 mm (11.4 in)
Seat Height
805 mm (32.0 in)
Curb Weight
89 kg (196 lbs)


Warranty

Warranty
6-month limited warranty*
Extensions
*Longer coverage periods with other benefits available through Suzuki Extended Protection (SEP)


Features

Engine Features

  • Compact 124cc 4-stroke, SOHC, single-cylinder, air-cooled engine provides strong low-to-mid range power delivery that can be easily handled
  • Precise digital CDI ignition system with an ignition-timing map tuned to optimize the engine’s power characteristics
  • MIKUNI VM20SS carburetor contributes to excellent throttle response
  • Suzuki Composite Electrochemical Material (SCEM) - plated cylinder for durability, lightweight and superior heat transfer

Transmission Features

  • Five-speed transmission with link-type gearshift system for precise operation and positive feel
  • Easy pull, rack & pinion manual clutch lets the rider control take-offs and power delivery

Chassis Features

  • Lightweight, high rigidity steel pipe frame and rear beam-style swingarm are designed specifically to create a compact, fully-sized off road machine
  • Lightweight aluminum rims (19-inch front/16-inch rear) for reduced weight contributing to agile handling and improved suspension performance
  • The seat and bodywork design provides a seamless surface for easy maneuverability
  • Appropriate 32 inch seat height lets the bike fit a variety of riders
  • Strong braking performance provided by lightweight front disc and rear drum brakes
  • Telescopic front forks and link-type rear suspension provides long wheel travel and smooth, progressive action that creates an enjoyable, comfortable ride
  • The rear shock absorber spring preload is fully adjustable for a wide range of riding conditions and rider weight
  • A lightweight plastic skid plate helps protect the bottom of the engine
  • Bright Suzuki Factory Yellow bodywork with matching race-inspired graphics

Additional Features

  • 6-month limited warranty

All inventory listed is subject to availability and prior sale. Manufacturer's Suggested Retail Price (MSRP) if shown for a vehicle excludes set-up, freight, taxes, title, licensing or other dealer charges, and is subject to change. Individual prices may vary. Please request a quote for specific pricing.
