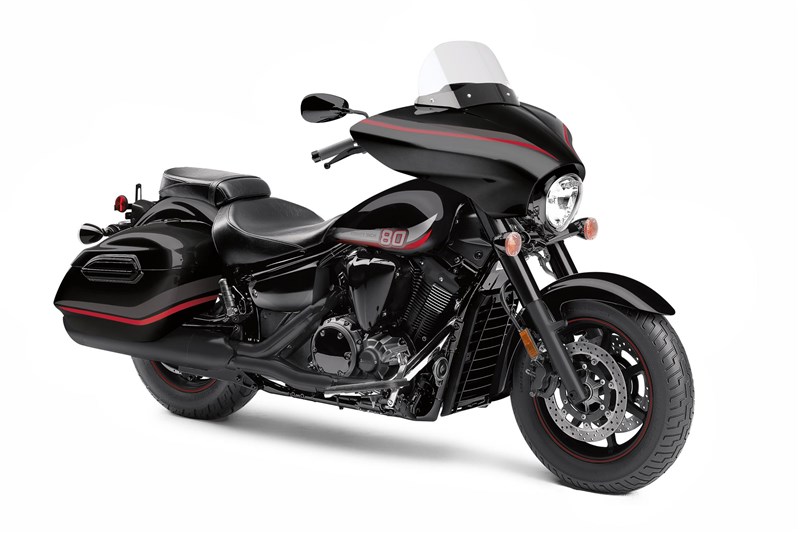

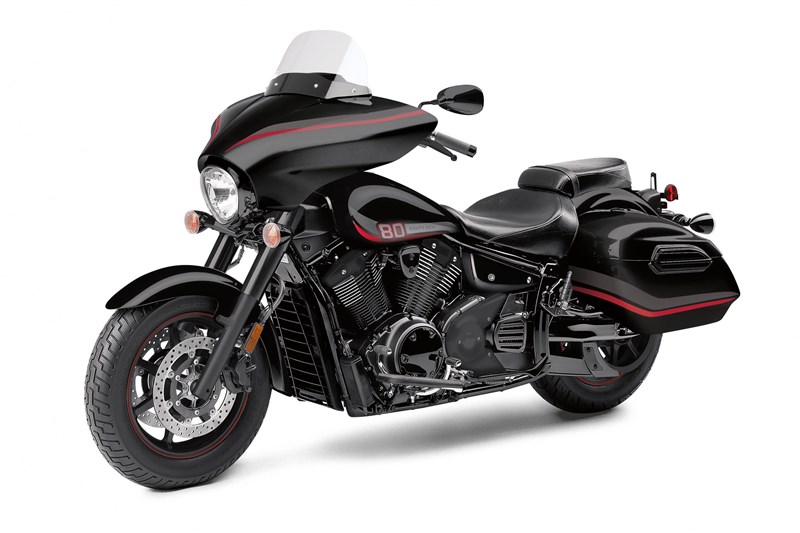

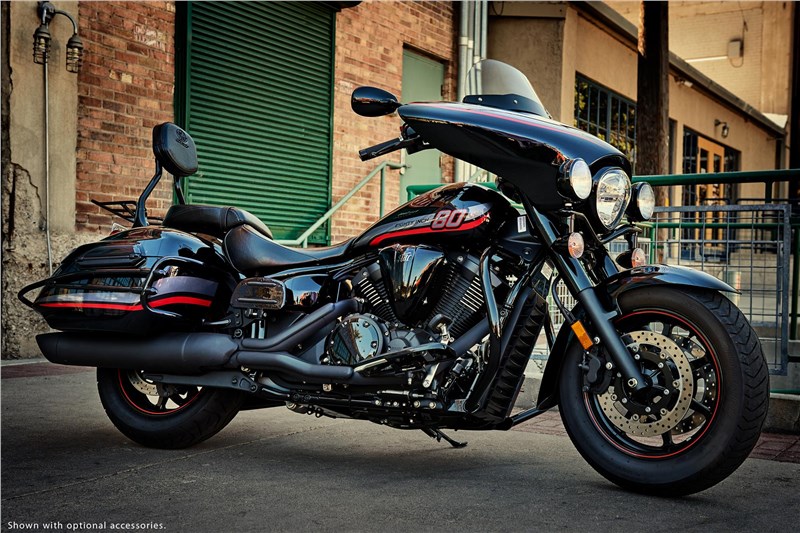

2017 Yamaha V STAR 1300 DELUXE
Raven
MSRP: $14,299.00
Manufacturer: Yamaha
Condition: New
Description
- Full Coverage Fairing
With its stylish full coverage fairing, low profile light smoke windshield, color matched sidebags and blacked out components, the 2016 V Star 1300 Deluxe has an aggressive stance and a great look that’s sure to turn heads whether riding down the highway or parked at your favorite local event. - Exceptional Features, Exceptional Value
The V Star 1300 Deluxe delivers exceptional value in the casual full-dress category, at a surprisingly low MSRP, making it the ideal choice for the midsize cruiser rider wanting high-end appearance and features. - Protective Fairing System
The fork-mounted fairing offers riders great weather protection, dynamic style, and houses high performance neodymium dual speakers that provide outstanding sound when cruising down the road. - Tunes for the Road
A fully integrated dash and audio system with iPod®/iPhone® compatibility. Riders can control their music on a control pod located on the left handlebar. - Navigation Comes Standard
The V Star 1300 Deluxe is equipped with a rugged, waterproof Garmin® zumo® 665 GPS. Features include motorcycle-friendly navigation, including weather and traffic conditions (if subscribed to monthly service), lane assist, and 3D building view. XM® satellite radio (with subscription) and Bluetooth® wireless functionality. - Factory Hard Luggage
Color-matched, lockable hard side bags have spacious room for long trips or commuting, and each has 7.6 gallons of volume - Classic Cruiser Styling
Real steel fenders make V Star 1300 Deluxe ideal for customization. - Ready to Customize
The Star® Accessories Catalog is packed full of high-quality parts that invite Star owners to fully express their individuality.
Specifications
Engine
Engine Type
80-cubic-inch (1304cc) liquid-cooled SOHC V-twin; 8 valves
Bore x Stroke
100.0mm x 83.0mm
Compression Ratio
9.5:1
Fuel Delivery
Electronic fuel injection
Ignition
TCI: Transistor Controlled Ignition
Transmission
5-speed; multiplate wet clutch
Final Drive
Belt
Chassis
Suspension / Front
41mm telescopic fork; 5.3-in travel
Suspension / Rear
Single shock; 4.3-in travel
Brakes / Front
Dual hydraulic disc, 298mm
Brakes / Rear
Hydraulic disc, 298mm
Tires / Front
130/90-16
Tires / Rear
170/70B-16
Dimensions
L x W x H
98.0 in x 41.2 in x 59.0 in
Seat Height
27.2 in
Wheelbase
66.5 in
Rake (Caster Angle)
n/a
Trail
n/a
Maximum Ground Clearance
n/a
Fuel Capacity
4.9 gal
Fuel Economy**
42 mpg
Wet Weight***
717 lb
Other
Warranty
1 Year (Limited Factory Warranty)
Features
Top Features:
- Full Coverage Fairing
With its stylish full coverage fairing, low profile light smoke windshield, color matched sidebags and blacked out components, the 2016 V Star 1300 Deluxe has an aggressive stance and a great look that’s sure to turn heads whether riding down the highway or parked at your favorite local event. - Exceptional Features, Exceptional Value
The V Star 1300 Deluxe delivers exceptional value in the casual full-dress category, at a surprisingly low MSRP, making it the ideal choice for the midsize cruiser rider wanting high-end appearance and features. - Protective Fairing System
The fork-mounted fairing offers riders great weather protection, dynamic style, and houses high performance neodymium dual speakers that provide outstanding sound when cruising down the road. - Tunes for the Road
A fully integrated dash and audio system with iPod®/iPhone® compatibility. Riders can control their music on a control pod located on the left handlebar. - Navigation Comes Standard
The V Star 1300 Deluxe is equipped with a rugged, waterproof Garmin® zumo® 665 GPS. Features include motorcycle-friendly navigation, including weather and traffic conditions (if subscribed to monthly service), lane assist, and 3D building view. XM® satellite radio (with subscription) and Bluetooth® wireless functionality. - Factory Hard Luggage
Color-matched, lockable hard side bags have spacious room for long trips or commuting, and each has 7.6 gallons of volume - Classic Cruiser Styling
Real steel fenders make V Star 1300 Deluxe ideal for customization. - Ready to Customize
The Star® Accessories Catalog is packed full of high-quality parts that invite Star owners to fully express their individuality.
Engine:
- Smooth, Powerful Engine
The 80-cubic (1304cc) liquid cooled SOHC 60° V-twin engine, with four valves per cylinder, 9.5:1 compression ratio and dual counterbalancers, delivers smooth power to the ground, while maintaining the classic big cruiser sound and pulse characteristics. - Compact, Low Friction Cam Drive
To keep friction loss to a minimum and help the engine achieve the ideal performance characteristics, special compact roller-type rocker arms with needle bearings are used. These also reduce top-end weight for excellent mass centralization. - High Performance Cylinder Heads
Four valves per cylinder (36mm intake, 32mm exhaust) provide optimum combustion efficiency. Roller rocker arms reduce friction for better performance and reduced wear. - Advanced Cylinder Design
Ceramic-composite-plated cylinders provide excellent heat dissipation, high durability and reduced oil consumption. - Forged Pistons
High-quality forged aluminum 100mm pistons have a lightweight, high-strength compact design that contributes to high performance and reduce vibration. - Classic V-twin Sound
Forged connecting rods ride a single crankpin for true V-twin sound and power. - Yamaha Fuel Injection
Sophisticated twin bore fuel injection is used on the V Star 1300 Tourer. Each cylinder is fed by its own injector spraying into twin 40mm throttle bodies, while the computer-controlled system provides a precise amount of fuel/air mixture to the engine for optimal performance in all conditions. The result is strong, smooth and seamless performance across the full range of engine rpm. - Smooth Shifting Transmission
The 5-speed transmission has a smooth shifting feeling, and gear ratios spaced to let the rider take full advantage of the engine’s torque characteristics and enjoy comfortable riding while cruising down the boulevard or at highway speeds. - Low Maintenance Belt Final Drive
The belt drive transfers power from the transmission to the wheel with authority. The belt system is clean, quiet and virtually maintenance-free and delivers a quicker, more impressive throttle response feeling than a shaft drive. - Cleanly Styled Motor
The classic cylinder fin styling of an air-cooled engine with a sly cooling system that routes liquid through hidden hoses and internal engine passages for air-cooled looks and liquid-cooled performance. Oil filter is easy to get to but also tucked nearly out of sight for clean looks.
Chassis/Suspension:
- Smooth, Agile Chassis
Built on a double cradle steel frame, giving the bike a rigid base for nimble handling, while allowing enough frame flex to be comfortable on the open road. Mated with belt guards, the swingarm’s sleek design is integrated into the overall styling of the whole bike. This allows excellent road bump absorption for all-day comfort on the great wide open. - Plush Suspension
Front forks feature big 41mm fork tubes with stainless covers that look great and the rear suspension is a bottom-link-type Monocross system with a gas charged single shock and adjustable spring preload. Settings are calibrated to deliver a plush ride that is increasingly firm as the suspension is compressed for good handling and comfort over bigger bumps in the road. - Comfortable Saddle
The shape of the seat has been designed with a “dish” shape for great comfort, and it allows riders to touch the ground easily. - Real Steel Fenders
Fenders are real steel, front and rear. That adds to the quality look and feel, and makes customization easier. - Tour-Ready Fuel Capacity
The fuel tank is sculpted low and sleek for style and comfort, with a flush-fitting, aeronautical-style gas cap incorporated into the tank’s sleek design. The tank holds a generous 4.9 gallons of fuel, thanks to a remotely located sub tank that also houses the fuel pump, for plenty of traveling range on the open road. - Stylish Cast Wheels
Seven-spoke aluminum wheels and matching rear pulley mount fat, 16-inch tires for a cool period look albeit with big contact patches on the road. - Potent Triple Disc Brakes
Dual 298mm front and single rear disc brakes. Provides consistent and predictable stopping power for driving in traffic or out on the open highway.
Additional Features:
- Full Coverage Fairing
The fork-mounted color matched fairing offers riders great weather protection, dynamic, sporty good looks, and houses dual high performance neodymium speakers that offer great sound when cruising down the road. - Integrated Audio
A fully integrated dash and audio system with iPod®/iPhone® compatibility. Riders can control their music on a control pod located on the left handlebar. - Navigation Comes Standard
The V Star 1300 Deluxe is equipped with a rugged, waterproof Garmin® zumo 665 GPS. Features include motorcycle-friendly navigation, including weather and traffic conditions (if subscribed to monthly service), lane assist, and 3D building view. XM® satellite radio (with subscription) and Bluetooth® wireless functionality. - Factory Hard Luggage
Color match, lockable hard side bags have spacious room for long trips or commuting, and each has 7.6 gallons of volume. - Star Fit and Finish
Star quality paint, chrome and detailing vie for attention wherever you look; fenders are steel not plastic. A 3D tank emblem design adorns the V Star 1300 Deluxe and evokes a modern-classic look. - Complete Instrumentation
Retro-modern bar-mounted instrumentation contains analog speedometer along with LCD display; indicator lights for high beam, turn signal, low oil level, low fuel, coolant temperature, neutral—and engine diagnostic function. - Comfortable Floorboards
Rider floorboards for comfort and room; heel/toe shifter makes moving through the five-speed gearbox a snap. - Excellent Illumination
Bright multireflector headlight, LED taillight and amber turn signals behind clear lenses give a custom look. - Clean Running
02 sensor and catalyst reduce emissions.
All inventory listed is subject to availability and prior sale. Manufacturer's Suggested Retail Price (MSRP) if shown for a vehicle excludes set-up, freight, taxes, title, licensing or other dealer charges, and is subject to change. Individual prices may vary. Please request a quote for specific pricing.
