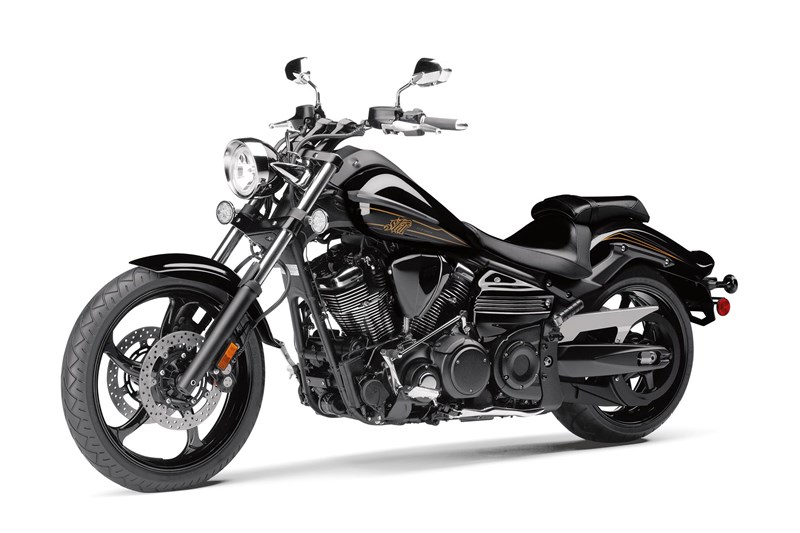

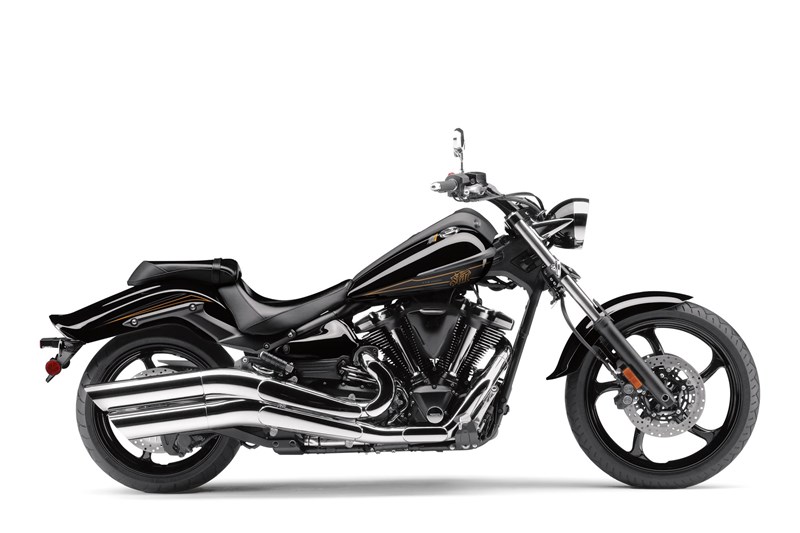

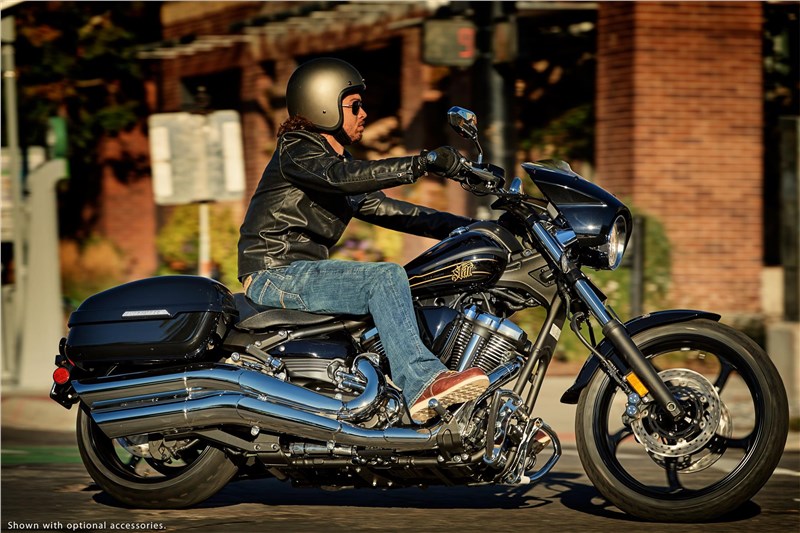

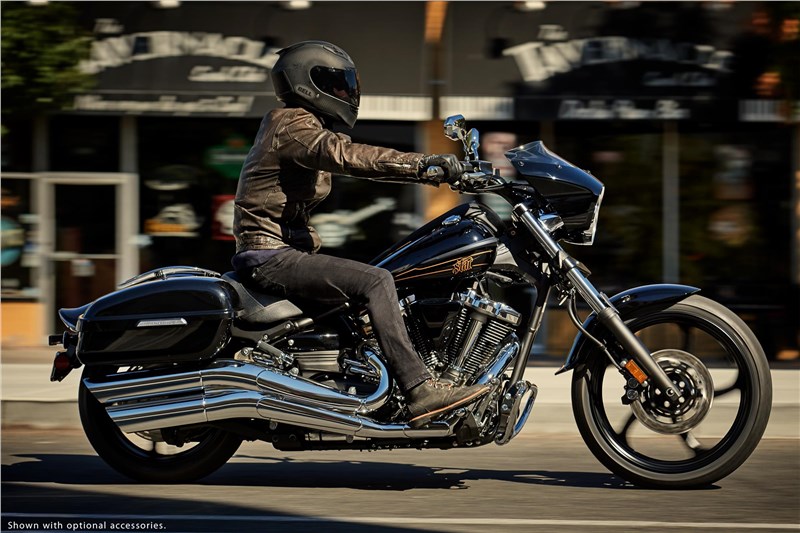

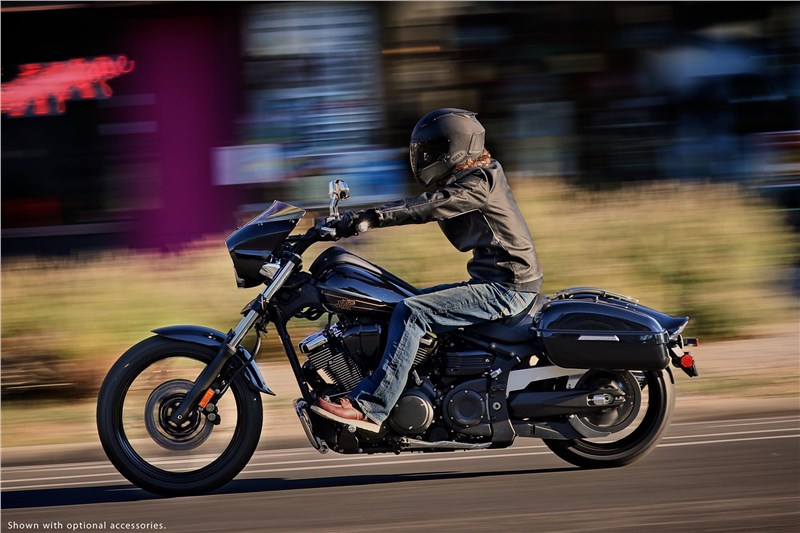

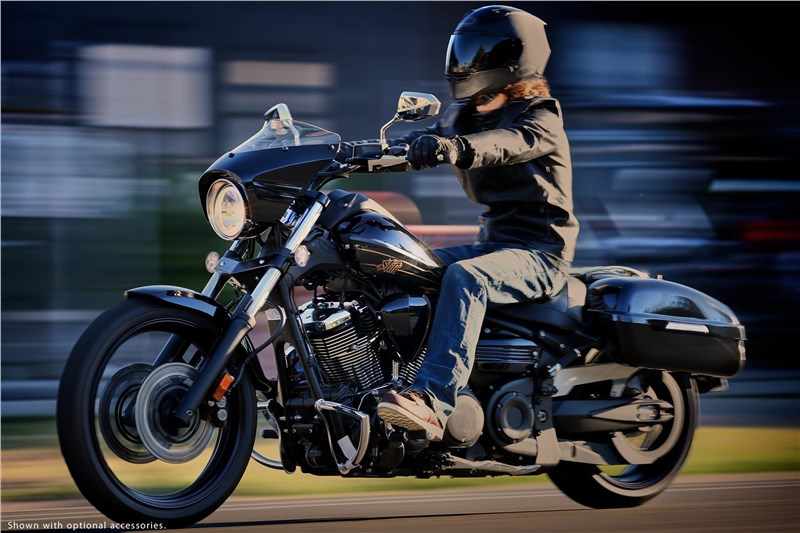

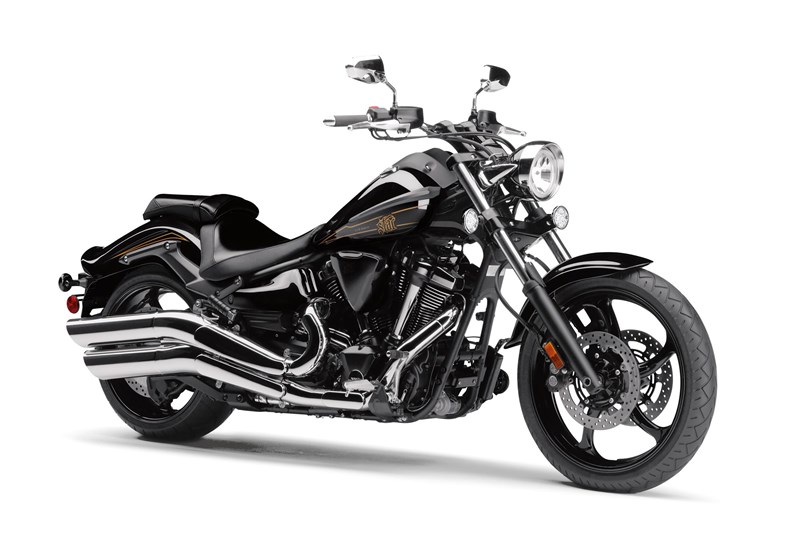

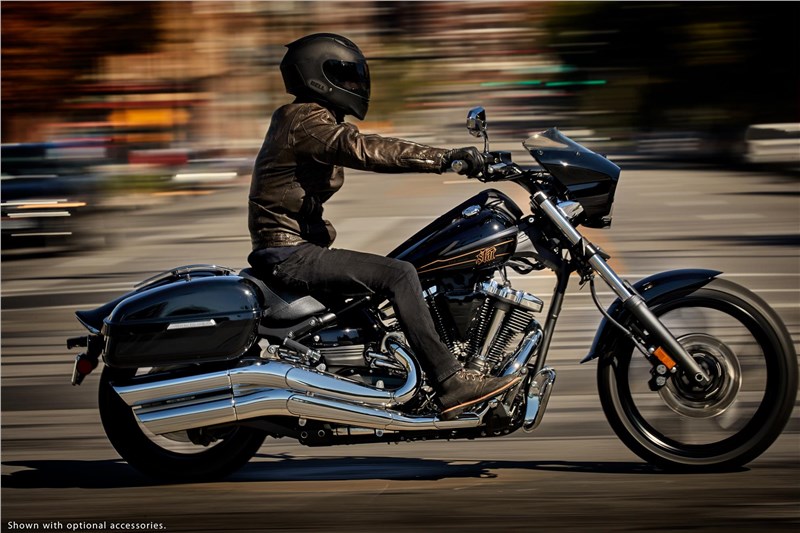

2017 Yamaha RAIDER
Raven
MSRP: $15,199.00
Manufacturer: Yamaha
Condition: New
Description
- Form and Function
The Raider® was inspired by the custom chopper movement, but since it’s a Star, it had to also handle, stop and go. - Kicked-out Front Fork
A 6-degree yoke angle—the first ever on a Star® motorcycle—makes it possible to achieve that custom raked-out look as well as neutral handling and straight-line cruisability combining a 33-degree rake plus 6 degrees yoke angle gives the Raider a total rake of 39 degrees and 102mm of trail. - Stylish Custom Wheels
Custom 5-spoke aluminum wheels carry a 120/70 profile, 21-inch tire up front, and a wide, 210/40-18 radial out back—the tallest and widest ever on a Star. - Real Steel Fenders
No cheap plastic fenders here—this authentic cruiser has real steel fenders customizers love. Classic belt drive, too. - Ready to Customize
Get started on your own customization. The Star® Accessories Catalog is packed full of high-quality parts that invite Star owners to fully express their individuality. - Ready to Travel
Estimated 42 mpg* means this cruiser can go the distance between fill-ups.
Specifications
Engine
Engine Type
113-cubic-inch (1854cc) air-cooled OHV V-twin; 8 valves
Bore x Stroke
100.0mm x 118.0mm
Compression Ratio
9.5:1
Fuel Delivery
Electronic fuel injection
Ignition
TCI: Transistor Controlled Ignition
Transmission
5-speed; multiplate wet clutch
Final Drive
Belt
Chassis
Suspension / Front
Telescopic fork; 5.1-in travel
Suspension / Rear
Swingarm; 3.5-in travel
Brakes / Front
Dual hydraulic disc, 298mm
Brakes / Rear
Hydraulic disc, 310mm
Tires / Front
120/70-21
Tires / Rear
210/40-18
Dimensions
L x W x H
101.2 in x 36.4 in x 45.9 in
Seat Height
27.4 in
Wheelbase
70.9 in
Rake (Caster Angle)
n/a
Trail
n/a
Maximum Ground Clearance
5.7 in
Fuel Capacity
4.2 gal
Fuel Economy**
42 mpg
Wet Weight***
734 lb
Other
Warranty
1 Year (Limited Factory Warranty)
Features
Top Features:
- Form and Function
The Raider® was inspired by the custom chopper movement, but since it’s a Star, it had to also handle, stop and go. - Kicked-out Front Fork
A 6-degree yoke angle—the first ever on a Star® motorcycle—makes it possible to achieve that custom raked-out look as well as neutral handling and straight-line cruisability combining a 33-degree rake plus 6 degrees yoke angle gives the Raider a total rake of 39 degrees and 102mm of trail. - Stylish Custom Wheels
Custom 5-spoke aluminum wheels carry a 120/70 profile, 21-inch tire up front, and a wide, 210/40-18 radial out back—the tallest and widest ever on a Star. - Real Steel Fenders
No cheap plastic fenders here—this authentic cruiser has real steel fenders customizers love. Classic belt drive, too. - Ready to Customize
Get started on your own customization. The Star® Accessories Catalog is packed full of high-quality parts that invite Star owners to fully express their individuality. - Ready to Travel
Estimated 42 mpg* means this cruiser can go the distance between fill-ups.
Engine:
- Huge Low-rpm Torque
113-cubic-inch (1854cc) air-cooled, OHV with 4 valves per cylinder, pushrod 48° V-twin pumps out max torque at just 2500 rpm and max power at 4500 rpm for powerful, relaxed cruising. - Stylish Engine
Four pushrod-activated valves and two spark plugs per cylinder provide optimum combustion efficiency along with classically beautiful engine architecture. Special custom machining of the cooling fin edges gives a jewel-like appearance to the engine as light hits it from different angles. - High-tech Internals
Ceramic-composite plated cylinders for superior heat dissipation with forged pistons cooled by oil jets. Provides outstanding reliability and longer engine life. - Tuned to Perform
9.5:1 compression ratio and aggressive cam timing increase power output across the board. - Advanced Fuel Injection
Computer-controlled, twin-bore fuel injection monitors multiple engine parameters to calculate perfect mixture under all conditions; wide-angle 12-hole fuel injectors provide excellent atomization. - Stealthy Airbox
A 3.5-liter airbox is hidden in the area below the fuel tank for great performance and clean styling. - Throaty Exhaust
Two-into-one-into-two exhaust with Exhaust Ultimate Power valve (EXUP®) inside boosts torque in the 2500-3500-rpm range.
Chassis/Suspension:
- Aluminum Frame
All-aluminum cast frame is light, rigid and tuned for light, athletic handling. A light, Controlled-Fill, aluminum swingarm casting complements the bike’s lithe style. - Secure Riding Position
Low, sculpted seat holds the rider in place, and pullback bars reach back to enforce a casual, urban cruising style. - Kicked-out Front Fork
A 6-degree yoke angle—the first ever on a Star® motorcycle—makes it possible to achieve that custom raked-out look as well as neutral handling and straight-line cruisability combining a 33-degree rake plus 6 degrees yoke angle gives the Raider a total rake of 39 degrees and 102mm of trail. - Stylish Custom Tires
Custom 5-spoke aluminum wheels carry a 120/70 profile, 21-inch tire up front, and a wide, 210/40-18 radial out back—the tallest and widest ever on a Star. - Plush Suspension
46mm fork tubes serve a sweet appearance and an excellent ride through 5.1 inches of wheel travel. A tucked-out-of-sight single shock out back provides a smooth ride under varying loads. - Generous Fuel Range
Flangeless fuel tank carries a full 4.2 gallons of fuel. - Potent Brakes
Front brake master cylinder with integrated lever operates a pair of 298mm front discs squeezed by strong 4-piston monoblock calipers, with the rear 310mm disc gripped by a floating single-piston caliper, for excellent power and feel. - Clean Belt Drive
Strong, light and narrow belt final drive contains embedded carbon fiber for even greater strength. - Hidden Wiring
Wiring harness uses super-slim wires for compactness and lighter weight, and switchgear wiring is routed inside the handlebar for a clean appearance.
Additional Features:
- Peerless Quality
Jewel-like fit and finish, and Star® quality paint, chrome and attention to detail are evident all over the Raider. - Tank-mounted Instruments
Cool, tank-mounted instrumentation complements the custom look, and contains analog speedometer and fuel gauge, along with twin digital trip meters, odometer, clock, adjustable brightness and self-diagnostics. - Excellent Lighting
Bright multi-reflector headlight, LED taillight, and custom amber LED turn signals behind clear lenses give a custom look. A right-thumb activated accessory driving light switch is ready for accessory lighting, too. - Clean Running
02 sensor and three-way catalyst reduce emissions.
