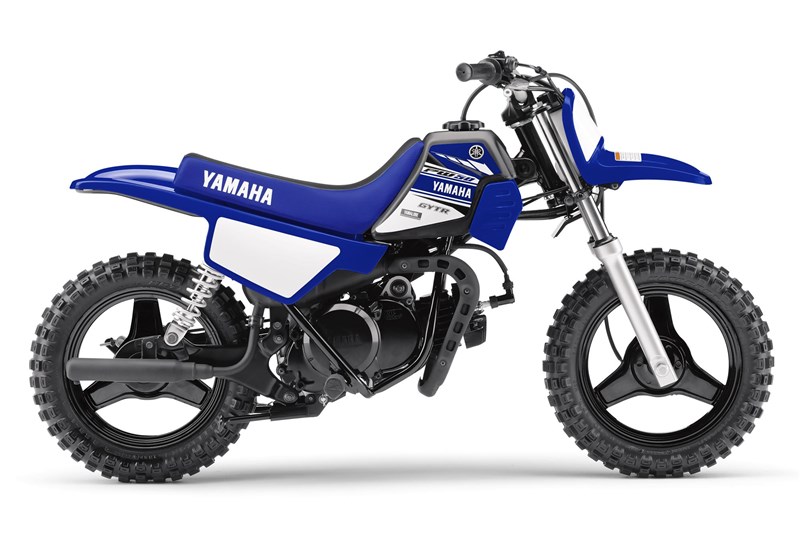

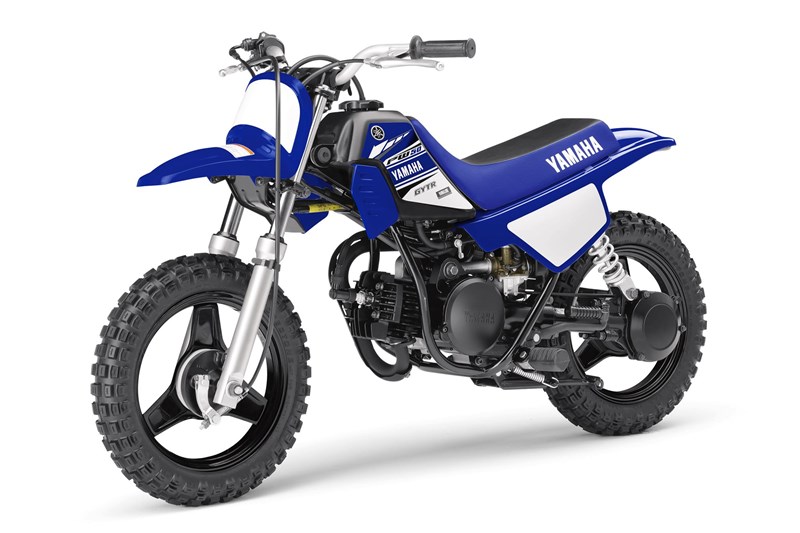

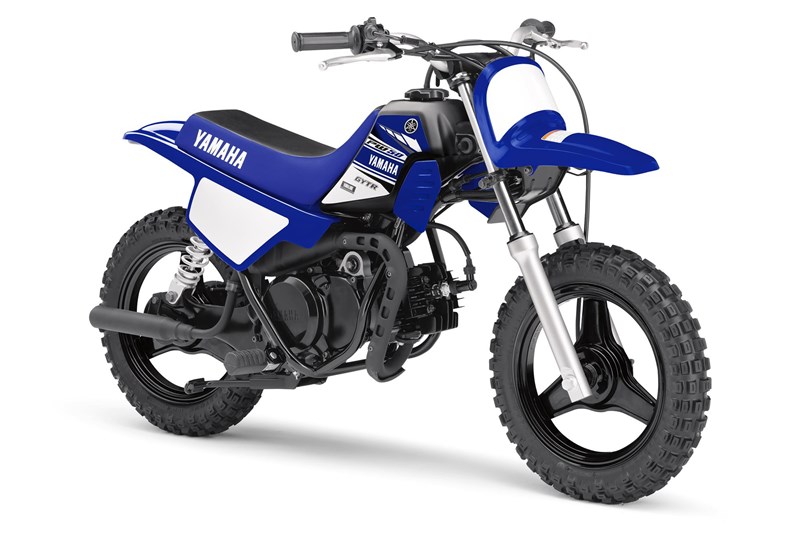

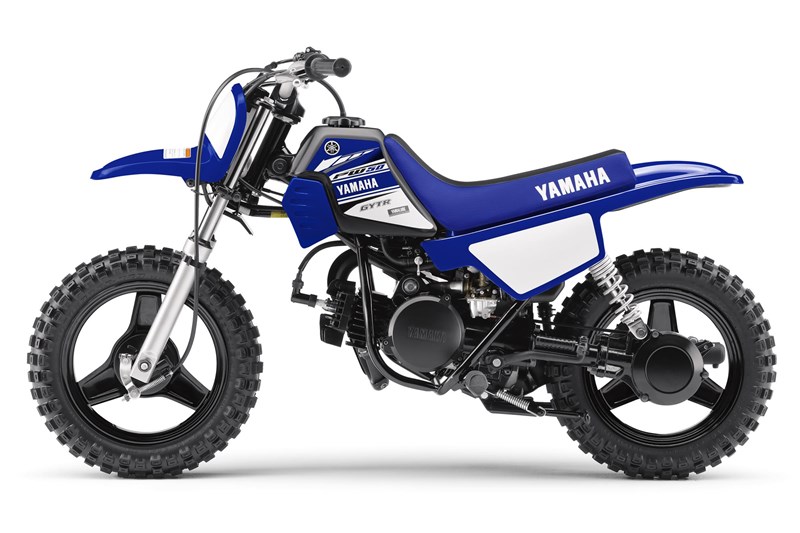

2017 Yamaha PW50

2017 Yamaha PW50
Team Yamaha Blue
MSRP: $1,449.00
Manufacturer: Yamaha
Condition: New

Description

  • Fully Automatic Transmission
    Fully automatic transmission means no shifting required; the PW50 is a twist-and-go package.
  • Entry-Level Two-Stroke Motor
    Gutsy 49cc two-stroke is built to thrill without intimidating beginners.
  • Ultra-Low Seat Height
    A seat only 18.7 inches high makes the PW50 the ideal choice for the littlest rider in the group.
  • Adjustable Restrictor
    An adjustable throttle stop screw lets the adult in charge gradually increase speed as skills improve.
  • Low Maintenance Requirements
    Shaft final drive means no chain maintenance, while Yamaha's exclusive autolube oil injection system eliminates the need for fuel/oil premixing.

Specifications

Engine

Engine Type
49cc air-cooled 2-stroke; reed-valve induction
Bore x Stroke
40.0mm x 39.2mm
Compression Ratio
6.0:1
Fuel Delivery
VM12 carburetor
Ignition
CDI
Transmission
Wet centrifugal automatic
Final Drive
Shaft


Chassis

Suspension / Front
26mm telescopic fork; 2.4-in travel
Suspension / Rear
Unit swingarm; 2.0-in travel
Brakes / Front
Drum
Brakes / Rear
Drum
Tires / Front
2.50-10-4PR
Tires / Rear
2.50-10-4PR


Dimensions

L x W x H
49.0 in x 24.0 in x 27.8 in
Seat Height
18.7 in
Wheelbase
33.7 in
Rake (Castor Angle)
25.5°
Trail
2.0 in
Maximum Ground Clearance
3.7 in
Fuel Capacity
.5 gal
Wet Weight
90 lb


Other

Warranty
90 Day (Limited Factory Warranty)


Features

Top Features:

  • Fully Automatic Transmission
    Fully automatic transmission means no shifting required; the PW50 is a twist-and-go package.
  • Entry-Level Two-Stroke Motor
    Gutsy 49cc two-stroke is built to thrill without intimidating beginners.
  • Ultra-Low Seat Height
    A seat only 18.7 inches high makes the PW50 the ideal choice for the littlest rider in the group.
  • Adjustable Restrictor
    An adjustable throttle stop screw lets the adult in charge gradually increase speed as skills improve.
  • Low Maintenance Requirements
    Shaft final drive means no chain maintenance, while Yamaha's exclusive autolube oil injection system eliminates the need for fuel/oil premixing.

New for 2017:

  • New, Larger Fork
    A new, larger 26mm fork improves durability and suspension performance, while stylish new black wheels give the PW50 a racier appearance.

Engine:

  • Entry-Level Two-Stroke Motor
    49cc air-cooled, case-reed–inducted, two-stroke single is tuned to deliver predictable power that gently eases the new rider up the off-road learning curve.
  • Fully Automatic Transmission
    Single-speed automatic transmission means the rider simply twists the throttle and goes, allowing him/her to concentrate on the ride ahead.
  • Maintenance-Free Shaft Drive
    Class-exclusive shaft drive system is virtually maintenance-free and comes fully enclosed for added durability.
  • Convenient Oil Injection System
    Exclusive autolube oil injection system eliminates the need for fuel/oil premixing.

Chassis/Suspension:

  • Ultra-Low Seat Height
    18.7-inch seat height allows most kids to put both feet down for added confidence.
  • Upgrade Front Suspension
    A new, larger 26mm telescopic front fork with 2.4 inches of travel smooths out the bumps for responsive handling with improved durability.
  • Maintenance-Free Mag Wheels
    Mag-style wheels mean there’s no need to tighten or replace spokes.
  • Dual Shocks
    Dual rear shocks with 2.0 inches of travel smooth the trail to deliver confidence-inspiring ride quality.
  • Enclosed Drum Brakes
    Front and rear drum brakes provide smooth, predictable stopping power.
  • Durable Knobby Tires
    10-inch front and rear knobby tires provide excellent traction and superior wear.
  • Quiet, Compact Exhaust
    Quiet exhaust pipe, complete with removable baffle, is routed away from the rider.
  • Simplified Servicing
    Rear fender, seat and side panel unit removes quickly for ease of maintenance.

Additional Features:

  • Comfortable Saddle
    A thick seat enhances rider comfort.
  • Racy Styling
    Team Yamaha-inspired colors, graphics and front and side number plates create styling just like the bigger off-roaders.
  • Grippy Footpegs
    Large, folding foot pegs with rubber grips provide excellent footing.
  • Adjustable Restrictor
    An adjustable throttle stop screw lets the adult in charge gradually increase speed as skills improve.

All inventory listed is subject to availability and prior sale. Manufacturer's Suggested Retail Price (MSRP) if shown for a vehicle excludes set-up, freight, taxes, title, licensing or other dealer charges, and is subject to change. Individual prices may vary. Please request a quote for specific pricing.
