- 2017 Yamaha FZ‑07

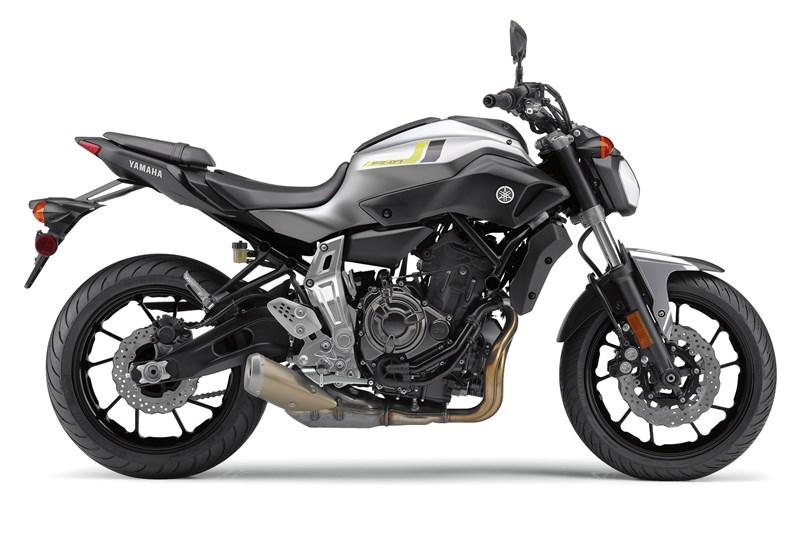

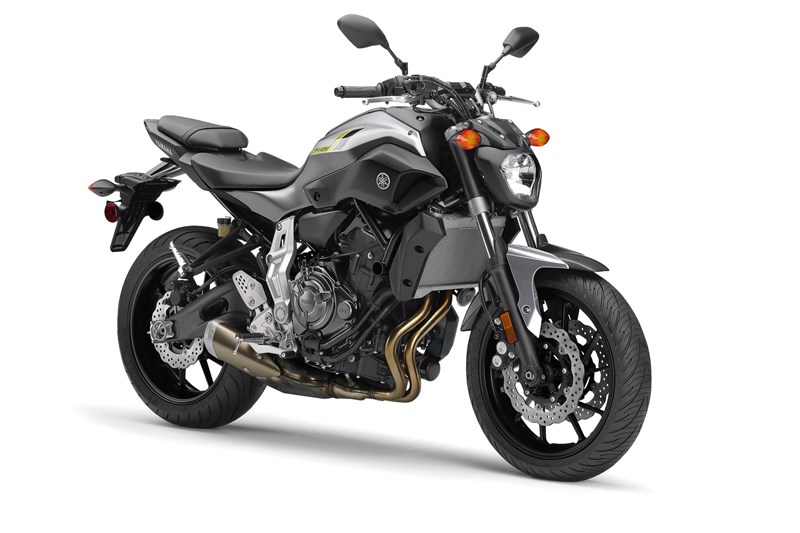

2017 Yamaha FZ‑07

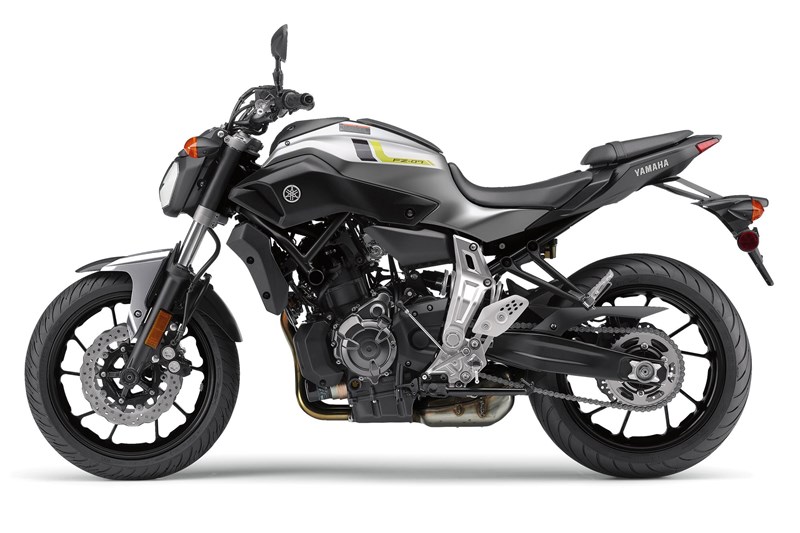

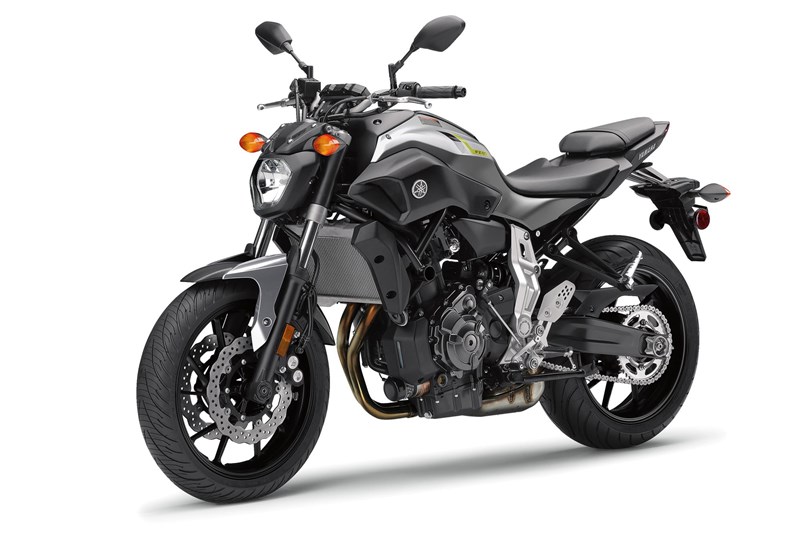

Matte Silver
MSRP: $7,199.00
Manufacturer: Yamaha
Condition: New
Description
- Compact, Torque-Rich Engine
The FZ-07 features a compact 689cc liquid-cooled, inline twin cylinder, DOHC engine with fuel injection. This engine provides a unique power character, combining outstanding low- to mid-range torque with strong high-rpm pulling power. - Crossplane Concept
This 2-cylinder engine features Yamaha’s “Crossplane Concept” 270 degree crank that provides linear torque development in response to the rider’s throttle input. The CP2 engine is also light, slim and compact and offers an excellent level of rider/machine communication. - Compact Frame Design
A lightweight diamond-type high tensile steel frame provides an optimized rigidity balance for light, agile handling and stability. The engine is a stressed member of the chassis, allowing a lighter, more compact main frame design. - Sporty Chassis Dimensions
The wheelbase, seat height, fuel tank width, rake and other dimensions are all set to work with the qualities of the compact twin-cylinder engine to achieve a sporty, light and neutral handling character. - Advanced Instruments
The compact full-LCD instrument panel includes a digital bar-type tachometer display with gear position indicator, digital speedometer, odometer, dual trip meters, fuel gauge, fuel reserve trip meter, clock, instant and average fuel consumption and a range of warning and indicator lights.
Specifications
Engine
Engine Type
689cc liquid-cooled DOHC 4-stroke; 8 valves
Bore x Stroke
80.0mm x 68.6mm
Compression Ratio
11.5:1
Fuel Delivery
Fuel injection
Ignition
TCI: Transistor Controlled Ignition
Transmission
Constant mesh 6-speed; multiplate wet clutch
Final Drive
Chain
Chassis
Suspension / Front
41mm fork; 5.1-in travel
Suspension / Rear
Single shock, adjustable preload; 5.1-in travel
Brakes / Front
Dual hydraulic disc, 282mm; ABS model available
Brakes / Rear
Hydraulic disc, 245mm; ABS model available
Tires / Front
120/70ZR17
Tires / Rear
180/55ZR17
Dimensions
L x W x H
82.1 in x 29.3 in x 42.9 in
Seat Height
31.7 in
Wheelbase
55.1 in
Rake (Castor Angle)
24.8°
Trail
3.5 in
Maximum Ground Clearance
5.5 in
Fuel Capacity
3.7 gal
Fuel Economy
58 mpg
Wet Weight
397 lb
Other
Warranty
1 Year (Limited Factory Warranty)
Features
Top Features:
- Compact, Torque-Rich Engine
The FZ-07 features a compact 689cc liquid-cooled, inline twin cylinder, DOHC engine with fuel injection. This engine provides a unique power character, combining outstanding low- to mid-range torque with strong high-rpm pulling power. - Crossplane Concept
This 2-cylinder engine features Yamaha’s “Crossplane Concept” 270 degree crank that provides linear torque development in response to the rider’s throttle input. The CP2 engine is also light, slim and compact and offers an excellent level of rider/machine communication. - Compact Frame Design
A lightweight diamond-type high tensile steel frame provides an optimized rigidity balance for light, agile handling and stability. The engine is a stressed member of the chassis, allowing a lighter, more compact main frame design. - Sporty Chassis Dimensions
The wheelbase, seat height, fuel tank width, rake and other dimensions are all set to work with the qualities of the compact twin-cylinder engine to achieve a sporty, light and neutral handling character. - Advanced Instruments
The compact full-LCD instrument panel includes a digital bar-type tachometer display with gear position indicator, digital speedometer, odometer, dual trip meters, fuel gauge, fuel reserve trip meter, clock, instant and average fuel consumption and a range of warning and indicator lights.
New for 2017:

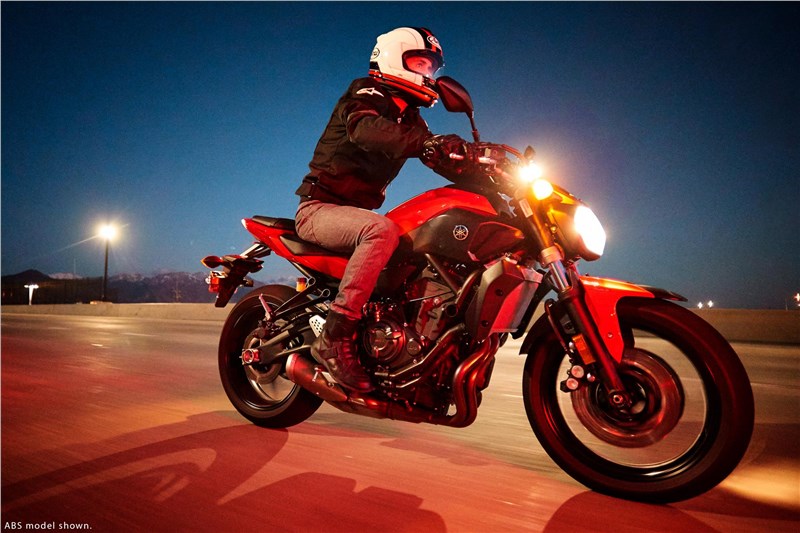

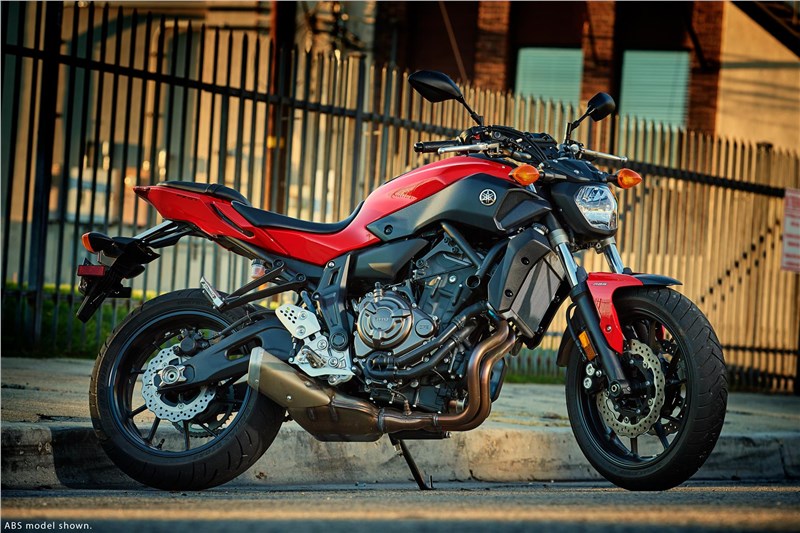

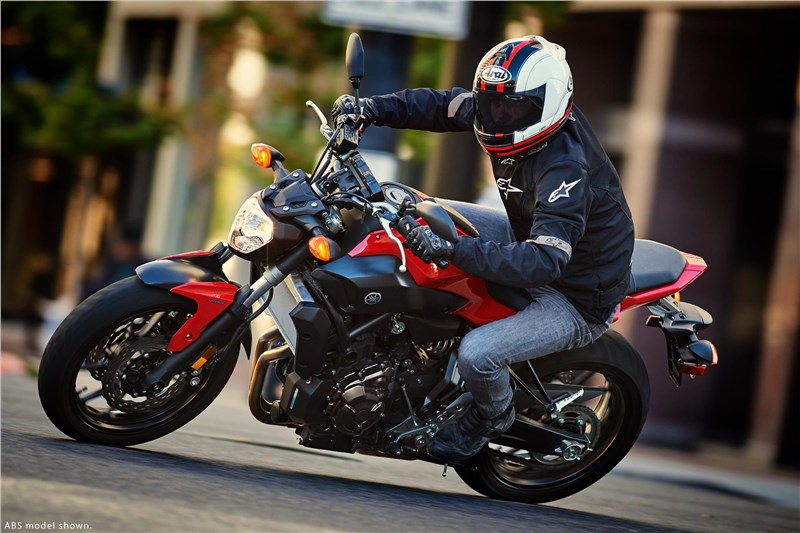

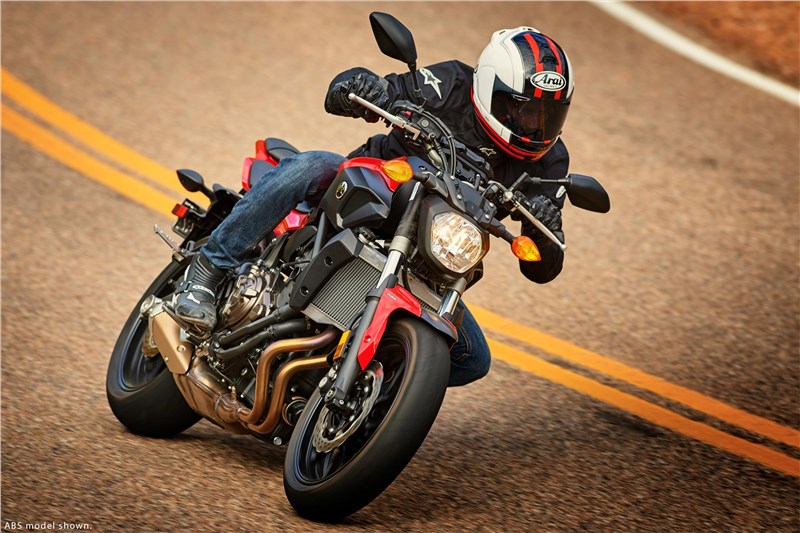

- New ABS-Equipped Model Available
For 2017, the FZ-07 offers the option of an ABS model to support the hydraulic disk braking system. The antilock braking system boosts rider confidence by preventing wheel lock-ups in reduced-traction conditions.
Engine:
- Advanced Twin Cylinder Engine
The FZ-07 features a compact 689cc liquid-cooled, inline twin cylinder, DOHC engine with fuel injection. This engine provides a unique power character, with outstanding low- to mid-range torque and very linear throttle response, combined with strong high-rpm pulling power. This motor develops 50 foot pounds of torque and is designed to maximize riding excitement in the real world. - Crossplane Concept
The 2-cylinder engine features Yamaha’s “Crossplane Concept” 270 degree crank that provides linear torque development in response to the rider’s throttle input. The CP2 engine is also light, slim and compact and offers an excellent level of rider/machine communication. - Compact Stacked Transmission
The six-speed transmission “stacks” the input/output shafts to centralize mass and to keep the overall engine size shorter front-to-back, which optimizes engine placement in the frame for outstanding weight balance. The transmission ratios are designed to bring out the best of the low- to mid-speed torque and excellent response characteristics while reducing the need for frequent shifts. - Refined Fuel Injection
Electronic fuel injection settings deliver a smooth throttle response to enhance riding enjoyment from open roads to the urban sprawl. The system delivers outstanding torque in the low- and mid-rpm range along with exciting acceleration in the upper rpm range.
Chassis/Suspension:
- Compact Frame Design
A lightweight diamond-type high tensile steel frame provides an optimized rigidity balance for light, agile handling and stability. The engine is a stressed member of the chassis, allowing a lighter, more compact main frame design. - Balanced Ergonomics
The riding position on the FZ-07 is one of the most important features, offering a balance between sporty handling and excellent rider comfort, thanks to its upright riding position. - Sporty Chassis Dimensions
The wheelbase, seat height, fuel tank width, rake and other dimensions are all set to work with the qualities of the compact twin-cylinder engine to achieve a sporty, light and neutral handling character. - Street-Focused Suspension
The front suspension features a 41mm fork with 5.1 inches of travel, is tuned to provide a balance of comfort and control ideal for the street. - Horizontal Monocross® Shock
The rear suspension features a link-type Monocross shock that provides 5.1 inches of rear travel. The shock is positioned below the seat and features an almost horizontal alignment, which helps make the chassis much more compact. The rear suspension includes spring preload adjustment, allowing the rider to tailor the settings to match rider weight or load. - Powerful Braking
Front brakes consist of dual wave-style 282mm discs with powerful 4-piston calipers. Rear braking is handled by a 245mm wave-style rear disc. The FZ-07 ABS model features an antilock braking system to boost rider confidence and prevent wheel lock-ups in reduced-traction conditions. - Lightweight Wheels
Lightweight cast-aluminum 10-spoke cast aluminum wheels reduce unsprung weight for great handling and suspension performance. The 17-inch front wheel is fitted with a 120/70ZR-17 radial tire and the rear wheel sports a wide 180/55ZR-17 radial tire.
Additional Features:
- Ergonomically Designed Fuel Tank
A slim 3.7 gallon fuel tank is both stylish and compact to provide excellent comfort and knee grip for rider confidence. - Advanced Instrumentation
The compact full-LCD instrument panel includes a digital bar-type tachometer display with gear position indicator, digital speedometer, odometer, dual trip meters, fuel gauge, fuel reserve trip meter, clock, instant and average fuel consumption and a range of warning and indicator lights. - New-Style Switchgear
The electric starter button is an integrated slide-type button that also incorporates the engine cut-off switch for a modern, high quality appearance.
All inventory listed is subject to availability and prior sale. Manufacturer's Suggested Retail Price (MSRP) if shown for a vehicle excludes set-up, freight, taxes, title, licensing or other dealer charges, and is subject to change. Individual prices may vary. Please request a quote for specific pricing.
