- 2017 Can-Am Defender MAX XT HD10
2017 Can-Am Defender MAX XT HD10
Pure Magnesium Metallic
MSRP: $19,099.00
Manufacturer: Can-Am
Condition: New
Description
KEY BASE FEATURES
-
Dual Versa-Pro Bench seats for six adults with adjustable driver seat
-
Dynamic Power Steering (DPS)
-
Visco Lok QE Front differential and lockable rear differential
-
27-in (68.6 cm) Maxxis Bighorn 2.0 tires on 14-in (35.6 cm) aluminum wheels
-
16.9 us gal (63.9 l) Storage capacity
-
ECO™ / Work / Normal driving modes
-
The Defender MAX XT comes equipped with many factory-installed accessories including 27 in. (68.6 cm) Maxxis Bighorn 2.0 tires mounted on 14 in. (35.6 cm) wheels and Dynamic Power Steering for better handling and steering.
Specifications
Engines
Engine
HD8
Type
50 hp, Rotax 799.9 cc, V-twin, liquid cooled
Fuel Delivery System
Intelligent Throttle Control (iTC™) with Electronic Fuel Injection (EFI)
Transmission
PRO-TORQ transmission with Quick Response System (QRS), high airflow ventilation and Electronic Drive Belt Protection Extra-L / H / N / R / P
Drive Train
True 4-mode traction system: 2x4 open rear dif., 2x4 locked rear dif., 4x4 open rear dif., 4x4 locked rear dif. Visco-Lok QE auto-locking front dif.
Driving Assistance
Electronic Hill Descent Control ECO / Work / Normal modes
Power Steering
Dynamic Power Steering (DPS)
Suspensions
Front Suspension
Double A-arm / 10 in. (25.4 cm) travel
Front Shocks
Twin tube gas charged shocks
Rear Suspension
TTA-HD with external sway bar / 10 in. (25.4 cm) travel
Rear Shocks
Twin tube gas charged shocks
Brakes
Front Brakes
Dual 220 mm ventilated disc brakes with hydraulic twin-piston calipers
Rear Brake
Dual 220 mm ventilated disc brakes with hydraulic twin-piston calipers
Tires/Wheels
Front Tires
Maxxis Bighorn 2.0 27 x 9 x 14 in. 68.6 x 22.9 x 35.6 cm
Rear Tires
Maxxis Bighorn 2.0 27 x 11 x 14 in. 68.6 x 27.9 x 35.6 cm
Wheels
14-in. black cast-aluminum
Dimensions/Capacities
Cage
ROPS-approved profiled cage. Certified ISO 3471 and OSHA.
Estimated Dry Weight*
1,861 lb (844.1 kg)
L x W x H (in)
152.5 x 64 x 77.3 in.
L x W x H (cm)
387.5 x 162.6 x 196.2 cm
Wheelbase
115.5 in. (294 cm)
Ground Clearance
11 in. (28 cm)
Cargo Box Dimensions
38 x 54.5 x 12 in. (96.5 x 138.4 x 30.5 cm)
Cargo Box Capacity
1,000 lb (454 kg) / California only: 600 lb (272.2 kg)
Tailgate Load Capacity
250 lb (113.4 kg)
Storage Capacity
Total: 16.9 gal (63.9 L) Under dash: 6 gal (22.8 L) Waterproof and removable box under passenger seat: 5.6 gal (21 L) Dash: 2 gal (7.7 L) Water-resistant and removable toolbox: 1.7 gal (6.3 L) Armrests and cup holders: 1.6 gal (6.1 L)
Towing Capacity
2,000 lb (907.2 kg)
Payload Capacity
1,750 lb (793.8 kg)
Fuel Capacity
10.6 gal (40 L)
Person Capacity
6
Warranty
Factory
6-months limited warranty
Factory
Up to 30 months B.E.S.T. coverage
Features
HEAVY-DUTY ROTAX V-TWIN ENGINES
- The Defender MAX XT package offers two very capable true-work powerplant options. The 72-hp Rotax HD10 V-Twin is specifically tuned for serious work but also offers 61 lb-ft torque and peak torque at lower RPM for optimal delivery for recreational use. The work-focused Rotax HD8 V-Twin delivers 50 hp and 50 lb-ft torque for tough tasks.
DYNAMIC POWER STEERING
- PRECISION-ENGINEERED HANDLING The specific Dynamic Power Steering (DPS) system is tuned for utility applications while also offering responsiveness for recreational usage. DPS improves steering feel in slow-speed working situations and in more technical terrain. It also is designed to offer less assistance at high speed and more assistance at low speed.
4-MODE TRACTION SYSTEM
- BETTER CONTROL The Visco-Lok QE† front differential combined with the lockable rear differential offer a 4-mode traction system providing multiple choices for varying terrain or tasks. Users, via a separate front-and-rear toggle switches, can select between a 2x4 open rear differential for tight turning and turf protection, a 2x4 lockable rear for improved 2WD traction, a 4x4 open rear for more maneuverability in rugged terrain and a 4x4 locked rear for maximum traction. The rear differential is gear-on-gear to the transmission for better response, no maintenance, better efficiency and fewer components.
ADVANCED DUAL VERSA-PRO BENCH SEATS
- PICK-UP INSPIRED SEATING The Dual VERSA-PRO bench seats offered on the XT package includes a truck-like flip-up passenger seats with a front sealed/waterproof under seat storage. It uses a reinforced seat cover with thicker vinyl and a special material finish to be more resistant and offer a premium look. The Defender MAX vehicles’ high-quality seat cover is designed to endure the everyday use on the farm, job site and trail. In addition, the XT driver seat features 3-in (8 cm) of adjustability (forward/rearward) for added comfort and better entrance / exit.
OPEN DASH WITH REMOVABLE TOOLBOX AND UNDER DASH STORAGE
- ADAPTABLE STORAGE The open dash design features a handy removable and water-resistant 1.7 gal (6.3 L) toolbox, an industry exclusive, to allow users to carefully carry tools and supplies their need in an organized manner. In addition, it includes 6 gal (23 L) of under dash storage with an enclosed pocket, perfect for stowing small essentials. Combined with the removable and waterproof under seat storage box, the Defender MAX proposes a total of 16.9 gal. (63.9 L) of storage solutions.
PROFILED CAGE
- CAB-READY The sturdy Profile cage (steel) is designed in tandem with the Can-Am Cab and genuine accessories to ensure the best fit-and-finish and seamless integration in the industry. To enhance visibility and improve entrance / exit of the cab, the front section of the cage was moved far forward.
27-IN MAXXIS† BIGHORN 2.0 TIRES ON 14-IN WHEELS
- PREMIUM WHEELS AND TIRES 14-in (35,6 cm) black cast-aluminum wheels with 27-in (68.6 cm) Maxxis Bighorn 2.0 tires
PREMIUM COLOR OPTIONS

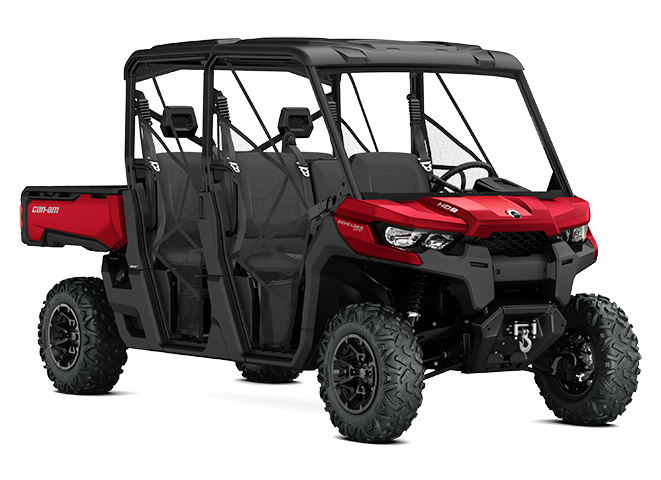

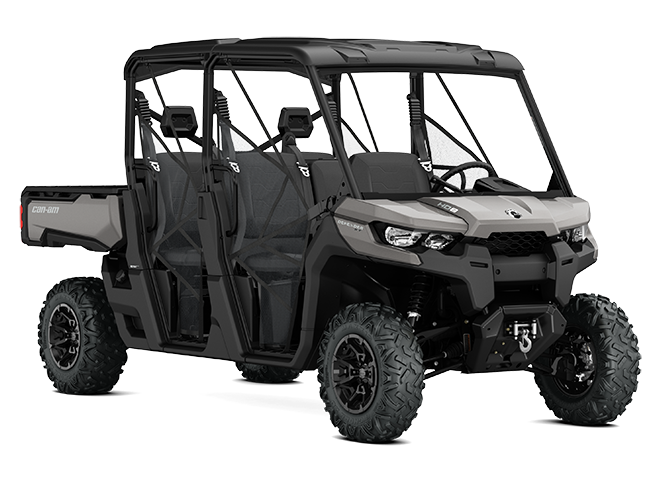

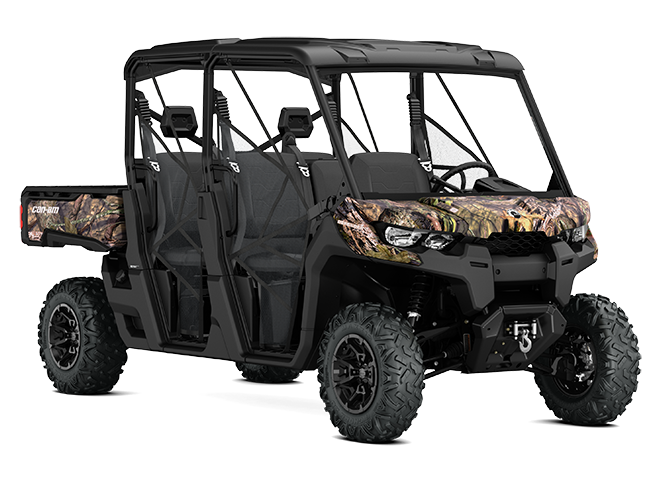

- PAINTED OR CAMO The Defender MAX XT vehicles are available with premium metallic paint or an exclusive water-dipped camouflage pattern, providing a first-class appearance. Choose from the painted Intense Red or Pure Magnesium Metallic or go stealth with the available Mossy Oak Break-Up Country Camo.
