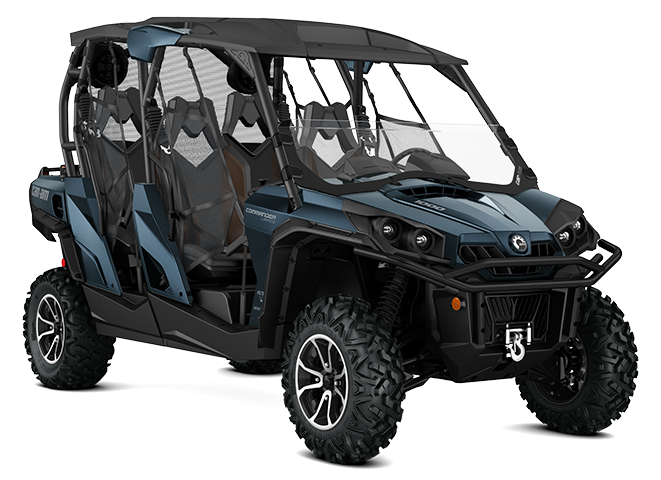

2017 Can-Am Commander MAX Limited

2017 Can-Am Commander MAX Limited
Midnight Blue
MSRP: $22,099.00
Manufacturer: Can-Am
Condition: New

Description

KEY BASE FEATURES


  • 85-hp Rotax 1000 V-Twin Engine
  • Tri-Mode Dynamic Power Steering

KEY PACKAGE FEATURES


  • FOX 2.0 PODIUM QS3† Piggyback shocks
  • Integrated Garmin® Montana® 650T Touchscreen GPS
  • Half Windshield & Premium Roof
  • Heavy-Duty Front Bumper, Bed Rails & Mudguards

No other side-by-side vehicle offers such a luxurious ride, with performance shocks and four-speaker sound system. Equipped with Tri-Mode DPS, Visco-Lok QE, and Rotax® power, this ride proves you don’t have to choose between luxury and performance.

Specifications

Engines

Type
85 hp, Rotax 976 cc, V-twin, liquid cooled
Fuel Delivery System
Intelligent Throttle Control (iTC™) with Electronic Fuel Injection (EFI)
Transmission
CVT, L / H / N / R / P, standard engine braking
Drive Train
Selectable 2WD / 4WD with Visco-Lok QE auto-locking front differential
Power Steering
Tri-Mode Dynamic Power Steering (DPS)


Suspensions

Front Suspension
Double A-arm with sway bar 10 in. (25.4 cm) travel
Front Shocks
FOX† 2.0 PODIUM QS3† Piggyback with compression adjustment
Rear Suspension
Torsional Trailing arm Independent (TTI) with external sway bar 10 in. (25.4 cm) travel
Rear Shocks
FOX† 2.0 PODIUM QS3† Piggyback with compression adjustment


Brakes

Front Brakes
Dual 220 mm ventilated disc brakes with hydraulic twin-piston calipers
Rear Brake
Dual 214 mm ventilated disc brakes with hydraulic single-piston calipers


Tires/Wheels

Front Tires
Maxxis Bighorn 2.0 27 x 9 x 14 in. (68.6 x 22.9 x 35.6 cm)
Rear Tires
Maxxis Bighorn 2.0 27 x 11 x 14 in. (68.6 x 27.9 x 35.6 cm)
Wheels
14-in. cast-aluminum


Dimensions/Capacities

L x W x H (in)
149.7 x 62.5 x 75.5 in.
L x W x H (cm)
380.2 x 158.7 x 191.8 cm
Wheelbase
106.1 in. (269.4 cm)
Ground Clearance
10 in. (25.4 cm)
Engine / Dry Weight*
1,566.4 lb (710 kg) *Commander MAX DPS dry weight shown
Rack Capacity
600 lb (272 kg) Dual-Level cargo box Upper level: 400 lb (181 kg) Lower level: 200 lb (91 kg)
Storage Capacity
Glove box: 4.5 gal (17.2 L) Center console: 0.3 gal (1.3 L)
Towing Capacity
1,500 lb (680 kg)
Fuel Capacity
10 gal (37.8 L)


Warranty

Factory
6-months limited warranty
Extended
Up to 30 months B.E.S.T. coverage


Features

85-HP ROTAX 1000 V-TWIN ENGINE

  • ULTIMATE PERFORMANCE Liquid-cooled, 8-valve Rotax 976 cc V-twin pumps out a class-leading 85 horsepower, yet is refined thanks to EFI and iTC. The liquid-cooled, single overhead cam power plant features 4 valves per cylinder, fed by a 54-mm Bosch‡ throttle body and 2 sophisticated VDO Siemens‡ fuel injectors.

TRI-MODE DYNAMIC POWER STEERING

  • PRECISION-ENGINEERED HANDLING The Tri-Mode Dynamic Power Steering (DPS) offers three levels of rider-adjustable steering assistance that can be adapted to match the terrain while also reducing kickback to the steering.The amount of assistance varies with the vehicle's speed to adjust the steering input effort to a comfortable level.

FOX 2.0 PODIUM QS3† PIGGYBACK SHOCKS

  • HIGH-PERFORMANCE SHOCKS These new high-performance front and rear FOX 2.0 PODIUM QS3 shocks allows riders to easily dial-in their suspension setup tool-free. Through a 3-position knob, suspension can be easily adjusted depending on the terrain or your riding preference. Turn the knob to position 1 to get a smooth compression optimizing comfort and performance for the long rides, or go to position 3 to get that high-performance race-ready suspension.

INTEGRATED GARMIN® MONTANA® 650T TOUCHSCREEN GPS

  • ON-THE-GO NAVIGATION Can-Am partnered with leading GPS manufacturer Garmin to equip the Commander LIMITED with an integrated touch-screen Montana 650t GPS. Features 5 MP camera, preloaded topographic maps, 4-in color display, barometric altimeter, 3-axis electronic compass, wireless data sharing, and more.

HALF WINDSHIELD & PREMIUM ROOF

  • STYLISH PROTECTION The half windshield offers stylish protection without the airflow restriction of a full windshield. Plus, our two-piece hard roof is designed to be durable and attractive, while letting you customize your vehicle as you like it. Fast, easy, and toolless installation and removal.

All inventory listed is subject to availability and prior sale. Manufacturer's Suggested Retail Price (MSRP) if shown for a vehicle excludes set-up, freight, taxes, title, licensing or other dealer charges, and is subject to change. Individual prices may vary. Please request a quote for specific pricing.
