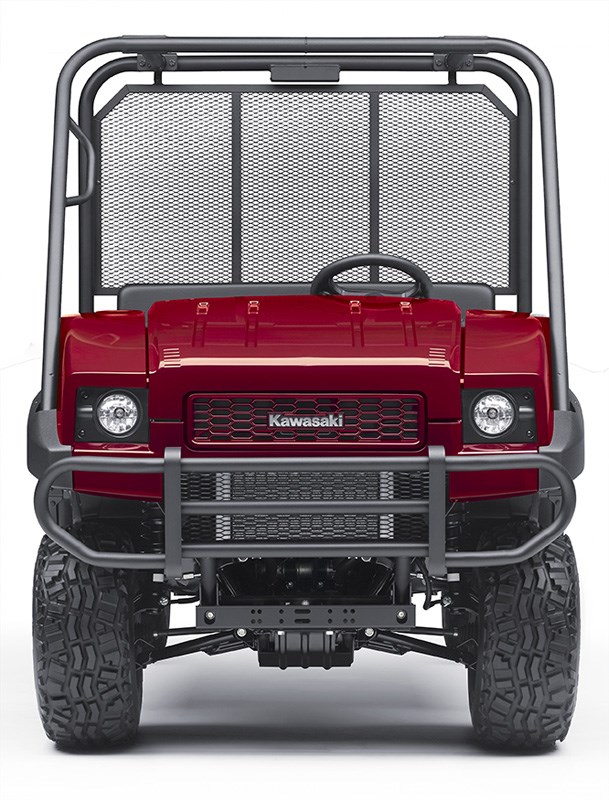

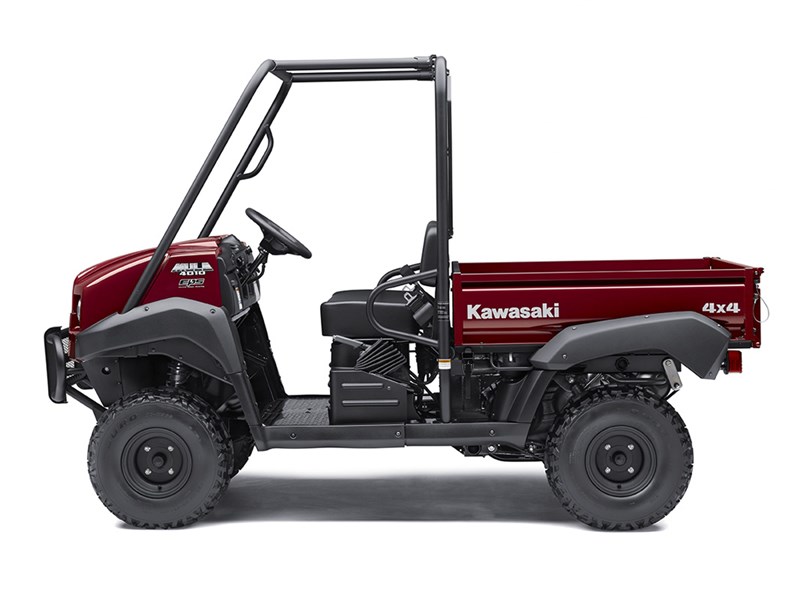

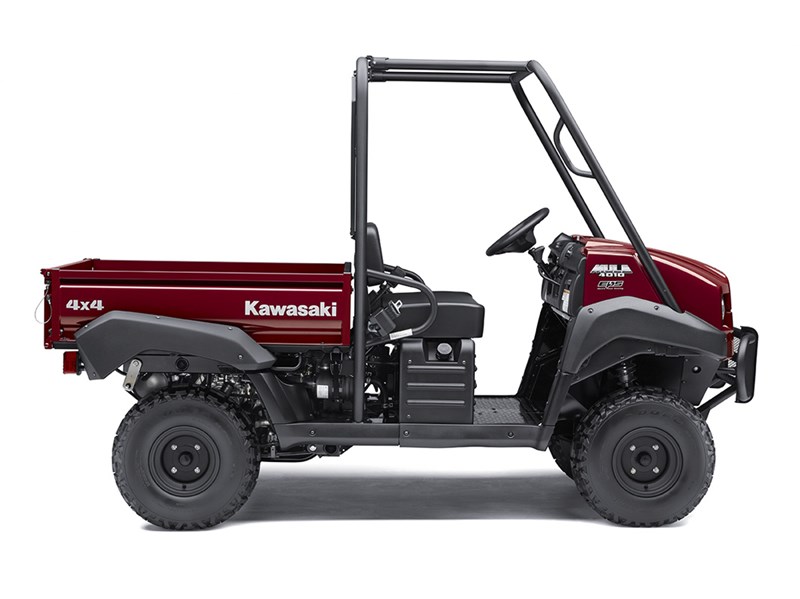

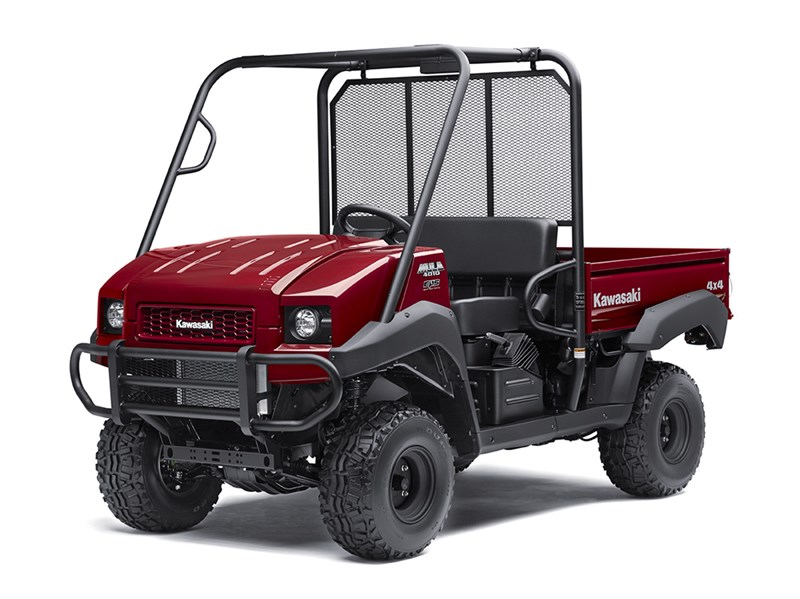

2017 Kawasaki MULE™ 4010 4x4

2017 Kawasaki MULE™ 4010 4x4
DARK ROYAL RED
MSRP: $10,199.00
Manufacturer: Kawasaki
Condition: New

Description

THE MULE™ 4010 4X4 SIDE X SIDE IS A POWERFUL MID-SIZE TWO-PASSENGER WORKHORSE THAT’S CAPABLE OF BOTH PUTTING IN A HARD DAY OF WORK AS WELL AS TOURING AROUND THE PROPERTY.

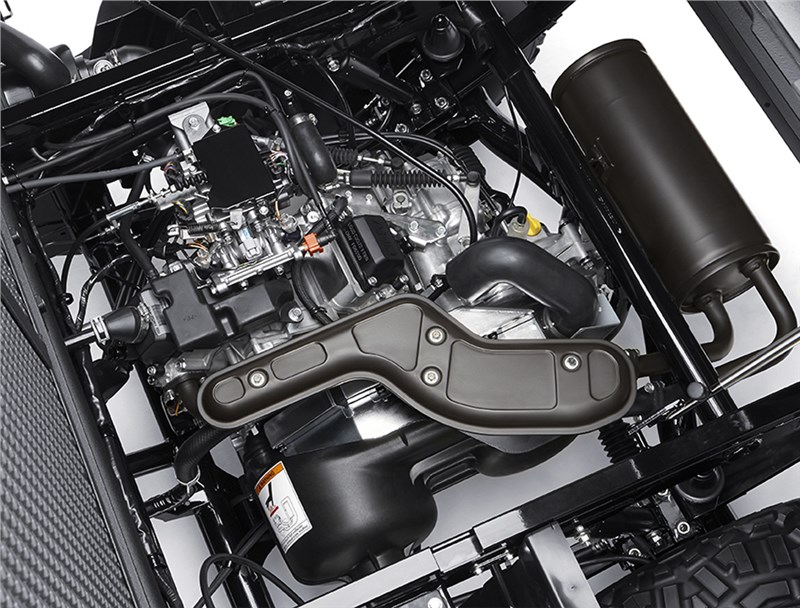

  • 617cc fuel-injected, V-twin engine produces reliable performance
  • Selectable 2WD or 4WD with dual-mode rear differential
  • Continuously Variable Transmission (CVT) w/ HI/LO ranges, neutral and reverse
  • Up to 1,200-lbs. towing capacity and 800-lbs. cargo bed capacity
  • Electric Power Steering (EPS) provides all-day driving comfort
  • Backed confidently by the industry-leading Kawasaki STRONG 3-Year Limited Warranty

Specifications

POWER

Engine
4-stroke, 2-cylinder, OHV, 90° V Liquid-cooled
Displacement
617cc
Bore x Stroke
76.0 x 68.0mm
Compression ratio
10.3:1
Maximum Torque
34.7 lb-ft @ 2500 rpm
Fuel System
DFI® w/ 34mm Mikuni throttle body
Ignition
Digital electronic
Transmission
Continuously Variable Transmission (CVT) with high and low range, forward, and reverse, 2WD/4WD
Final Drive
Shaft, selectable 4-wheel drive with dual-model differential
Alternator Output (max)
23 amp


CAPABILITY

Front Suspension / Wheel Travel
Independent, MacPherson strut/3.9 in
Rear Suspension / Wheel Travel
Semi-independent, De Dion axle with leaf springs and shocks/2.8 in
Front Tires
23x11-10 tubeless
Rear Tires
23x11-10 tubeless
Steering
Electric power assisted rack-and-pinion
Front Brakes
4-wheel hydraulic drums, sealed
Rear Brakes
4-wheel hydraulic drums, sealed
Ground Clearance
6.9 in
Fuel Capacity
6.3 gal
Turning Radius
11.2 ft
Roll Over Protective Structure (ROPS)
Structure meets ROPS requirements for wheeled tractors under SAE J1194, 7.1.1, 7.1.2, and 7.5 and meets the FMVSS 216 Roof Crush resistance requirement

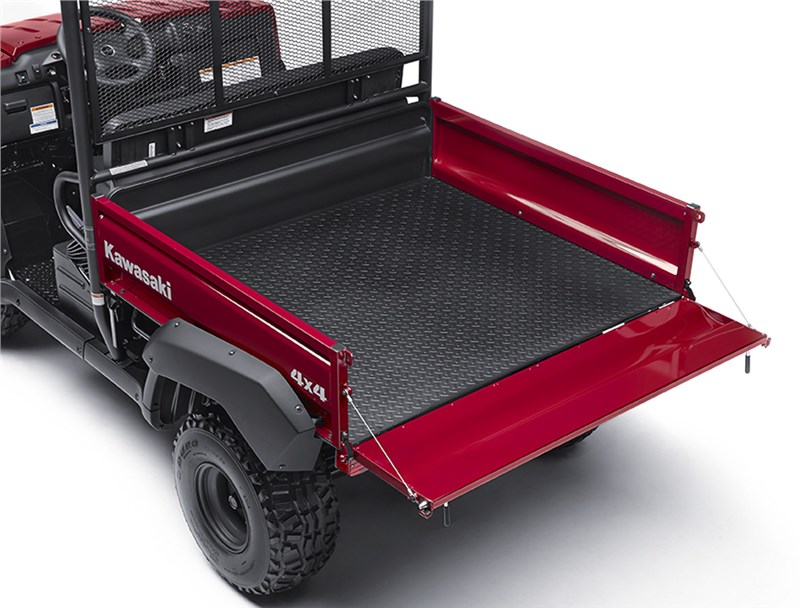

Cargo Bed Dimensions (LxWxH)
46.3 x 51.6 x 11.4 in
Cargo Bed Capacity
800 lb
Load Capacity
1330 lb
Seating Capacity
2
Towing Capacity
1200 lb
Lighting
(2) 35 W sealed-beam headlights, (2) 5/21 W tail/brake lights


DETAILS

Frame Type
Steel tube ladder type
Overall Length
116.7 in
Overall Width
62.0 in
Overall Height
75.8 in
Curb Weight
1432.6 lb**
Wheelbase
73.6 in
Instruments
Parking brake warning light, coolant temperature warning light, horn, 12V DC outlet
Color Choices

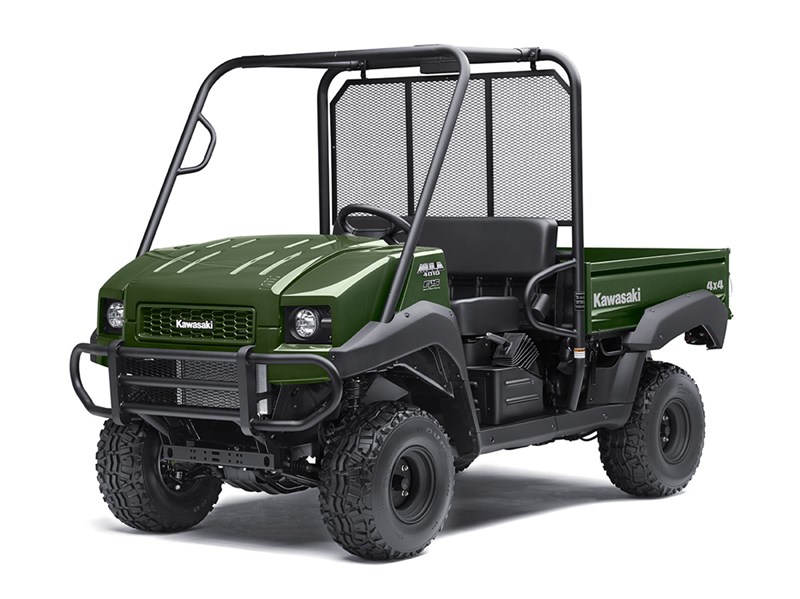

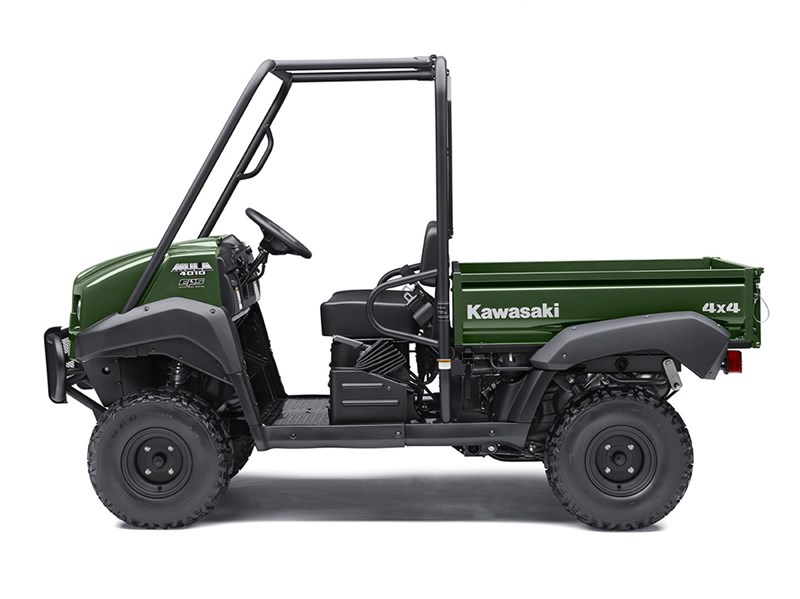

Timberline Green, Dark Royal Red
Warranty
Kawasaki Strong 3-Year Limited Warranty
Kawasaki Protection Plus™ (optional)
12, 24 or 36 months


All inventory listed is subject to availability and prior sale. Manufacturer's Suggested Retail Price (MSRP) if shown for a vehicle excludes set-up, freight, taxes, title, licensing or other dealer charges, and is subject to change. Individual prices may vary. Please request a quote for specific pricing.
