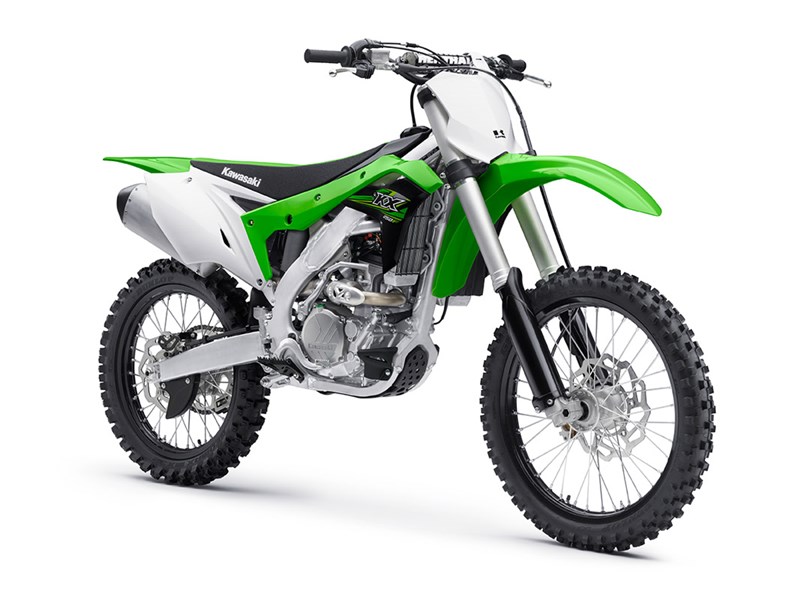

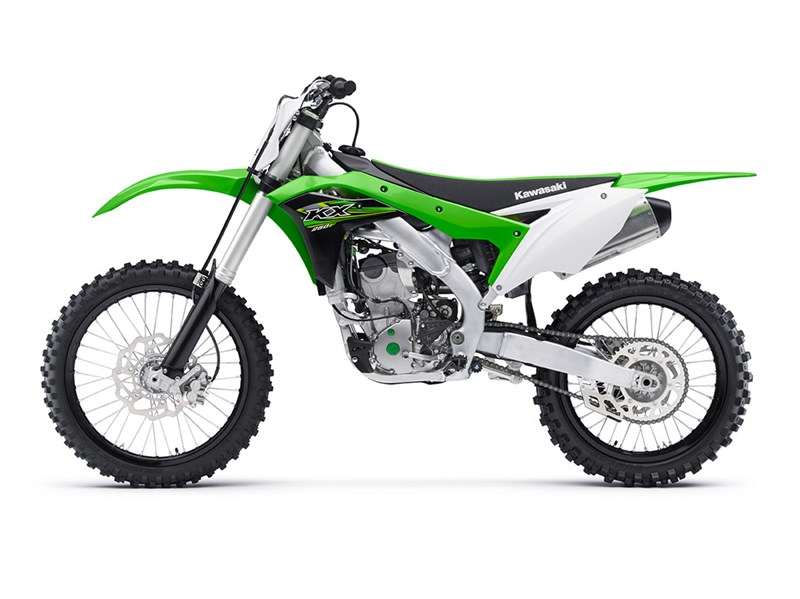

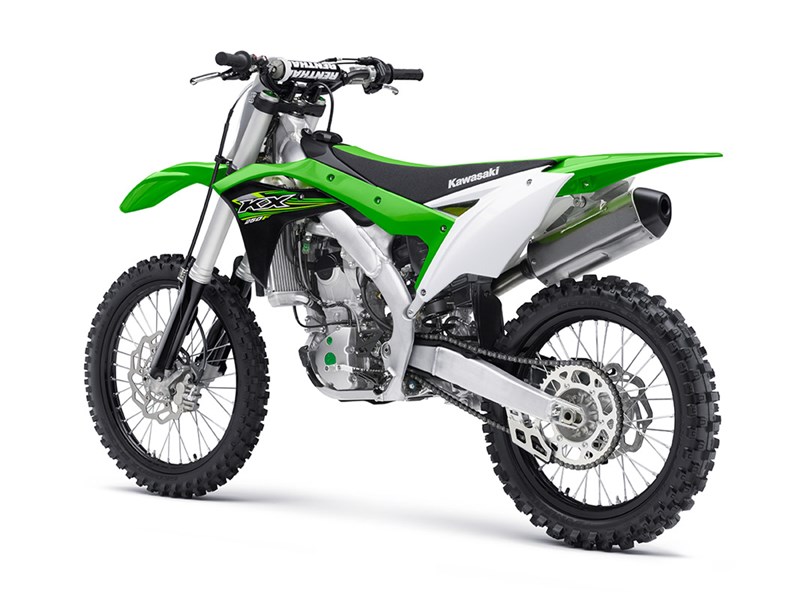

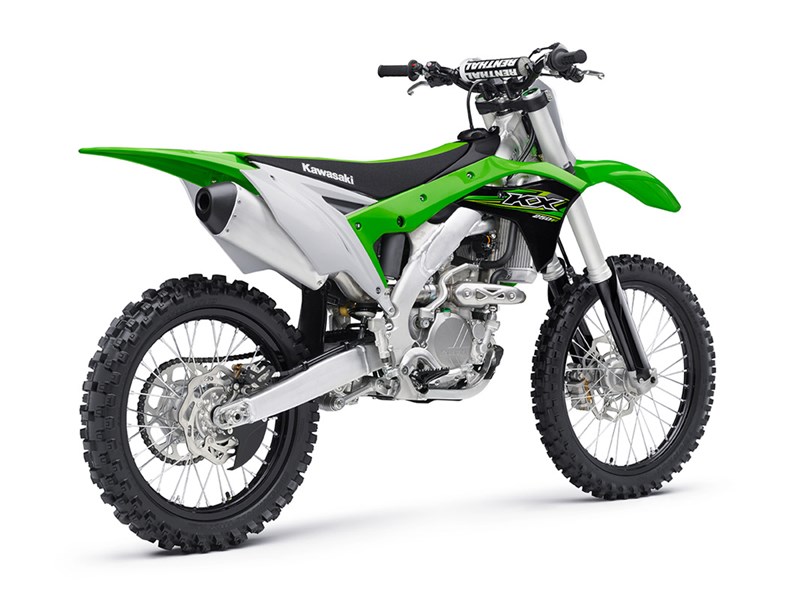

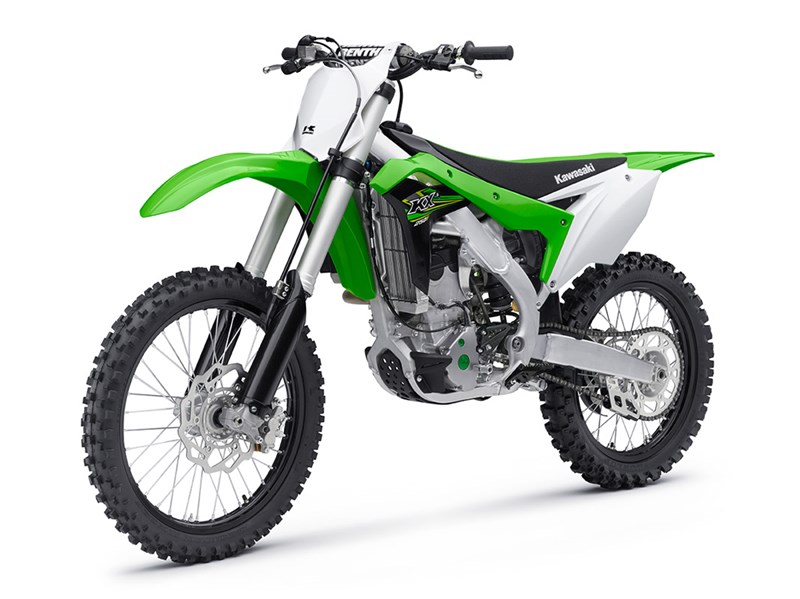

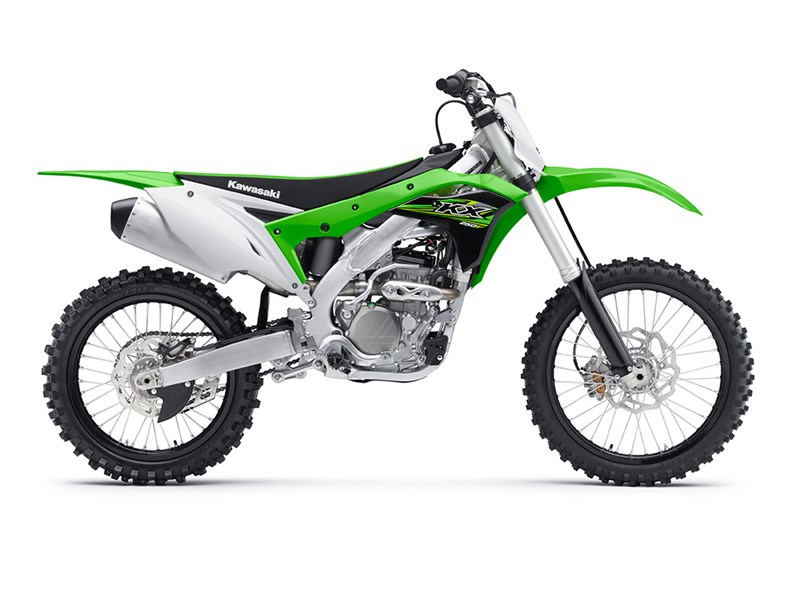

2017 Kawasaki KX™250F

2017 Kawasaki KX™250F
MSRP: $7,749.00
Manufacturer: Kawasaki
Condition: New


With more Supercross and Pro Motocross wins than all other OEMs combined, no one else comes close to the championship-winning power and race-ready technology of the Kawasaki KX™250F. The tradition continues in the all-new 2017 KX250F, The Bike That Builds Champions. Are you ready for the next level of championship-proven performance?



4-stroke, 1-cylinder, DOHC, water-cooled
Bore x Stroke
77.0 x 53.6mm
Compression ratio
Fuel System
DFI® w/43mm Keihin throttle body and dual injectors
Digital DC-CDI
5-speed, return shift
Final Drive


Front Suspension / Wheel Travel
48mm inverted Showa SFF telescopic fork with 40-way spring preload adjustability and 22-position compression and 20-position rebound damping adjustability/12.2 in
Rear Suspension / Wheel Travel
Uni-Trak® linkage system and Showa shock with 19-position low-speed and 4-turns high-speed compression damping, 22-position rebound damping, fully adjustable spring preload/12.2 in
Front Tire
Rear Tire
Front Brakes
Single semi-floating 270mm Braking petal disc with dual-piston caliper
Rear Brakes
Single 240mm Braking petal disc with single-piston caliper


Frame Type
Aluminum perimeter
28.5°/5.0 in
Overall Length
85.4 in
Overall Width
32.3 in
Overall Height
49.8 in
Ground Clearance
12.6 in
Seat Height
37.0 in
Curb Weight
229.9 lb**
Fuel Capacity
1.69 gal
58.1 in
Color Choices
Lime Green



  • The lighter weight and increased power of the 2017 KX™250F motorcycle starts with a completely new engine. Get an inside look at the innovative design features.
  • Downdraft intake design and more upright engine orientation with revised cylinder offset increase overall power
  • Lighter weight race-team-inspired bridged-box bottom piston to optimize combustion efficiency and plateau cylinder honing to help reduce friction
  • Rear fender with under seat intake channels ensure clean airflow
  • Revised airbox and intake duct for increased air volume resulting in more power
  • Innovative dual-injector system utilizes a downstream injector below the throttle valve, and a second upstream injector located near the airbox. Together, they contribute to more efficient filling of the cylinder to maximize power
  • More upright engine orientation and repositioned intake duct allow for optimal air intake. The downdraft style routing improves cylinder-filling efficiency, contributing to increased engine power New downdraft injector grows from four holes to eight for a wider fuel spray, delivering stronger low- to mid-range power for quicker acceleration Lighter weight 43mm throttle body ensures sharp, responsive power
  • New exhaust header with integrated resonator maximizes throttle response and enhances midrange power


  • Slimmer, lighter aluminum perimeter frame contributes to razor sharp cornering and superior handling while a flatter seat and new bodywork allow easier rider movement.
  • NEW SLIMMER, LIGHTER FRAME • New aluminum perimeter frame is narrower and lighter for championship-winning agility • Revised overall balance improves front wheel traction for razor-sharp cornering ability • Radiators are rotated inward for narrower width between shrouds, allowing easier rider movement
  • AGGRESSIVE BODYWORK • New bodywork is lighter weight • Flatter tank and seat allow greater freedom of movement • Fuel tank has increased capacity, going from 1.6 to 1.7 gallons • Features Kawasaki’s first in-mold graphics that are more durable


  • The best way to ensure peak performance is to fine-tune your KX™ to fit you. The KX™250F can be adjusted to suit a wide range of riders.
  • SHOWA SEPARATE FUNCTION FORK - TYPE 2 • Advanced separate function fork design separates spring and damping functions for light weight and fully adjustable performance • New combination of a lighter inner-tube design to fine-tune rigidity, firmer spring rate, revised valving and oil level, reduces pitching effect over braking bumps, increases cornering stability and maintains sharp turn-in capability • Improved fork action provides sharp cornering and smooth, predictable front-end action through bumps
  • ERGO-FIT™ ADJUSTABILITY • The adjustable handlebar mounts provide a choice of 4-positions (35mm range of adjustment) enabling the rider to set-up their ideal riding position. Factory-style Renthal handlebar and handlebar pad come standard
  • ERGO-FIT™ FOOTPEGS • Two-position adjustable footpegs help reduce knee angle when seated • Footpegs allow the rider to adjust center of gravity by 5mm


  • The KX™250F features multiple advanced ignition and fuel-mapping systems for precise adjustability.
  • KX FI CALIBRATION KIT (HANDHELD) • Kawasaki’s handheld FI controller eliminates need for computer at the track • Adjust fuel mapping and ignition settings with factory precision • Controller enables you to store up to 7 preset maps for different tracks and conditions
  • DFI® COUPLERS • Select a coupler to access 1 of the 3 different preset engine maps • Alter the engine characteristic with easyplug-and-play technology • Standard, hard and soft terrain setting options
  • INDUSTRY-FIRST LAUNCH CONTROL MODE • Technology derived from Kawasaki factory race team • Activate with push of a button • Precise ignition timing helps optimize traction, minimizing slippage • Functions in first and second gears, automatically disengages in third gear

All inventory listed is subject to availability and prior sale. Manufacturer's Suggested Retail Price (MSRP) if shown for a vehicle excludes set-up, freight, taxes, title, licensing or other dealer charges, and is subject to change. Individual prices may vary. Please request a quote for specific pricing.
