Champion Yellow
MSRP: $1,999.00
Manufacturer: Suzuki
Condition: New
Description

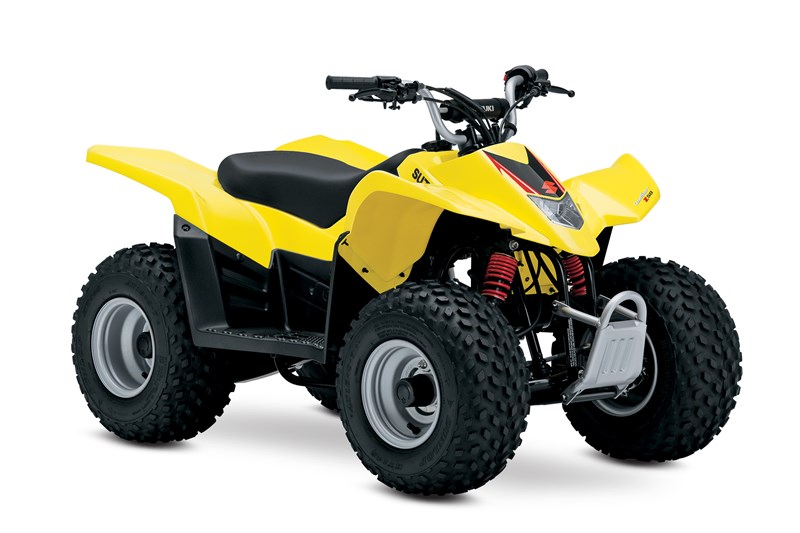

The 2017 QuadSport Z50 is the entry level four-stroke ATV that’s ideal for riders starting in the sport. With an emphasis on safety and adult control, this Quad features a throttle limiter to control engine output, a tether switch to remotely shut off the ignition, and a keyed main switch that prevents unauthorized use. Adjustable hand controls, an automatic transmission, full floorboards, and a low seat height make sure that beginning riders (age 6 and older) will enjoy active convenience and control. To sum it up, the QuadSport Z50 is packed with quality, safety and style making it the perfect choice for younger adventurers!
Specifications
ENGINE
Engine
49cc, 4-stroke, air-cooled, single cylinder
Bore x Stroke
36.0 x 48.6 mm (1.417 x 1.913 in.)
Compression Ratio
8.4: 1
Fuel System
MIKUNI VM13, single carburetor
Starter
Electric & Recoil
Lubrication
Wet sump
DRIVE TRAIN
Transmission
Automatic
Transmission
Dry shoe, automatic, centrifugal type
Driven Wheels
2WD
Final Drive
Chain, D.I.D. 415, 82 links
CHASSIS
Suspension Front
Independent, swing axle, coil spring, oil damped
Suspension Rear
Swingarm type, coil spring, oil damped
Brakes Front
Drum brake
Brakes Rear
Drum brake
Tires Front
AT16 × 8-7, tubeless type x 2
Tires Rear
AT16 × 8-7, tubeless type x 2
Fuel Tank Capacity
2.6 L (0.7 US Gal.)
Color
Champion Yellow
ELECTRICAL
Ignition
Electronic Ignition (CDI)
Headlight
N/A
Tail Light
N/A
DIMENSIONS
Overall Length
1270 mm (50.0 in.)
Overall Width
760 mm (29.9 in.)
Overall Height
765 mm (30.1 in.)
Wheelbase
830 mm (32.7 in.)
Ground Clearance
120 mm (4.7 in.)
Seat Height
535 mm (21.1 in.)
Curb Weight
79 kg (174 lbs.)
WARRANTY
Warranty
12-month, unlimited mileage, limited warranty*
Warranty
*Extensions available through Suzuki Extended Protection (SEP)
Features
KEY FEATURES
- Child-size (Y-6) controls for easy operation
- QuadSport Z50 is designed for adult-supervised riders age 6 and older - includes many features that make learning to ride a safe and fun experience
- A keyed ignition switch lets grown-ups decide when the action begins and ends
- Simple screw-type throttle limiter allows adult supervisors to limit the maximum power delivery to suit the rider's ability
- Remote tether-type engine-stop switch allows adult supervisors to instantly shutdown the engine when necessary
- Easy electric starting system plus standard backup recoil starter
- Smooth-running CVT automatic transmission provides easy operation and allows the rider to focus on riding instead of shifting
- Competition-inspired bodywork and Suzuki Champion Yellow color scheme
ENGINE FEATURES
- Compact 49cc 4-stroke, single-cylinder, air-cooled engine has been designed for durability and low maintenance
- Efficient, push-rod valve train lets the engine operate quietly. Easy-access oil filter and filler cap simplifies service
- Clean-burning four-stroke engine easily achieves Environmental Protection Agency (EPA) emissions regulations
- Spark-arrester equipped muffler is environmentally friendly, yet has a pleasant exhaust note
- Suitable capacity 0.75 gallon (2.8 L) fuel tank for extended operating range combines with vacuum fuel petcock that automatically stops fuel flow when the engine’s not running
CHASSIS FEATURES
- Strong, high-rigidity steel frame is sturdy and compact
- Independent swingarm front suspension with coil-over shock absorbers and a single-shock rear suspension provide long wheel travel for a smooth, comfortable ride
- Large diameter semi-sealed front drum brakes and single fully sealed rear drum brake provide strong braking performance
- Modern styling with full floorboards and a big Quad look, plus brilliant yellow bodywork with black and red graphics
- Faux headlamp on front fender mimics the sporty look of the QuadSport Z400
- One-piece 7-inch wheels with tubeless tires provide a smooth comfortable ride
- This machine has a low seat height of just 21.1 inches for easy mounting and confidence-inspiring operation
- Suzuki T-shaped seat similar to the QuadSport Z400 for smooth weight transition and a comfortable ride, and is easy to remove to simplify maintenance. Black seat cover complements the ATV’s graphics package
OTHER FEATURES
- 12-month limited warranty is double the length of most other youth ATVs
- A variety of Genuine Suzuki Accessories for QuadSport owners are available including a large selection of Suzuki logo apparel
- Rider Minimum Age: 6 Years Old
