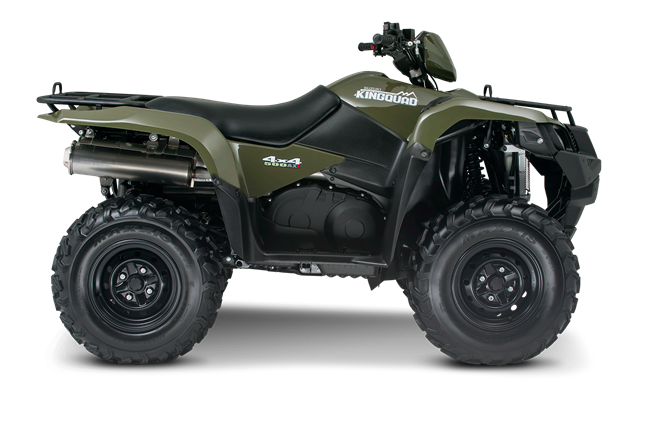

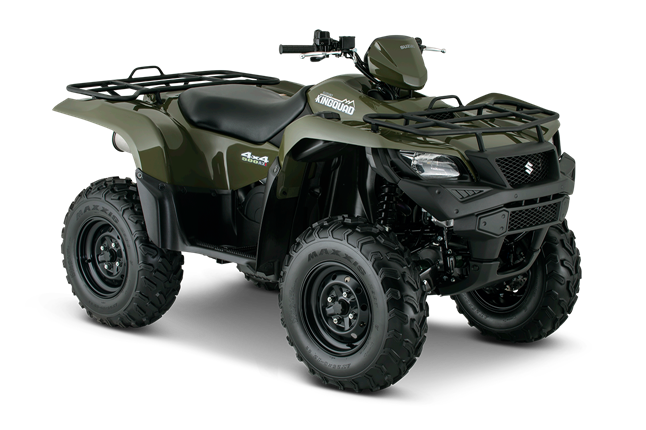

Terra Green
MSRP: $7,399.00
Manufacturer: Suzuki
Condition: New
Description
In 1983, Suzuki introduced the world's first 4-wheel ATV. Today, Suzuki ATVs are everywhere. From the most remote areas to the most everyday tasks, you'll find the KingQuad powering a rider onward. Across the board, our KingQuad lineup is a dominating group of ATVs.
With a long list of technologically advanced features, the 2017 Suzuki KingQuad 500AXi is equally at home on tough trails or helping you take on tough jobs. Its EFI equipped engine, utilizing a multi-hole fuel injector, provides exceptional performance throughout the powerband with a strong mid- to high-end punch. The KingQuad’s advanced chassis lets you float over rough obstacles with ease while still being able to haul or tow what you need to get the job done.
Specifications
ENGINE
Engine
493cc, 4-stroke, liquid-cooled, single cylinder, OHC
Bore x Stroke
87.5 mm (3.445 in) x 82.0 mm (3.228 in)
Compression Ratio
10.0 : 1
Fuel System
Suzuki fuel injection
Starter
Electric
Lubrication
Wet Sump
DRIVE TRAIN
Transmission
CVT (V-belt), with high/low-range and reverse
Driven Wheels
2WD, 4WD & 4WD Differential Lock
Final Drive
Shaft drive
CHASSIS
Suspension Front
Independent, double wishbone, coil spring, oil damped with five-way preload adjustable shock absorbers
Suspension Rear
Independent, double wishbone, coil spring, oil damped with five-way preload adjustable shock absorbers
Brakes Front
Disc brakes, twin rotors
Brakes Rear
Sealed oil-bathed multi-disc
Tires Front
AT25 x 8-12, tubeless type x 2
Tires Rear
AT25 x 10-12, tubeless type x 2
Fuel Tank Capacity
17.5 L (4.6 US gallons)
Color

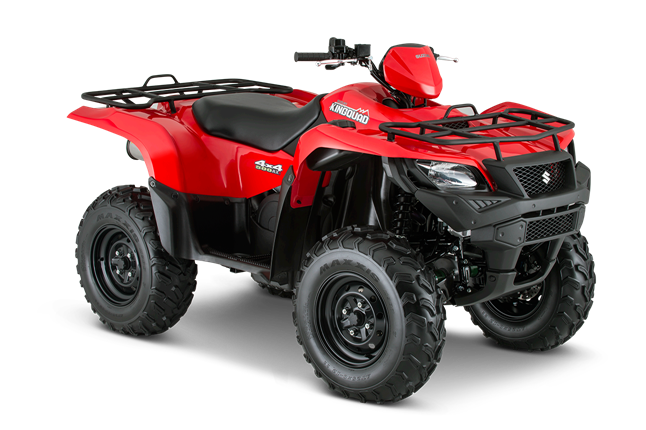

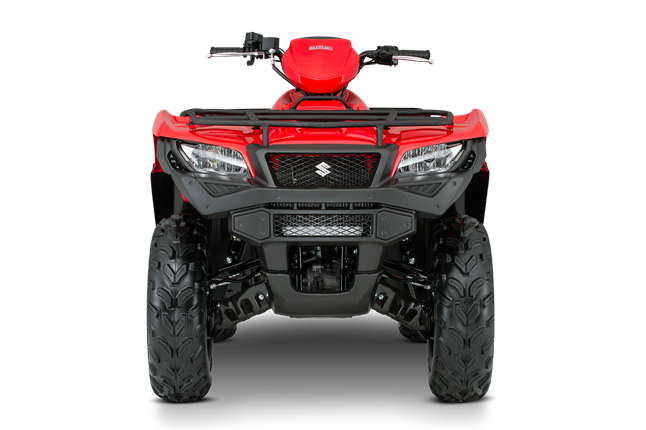

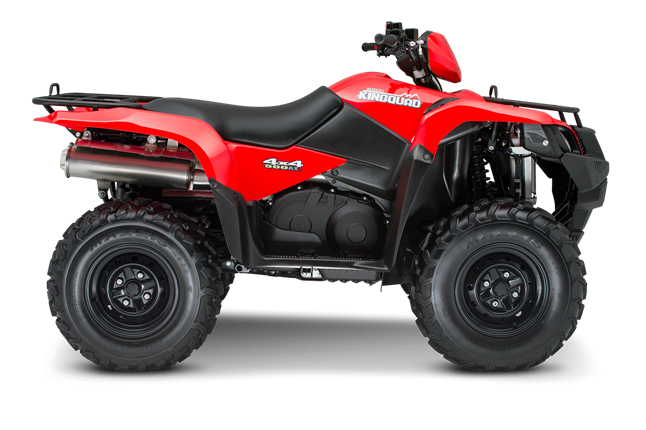

Terra Green and Flame Red
Dimensions
Overall Length
2115 mm (83.3 in)
Overall Width
1210 mm (47.6 in)
Overall Height
1245 mm (49.0 in)
Wheelbase
1285 mm (50.6 in)
Ground Clearance
260 mm (10.2 in)
Seat Height
920 mm (36.2 in)
Curb Weight
305 kg (672 lbs)
ELECTRICAL
Ignition
Electronic ignition (CDI)
Headlight
12V 35/35W (HS1) × 2
Tail Light
12V 21/5W
WARRANTY
Warranty
12-month, unlimited mileage, limited warranty*
Extensions
* Extensions available through Suzuki Extended Protection (SEP)
Features
ENGINE FEATURES
- The powerful 493cc, SOHC, single-cylinder, liquid-cooled, four-stroke engine produces a wide powerband with strong top-end power
- Precise Suzuki fuel injection system and twin iridium spark plugs ensure easy starting, excellent throttle response, great fuel efficiency, and reduced emissions
- Its cylinder is canted forward for a low center of gravity resulting in reduced engine height and lower seat height. The engine also features a counterbalancer shaft for smooth operation
- The compact 4-valve cylinder head has large intake valves and straight intake ports for superb cylinder charging efficiency
- A lightweight aluminum cylinder uses SCEM (Suzuki Composite Electrochemical Material) coating for excellent heat transfer and ring sealing resulting in superb combustion chamber efficiency
- High capacity aluminum radiator with large diameter, thermostatically controlled cooling fan provides stable engine operating temperature
TRANSMISSION FEATURES
- The QuadMatic™ CVT-type automatic transmission provides versatility and convenience with a fender-mounted gate-type shifter for high/low range selection. Its advanced engine-braking system minimizes free-wheeling with the throttle off and helps control the vehicle during steep descents
- A compact torque-sensing limited-slip front differential offers potent traction plus light steering. A differential-lock system provides serious four-wheel-drive traction
- Handlebar-mounted push-button controls permit easy selection between 2WD, 4WD and differential-lock 4WD. An override button on the left handlebar can be used to override the normal speed limiter when stuck in the mud.
- An override button on the left handlebar can be used to override the normal speed limiter when stuck in the mud
CHASSIS FEATURES
- Independent double A-arm front suspension (7.1 inches of wheel travel) includes large diameter shock absorbers with 5-way spring preload adjustment
- Fully independent, A-arm/I-beam rear suspension with 7.9 inches of wheel travel includes large diameter shock absorbers with 5-way spring preload adjustment and large diameter rear sway-bar
- Dual hydraulic front disc brakes plus a sealed, multi-plate rear brake system. The rear brake’s clutch-type design provides high durability, reduced unsprung weight, and low-maintenance
- High traction 25-inch CARLISLE tires are mounted on heavy-duty steel wheels
- Suzuki's plush T-shaped seat delivers rider mobility during spirited or difficult terrain riding
- Polyethylene skid plates provide protection with minimal resistance over rocks and rough terrain. Durable plastic guards protect the front and rear half shafts
UTILITY/CONVENIENCE FEATURES
- Winch-ready mounts and wire conduit makes winch installation simple
- Instrumentation includes LCD readouts for speedometer, odometer, twin tripmeter, hour meter, clock, fuel level, driving range and drive mode. LED indicators for high, low, neutral, reverse and 2WD/4WD and differential-locked 4WD. LED cautions for fuel injection and engine temperature
- Distinctively-styled twin 30W halogen headlights plus a compact 5/21W tail light and brake light
- High-output, three-phase charging system feeds an 18-amp maintenance-free battery for abundant power for easy starting and accessory use
- The large 4.6 gallon (17.5 L) fuel tank is positioned for a low center-of-gravity. It includes a vacuum-operated petcock and a ratchet-style filler cap
- A large 2.8 liter water resistant front storage compartment includes an easy access screw-on cap
- The rugged steel-tube cargo racks have wrinkle paint finish for durability and scratch resistance
- 12-month limited warranty
- A variety of Suzuki Genuine Accessories are available including winches, windshield, front and rear bumpers, snow plow, aluminum skid pans, rack extensions, utility box and more
SPECIAL
- Minimum Operator Age: 16 Years Old
