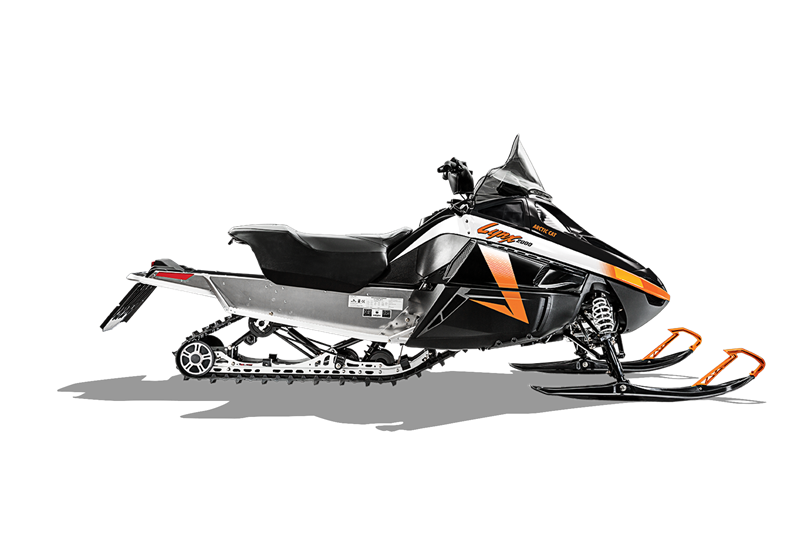

2017 Arctic Cat LYNX 2000 ES

2017 Arctic Cat LYNX 2000 ES
Black
MSRP: $6,599.00
Manufacturer: Arctic Cat
Condition: New

Description

  • 2000 ENGINE

    The value‑focused 565cc, 2‑stroke, fan‑cooled carbureted engine is powerful, durable and efficient. Push‑button engine reverse is a favorite in the utility segment. This engine is revered around the world for its simplicity and dependability.

  • ACT DIAMOND DIRECT DRIVE WITH ARCTIC CAT CLUTCHES

    The ride-proven ACT™ Diamond Direct Drive™ planetary gearcase produces efficient transfer of power from engine to track, delivering a smooth ride. The Arctic Cat® clutch system engages at lower RPMs without sacrificing top speed.

  • AWS VII FRONT SUSPENSION WITH HYDRAULIC TWIN TUBE SHOCKS

    Arctic Cat’s legendary AWS™ VII front suspension utilizes strong, durable A-arms, providing great handling and cornering. Hydraulic twin tube shocks smooth out the chatter, mile after mile, for an even more comfortable ride.

  • SLIDE-ACTION REAR SUSPENSION WITH ARCTIC CAT HYDRAULIC TWIN TUBE SHOCKS

    The SLIDE-ACTION Rear Suspension™ brings race-day technology to everyday riding. Our U-shaped slot fits over a fixed shaft to allow a crucial half-inch of sliding movement. As the rear transfer blocks are engaged, the free-acting front arm follows the terrain, keeping your skis firmly planted over bumps, and during aggressive cornering and acceleration. This significant detail controls ski lift during acceleration. Arctic Cat® hydraulic twin tube shocks smooth out the chatter, mile after mile, for an even more comfortable ride.

  • DIGITAL ANALOG GAUGE

    Choose between digital and analog speed and tachometer readouts. There’s also an odometer, two trip meters, engine hour meter, reverse indicator and warning lights.

  • ELECTRIC START

    This is just the thing for consistent, reliable starting. A simple turn of the key is all you need to get up and running.

  • PUSH-BUTTON ENGINE REVERSE

    With just a push of a button, you can reverse the direction of the engine smoothly, quickly and easily. What’s more, this technology also reduces the machine’s weight.

  • 129-IN. CHALLENGER TRACK WITH 1-IN. LUGS

    The 129″ Challenger track is made for performance touring, offering less bite through the corners. The 1″ lugs offer you the traction you need on the trail, and are optimal for both cruising speeds and opening up the throttle as you explore the hard-packed wilderness.

  • PROCROSS - 6 SKIS

    This trail ski’s 6″ width delivers excellent handling on hardpack snow and good flotation in loose snow. A stiff, deep keel provides positive cornering in all conditions.

  • 10" MID-HEIGHT WINDSHIELD

    The perfect mix of protection and comfort, keeping any spray from slowing you down when the going gets really fast.

Specifications

ENGINE

Type
2-Stroke
Discplacement (cc)
565
Cooling
Fan
Cylinders
2
Bore x Stroke (mm)
73.8x66
Lubrication
Oil injection
Ignition
Digitally Controlled CDI
Engine Stator Output
210 Watts
Fuel Delivery
2 x VM 34 Carburetors
Exhaust
Tuned pipe and muffler
Fuel Capacity gal. (l)
10.8 (40.88)
Oil System Capacity qt. (l)
4.2 (9.97)
Coolant System Capacity qt. (l)
N/A
Minimum Octane
87


SUSPENSION

Front Suspension
AWS VII with sway bar
Ski Shocks
Hydraulic twin tube shocks
Front Travel in. (cm)
9.5 (24.13)
Rear Suspension
SLIDE-ACTION Rear Suspension, Torque-Sensing Link rear arm and adjustable torsion springs
Front Track Shock
Hydraulic twin tube
Rear Track Shock
Hydraulic twin tube
Rear Travel in. (cm)
13.5 (34.29)


DIMENSIONS

Chassis Overall Length in. (cm)
118 (299.72)
Chassis Overall Width in. (cm)
48 (121.92)
Chassis Overall Height in. (cm)
49 (124.46)
Track Type
Challenger
Track Width in. (cm)
15 (38.1)
Track Length in. (cm)
129 (327.66)
Lug in. (cm)
1.0 (2.54)
Pitch in. (cm)
2.52 (6.40)
Pitch in. (cm)
43 (109.22)
Ski Type / Width in. (cm)
ProCross - 6 (15.24)
Runner Type
Dual split runner w/carbide


INSTRUMENTATION

Type of Gauge
Digital Analog
Speedometer
Digital/Analog
Tachometer
Digital/Analog
Odometer
Digital
Fuel
Digital
Oil
Indicator Light
Coolant
NA
Clock
Digital
Battery Voltage
NA
Altimeter
NA
Hours
Digital


KEY ITEMS

12V Outlet
NA
3,000 lb.(1 360.8 kg) Winch with Receiver Mount
NA
Actuator Switches (2)
NA
Adjustable Backrest
NA
Auxiliary Gas Tank 4.3 gal.(16.28 l)
NA
Backup Light
NA
Beacon Light
NA
Electric Start
Standard
Floodlight
NA
Front Bumper
Standard
Goggle Holder
Accessory
Hand & Thumb Warmers
Standard
Hand Guards
Accessory
HCR-type Heat Exchanger
NA
Headlights
Dual halogen 4-bulb
Heated Drivers Seat
NA
Heated Passenger Seat
NA
Heavy-Duty Rear Bumper
NA
Ice Scratchers
Accessory
Light Bar
NA
Lightweight Brake Disc
NA
Locking Detachable Storage Cases
NA
Mirrors
Accessory
Mountain Strap
Accessory
Passenger Footrests
NA
Passenger Hand Warmers
NA
Passenger Seat
NA
Passenger Wind Deflectors
NA
Radiator
NA
Rear Accessory Outlet
NA
Rear Rack
Accessory
Rear Storage
Accessory
Rocker Switch
NA
Roller Fairlead & 50 ft.(15.24 m) of Steel Cable
NA
Safety Flag
NA
Seat
Trail
Side Panel Wind Deflectors
NA
Sno Pro Brake Lever
NA
Steering
Fixed with adjustable handlebar
Tether Switch
Accessory
Tow Hitch
Accessory
Tunnel Flare
NA
Tunnel Rails
NA
Underseat Storage
NA
Visor Plug-ins
Accessory
Windshield
10 in. (25.4 cm) Mid-height


POWERTRAIN

Drive Clutch
Arctic 6 post (rpm sensing)
Driven Clutch
10.75 in. dia. Arctic (roller cam)
Drive System
ACT Diamond Direct Drive
Brakes
Axial master cylinder hydraulic brake / disc on driveshaft
Clutch Calibration ft. (m)
0-5,000 (0-1,524)
Gearing
57/63
Chain Pitch
NA
Reverse
Push-button Engine


All inventory listed is subject to availability and prior sale. Manufacturer's Suggested Retail Price (MSRP) if shown for a vehicle excludes set-up, freight, taxes, title, licensing or other dealer charges, and is subject to change. Individual prices may vary. Please request a quote for specific pricing.
