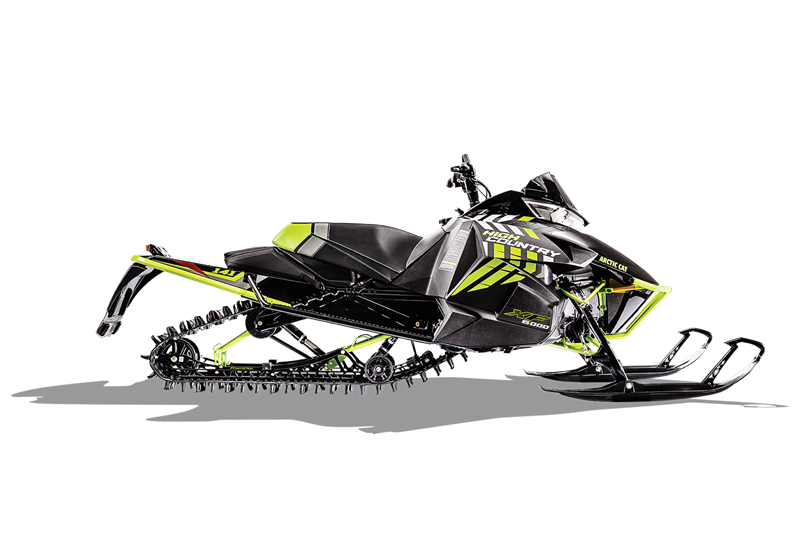

2017 Arctic Cat XF 6000 HIGH COUNTRY LIMITED ES

2017 Arctic Cat XF 6000 HIGH COUNTRY LIMITED ES
Black
MSRP: $12,999.00
Manufacturer: Arctic Cat
Condition: New

Description

  • 6000 ENGINE

    This 599cc 2-stroke DSI is the unmodified version of the engine that’s been launching Team Arctic down the racetrack since 2012. This quick-revving, 125-class horsepower C-TEC2™ power mill is the product of a world-class engine assembly plant — ours. Whether you’re riding a ZR® an M or a Crossover, the 6000 is one of the most satisfying engines found in a snowmobile.

  • ARCTIC DRIVE SYSTEM WITH TEAM RAPID RESPONSE DRIVE AND TEAM RAPID RESPONSE BOSS DRIVEN CLUTCHES

    The Arctic Drive System™ features a lightweight magnesium chaincase. The design incorporates a large TEAM® driven clutch and TEAM drive clutch. By eliminating belt skid, these clutches reduce temperature and transfer more power to the track. In addition to their incredible strength, these clutches are known for their easy and precise tuning.

  • ARCTIC MOUNTAIN FRONT SUSPENSION WITH FOX FLOAT 3 EVOL SHOCKS

    The Arctic Mountain front suspension packs the essentials. The ProClimb-7 mountain ski is 7″ at the tip, tapering to 6.5″ at the center to enhance your carving. Single-post, angled-out spindles help you shed some sled weight while maximizing quality and strength. The premium FOX FLOAT® 3 EVOL shocks offer lightweight design, simplified adjustment and premium bump control features of the FLOAT 3, but with improved resistance to bottoming and reduced cornering “roll” thanks to the added EVOL air chamber.

  • FLOAT-ACTION REAR SUSPENSION WITH FOX FLOAT 3 EVOL FRONT AND FOX FLOAT 3 EVOL R REAR SHOCKS

    The FLOAT-ACTION Rear Suspension features revised rails that shed 1.25 pounds, giving optimal suspension travel and a better ride quality in all conditions. The FLOAT-ACTION suspension incorporates mountain-specific geometry, delivering consistent track tension. The FOX FLOAT® 3 EVOL ski and front track shocks, plus the FOX FLOAT 3 EVOL R rear track shocks, are engineered as a lightweight design, with the simplified adjustment and premium bump control features of the FLOAT 3 shocks, but with the improved resistance to bottoming and reduced cornering “roll” that comes with the added EVOL air chamber.

  • DELUXE DIGITAL GAUGE

    The information you need while riding, beautifully packaged. That’s the best way to describe this dual LCD gauge. There’s an odometer, trip meter, speedometer, engine hour, clock, fuel level indicator, battery voltage, coolant temperature, reverse and warning lights.

  • 12V OUTLET

    Need to charge your phone or another electrical device? We’ve got you covered. Just plug in and power up while you ride.

  • ELECTRIC START

    This is just the thing for consistent, reliable starting. A simple turn of the key is all you need to get up and running.

  • HAND & THUMB WARMERS

    Say goodbye to cold hands. Our hand and thumb warmers provide plenty of warmth and comfort on long rides.

  • 141-IN. POWER CLAW TRACK WITH 2.25-IN. LUGS

    This lightweight, 141″ single-ply track with a 3″. pitch rips through the deep stuff. Stagger-set, curved-forward paddle towers won’t fold over. 2.25″ lugs let you go deep with confidence.

  • GOGGLE HOLDER

    Warm, dry goggles are as near as our goggle holder. The heat from the engine dries your goggles as you ride. Also works for masks and gloves.

  • PROCLIMB FRONT BUMPER

    Made of lightweight aluminum, this bumper adds both protection and style. Plus it’s scratch resistant and has a rugged powder-coat finish.

  • PROCLIMB - 7 SKIS

    The new ProClimb-7 mountain ski is 7″ at the tip, tapering to 6.5″ at the center. The wider skis enhance your carving abilities and prevent unintended downhill braking. A wider ski damper featuring a longer axle and bolt increases lateral adjustability.

  • TELESCOPING WITH ADJUSTABLE MOUNTAIN HANDLEBAR

    Simple one-hand adjustment allows you to quickly choose your handlebar height within a 4″ range for the way you ride. Raise it up when you’re in powder or lower it on the trail.

  • MOUNTAIN STRAP

    Want to shift your weight? This puts the extra leverage you need right in your hands.

  • 5.5" RACE-HEIGHT WINDSHIELD

    With its sporty look and enough protection for the track, this windshield’s low profile allows you to see everything as you lead the pack.

Specifications

ENGINE

Type
2-stroke
Displacement (cc)
599
Cooling
Liquid
Cylinders
2
Bore x Stroke (mm)
73.8 x 70
Lubrication
Electronic injection
Ignition
Digitally Controlled CDI
Engine Stator Output
325 Watts
Fuel Delivery
Dual stage injection
Exhaust
APV with tuned pipe, pipe sensor and stainless steel muffler
Fuel Capacity gal. (l)
11.7 (44.29)
Oil System Capacity qt. (l)
3.6 (3.41)
Coolant System Capacity qt. (l)
6.2 (5.87)
Minimum Octane
91


SUSPENSION

Front Suspension
Arctic Mountain Suspension (AMS) with sway bar
Ski Shocks
FOX FLOAT 3 EVOL
Front Travel in. (cm)
9 (22.86)
Rear Suspension
FLOAT-ACTION Rear Suspension
Front Track Shock
FOX FLOAT 3 EVOL
Rear Track Shock
FOX FLOAT 3 EVOL R
Rear Travel in. (cm)
14.5 (36.83)


DIMENSIONS

Chassis Overall Length in. (cm)
131 (322.74)
Chassis Overall Width in. (cm)
45.5-49.5 (115.57-125.73)
Chassis Overall Height in. (cm)
50 (127)
Track Type
Power Claw
Track Width in. (cm)
15 (38.1)
Track Length in. (cm)
141 (358.14)
Lug in. (cm)
2.25 (5.72)
Pitch in. (cm)
3.00 (7.62)
Ski Stance in. (cm)
38.5-42.5 (97.79-107.95) Adjustable
Ski Type / Width in. (cm)
ProClimb - 7 (17.78)
Runner Type
Single runner w/carbide


INSTRUMENTATION

Type of Gauge
Deluxe Digital
Speedometer
Digital
Tachometer
Digital
Odometer
Digital
Fuel
Digital
Oil
Indicator Light
Coolant
Digital/Indicator Light
Clock
Digital
Battery Voltage
Digital
Altimeter
Digital
Hours
Digital


KEY ITEMS

12V Outlet
Standard
Electric Start
Standard
Front Bumper
ProClimb
Goggle Holder
Standard
Hand & Thumb Warmers
Standard
Hand Guards
Accessory
Headlights
Dual halogen 2-bulb
Ice Scratchers
Accessory
Lightweight Brake Disc
Accessory
Mirrors
Accessory
Mountain Strap
Standard
Rear Rack
Accessory
Rear Storage
Tunnel Bag
Seat
Mountain
Side Panel Wind Deflectors
Accessory
Sno Pro Brake Lever
Accessory
Steering
Telescoping with adjustable mountain handlebar
Tether Switch
Accessory
Tow Hitch
Accessory
Tunnel Flare
Accessory
Visor Plug-ins
Accessory
Windshield
5.5 in. (13.97 cm) Race-height


POWERTRAIN

Drive Clutch
TEAM Rapid Response
Driven Clutch
TEAM Rapid Reaction BOSS
Drive System
Arctic Drive System (ADS)
Brakes
Race radial master cylinder hydraulic brake
Clutch Calibration ft. (m)
0-5,000 (0-1,524)
Gearing
19/50
Chain Pitch
90
Reverse
Push-button Engine


All inventory listed is subject to availability and prior sale. Manufacturer's Suggested Retail Price (MSRP) if shown for a vehicle excludes set-up, freight, taxes, title, licensing or other dealer charges, and is subject to change. Individual prices may vary. Please request a quote for specific pricing.
