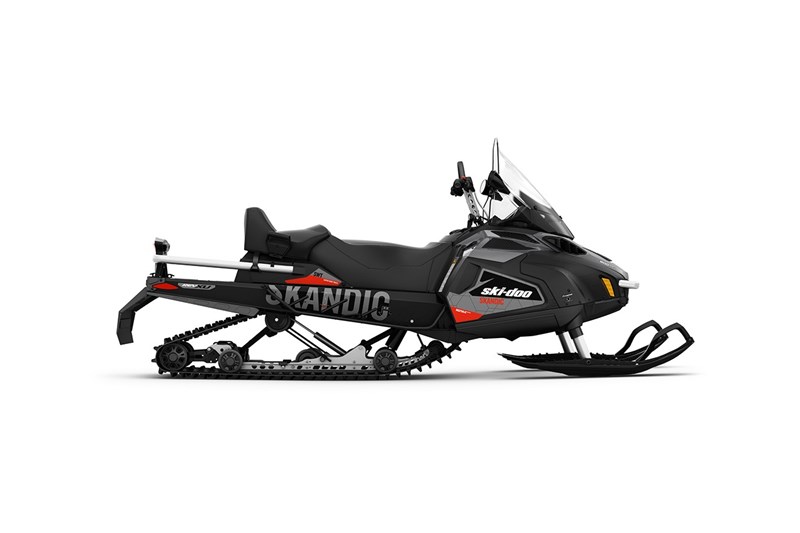

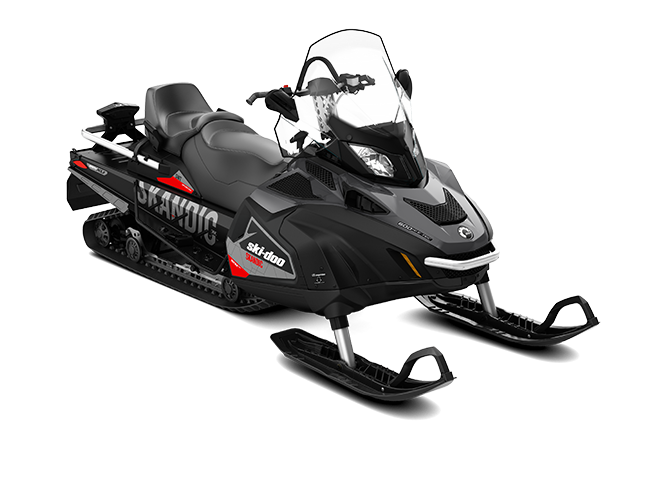

2017 Ski-Doo SKANDIC SWT 900 ACE

2017 Ski-Doo SKANDIC SWT 900 ACE
Tactical Grey & Black
MSRP: $12,749.00
Manufacturer: Ski-Doo
Condition: New

Description

The ultimate utility sled with the industry's largest 24 x 154 in. (61 x 391 cm) track. Incredible flotation and traction mixes with maneuverability, dependability and comfort.

  • RUGGED AND CAPABLE

    This base architecture and design sets the standard for light weight, durability and handling. Flexible riding position enables comfort sitting and standing. Driver can stretch their legs due to forward foot position. Cab and bottom pan shapes are optimized for flotation and snow flow. Styling is rugged and dynamic.

  • SPECIALIZED FOR DEEP SNOW

    Industry-exclusive telescopic front suspension enables a large, flat belly pan for exceptional deep snow flotation.

  • SPORT-UTILITY VERSATILITY

    Our sport-utility suspension. Refined ride both on trail and on top of powder. Articulated rail to maximize deep snow traction in reverse or locked out when towing.

  • GET IT IN GEAR

    Take off from a stop smoothly, even with a heavy load, thanks to two forward and one reverse gears. Inline 2-1-N-R pattern on right side and can be safely shifted from High to Low while on the fly.

  • SUPER FLOTATION DEVICE

    The industry’s largest footprint (24 x 156 in./ 61 x 396 cm) provides unmatched traction and helps the Skandic SWT achieve the lowest ground pressure in snowmobiling.

  • MID-POWER, FULL-FEATURES

    This inline triple four-stroke uses Rotax Advanced Combustion Technology to deliver 90 hp with excellent fuel economy (up to 21.8 mpg, 10,8 L/ 100 km)* and ultra low maintenance. Proven Intelligent Throttle Control (iTC) throttle-by-wire technology opens up a new world of customization and drivability options. Includes three shift-on-the-fly driving modes (Sport, Standard, ECO), Learning Key feature and optional finger throttle operation. *Data based on internal engineering trail testing on a MXZ TNT in its ECO mode

  • DEEP SNOW CONTROL

    Single-keel with excellent sidehilling bite, thanks to thin outer edges. Narrow and thin, yet stiff. Shorter behind its complementary spindle with flat tail for easier counter-steering and sidehilling.

  • INFORMATION HUB

    Smartly-styled analog speedometer and tachometer plus LCD digital information screen.

Specifications

Rotax Engine

ENGINE
900 ACE
ENGINE DETAILS
Liquid-cooled, four-stroke D.O.H.C., dry sump
CYLINDERS
3
DISPLACEMENT
899.0 cc / 54.9 in.³
BORE
74 mm / 2.9 in.
STROKE
69.7 mm / 2.7 in.
MAXIMUM ENGINE SPEED
7250 RPM
CARBURATION
EFI
RECOMMENDED FUEL TYPE
Regular unleaded
MINIMUM OCTANE
87
FUEL TANK
45 liters / 12 gallons
OIL TANK CAPACITY
3.3 liters / 3.5 quarts


Powertrain

ENGINE
900 ACE
DRIVE CLUTCH TYPE
eDrive™ 2
DRIVEN CLUTCH TYPE
QRS
ENGAGEMENT
2200 RPM
SMALL SPROCKET NUMBER OF TEETH
1st gear = 3.86:1 ratio
LARGE SPROCKET NUMBER OF TEETH
2nd gear = 1.98:1 ratio
DRIVE SPROCKET NUMBER OF TEETH
8
DRIVE SPROCKET DIAMETER
183 mm / 7.2 in.
BRAKE SYSTEM
Hydraulic with braided stainless-steel brake line


Dry Weight



Dimensions

VEHICLE OVERALL LENGTH
3240 mm / 127.5 in.
VEHICLE OVERALL WIDTH
1076mm / 42.4 in.
VEHICLE OVERALL HEIGHT
1330 mm / 52.3 in.
SKI STANCE
900 mm / 35.4 in.
SKI OVERALL LENGTH
1040 mm / 41 in.
TRACK NOMINAL WIDTH
600 mm / 24 in.
TRACK NOMINAL LENGTH
3968 mm / 156 in.
TRACK PROFILE HEIGHT
31.8 mm / 1.25 in.


Suspension

FRONT SUSPENSION
LTS
FRONT SHOCK
Motion Control
FRONT SUSPENSION MAX. TRAVEL
150 mm / 6 in.
REAR SUSPENSION
SC™-5U
CENTER SHOCK
Motion Control
REAR SHOCK
HPG™
REAR SUSPENSION MAX. TRAVEL
239 mm / 9.4 in.


Key Items

FRAME
REV-XU™
SKIS
Pilot™ DS 2 with 10-inch liner
SEATING
2-up modular with underseat storage
HANDLEBAR
Painted steel with J-hooks / Grab handle
RISER BLOCK HEIGHT
205 mm / 8 in.
ELECTRIC START
Standard
REVERSE
Mechanical
HEATED THROTTLE LEVER
Standard
HEATED GRIPS
Standard
GAUGE
Analog with display
BACKREST
Standard
MIRRORS
Standard
WINDSHIELD
580 mm / 23 in.
RUNNER
Square 5/16
CARBIDE CONFIGURATION
102 mm / 4 in. at 90°
HITCH
Tongue Type


All inventory listed is subject to availability and prior sale. Manufacturer's Suggested Retail Price (MSRP) if shown for a vehicle excludes set-up, freight, taxes, title, licensing or other dealer charges, and is subject to change. Individual prices may vary. Please request a quote for specific pricing.
