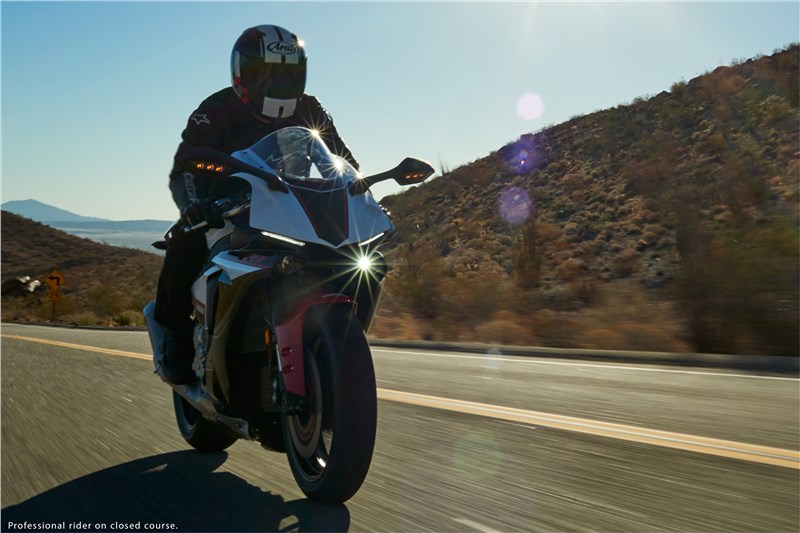

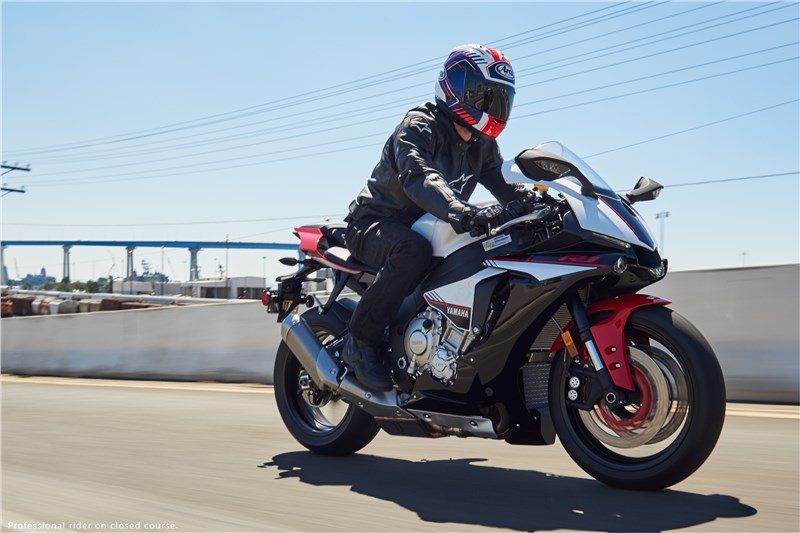

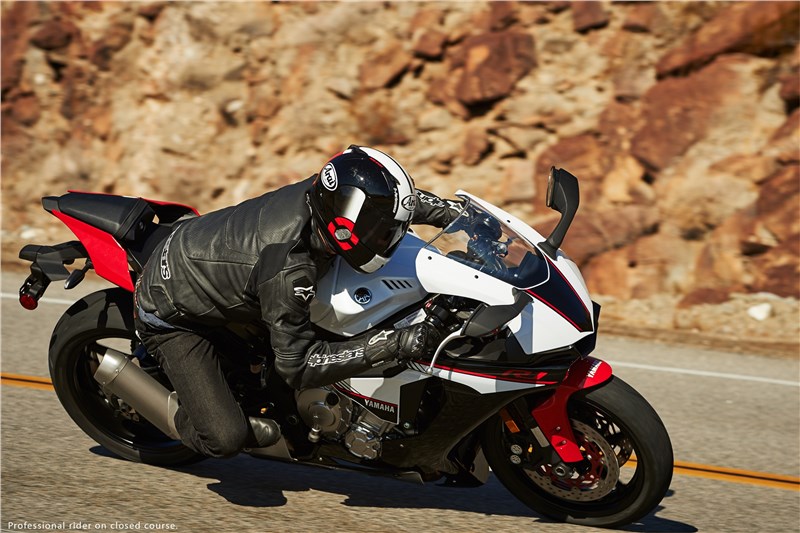

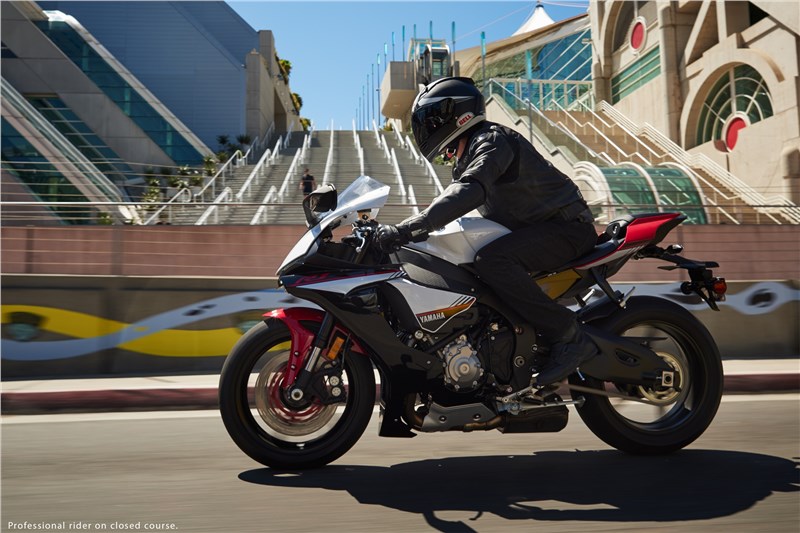

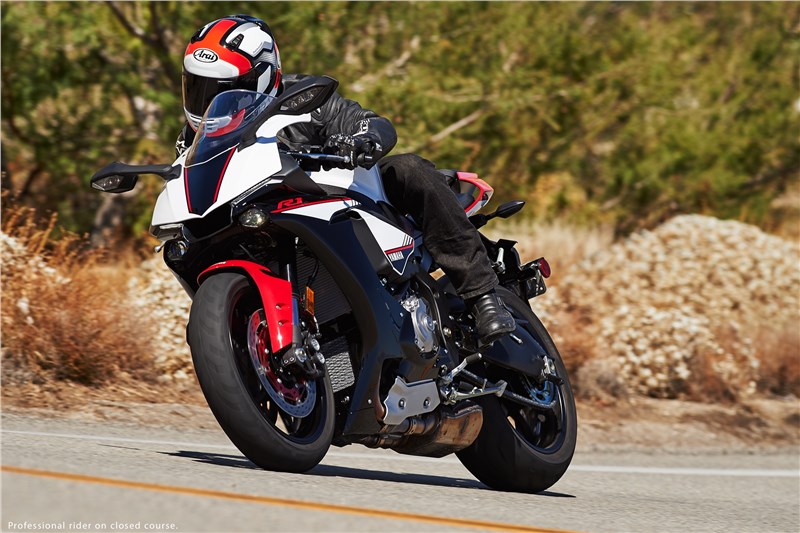

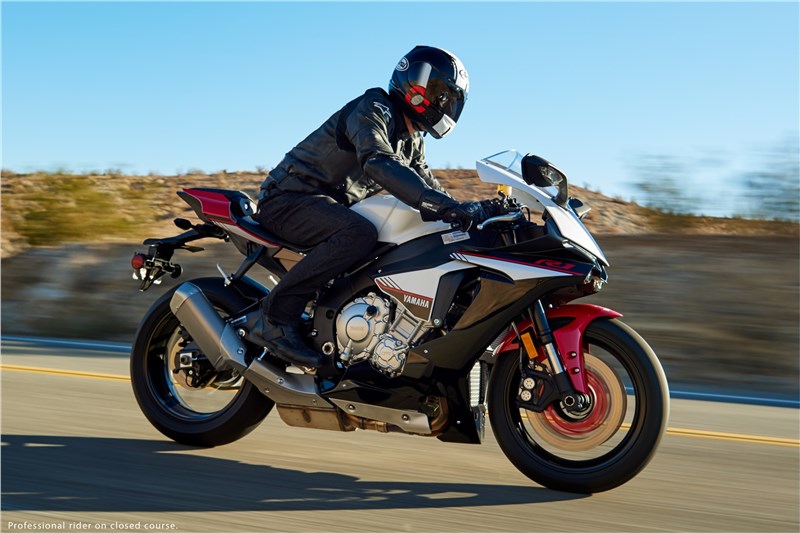

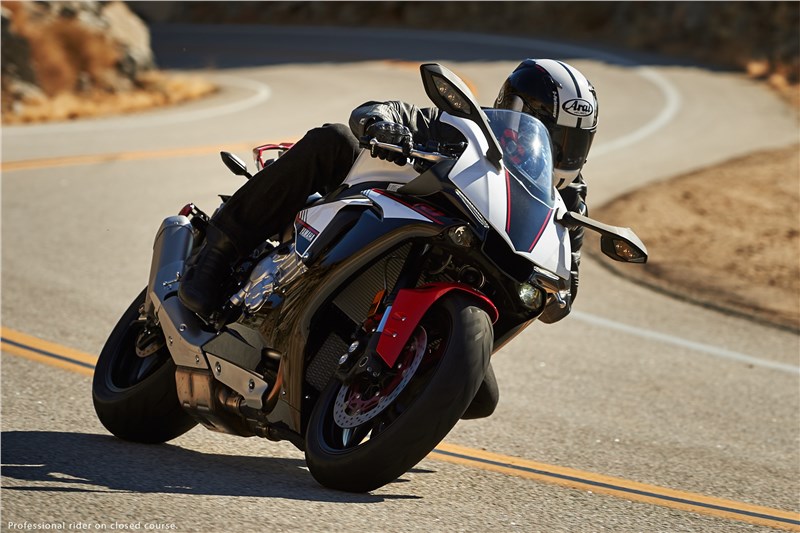

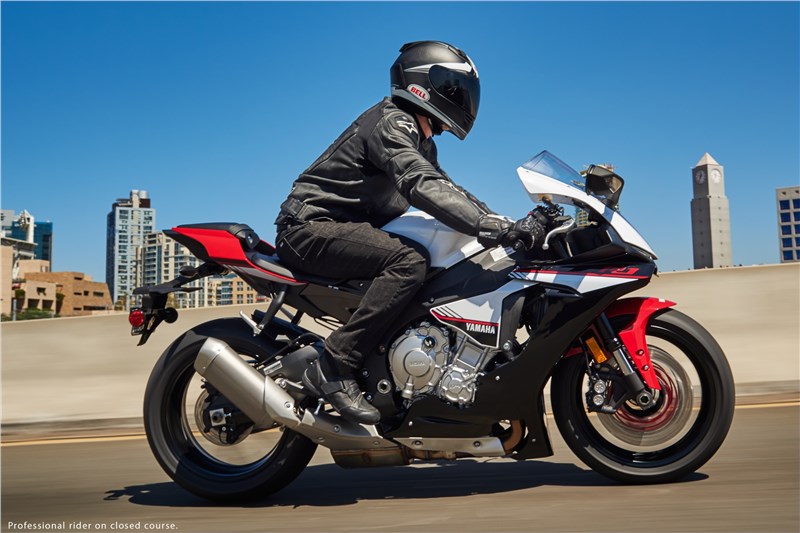

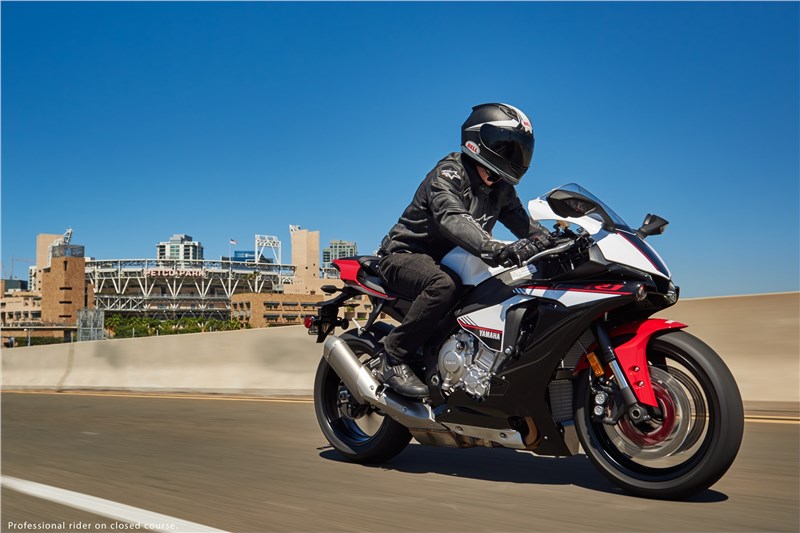

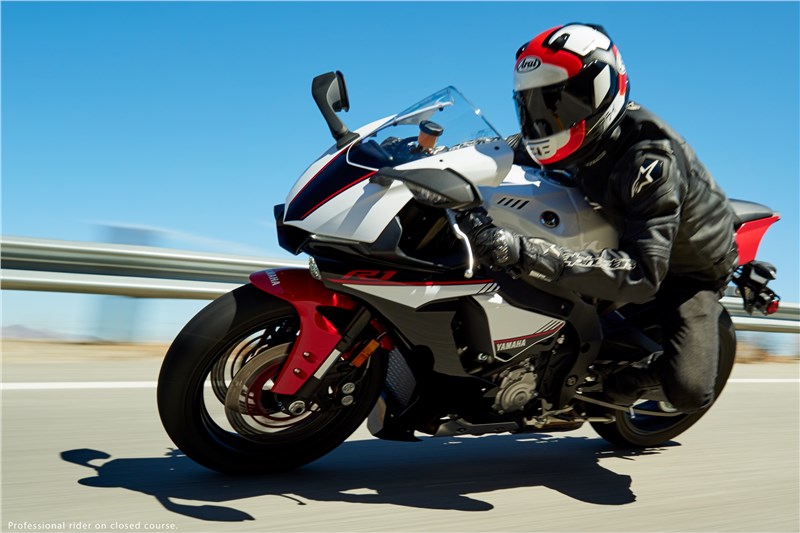

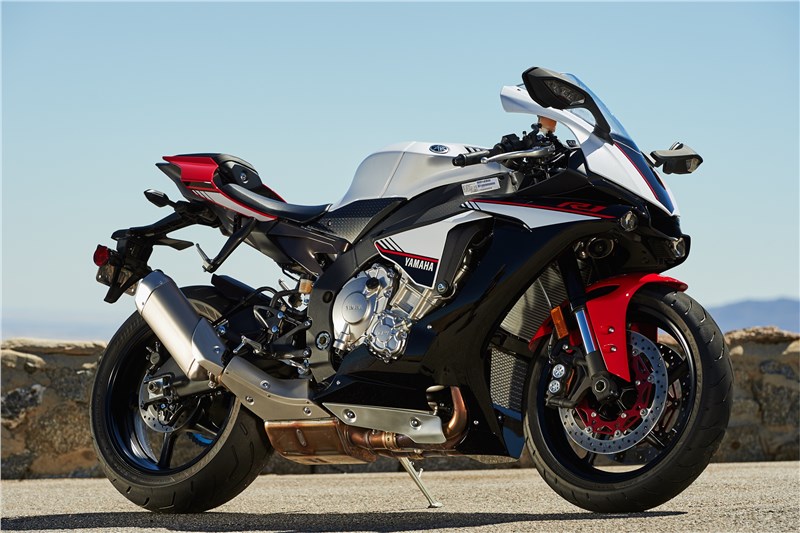

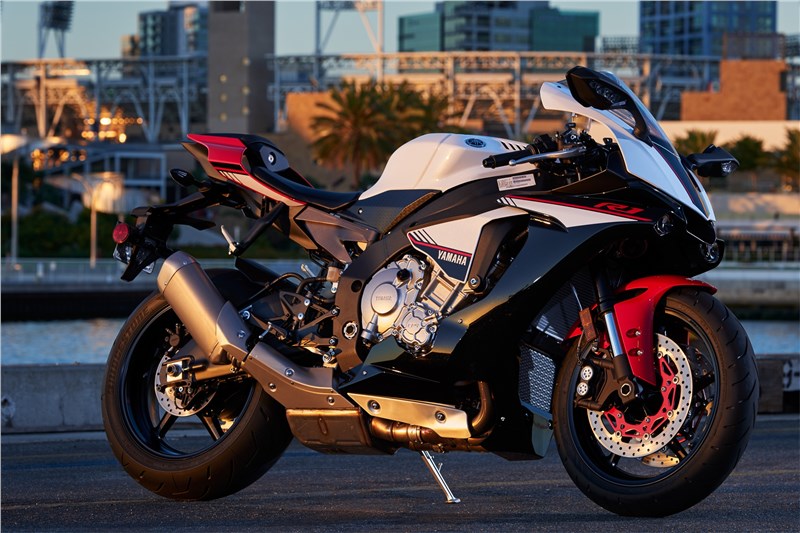

2016 Yamaha YZF‑R1S

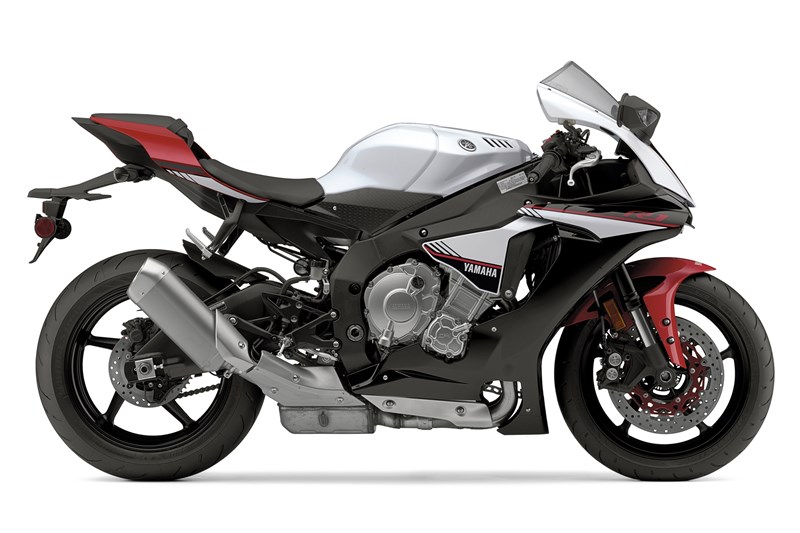

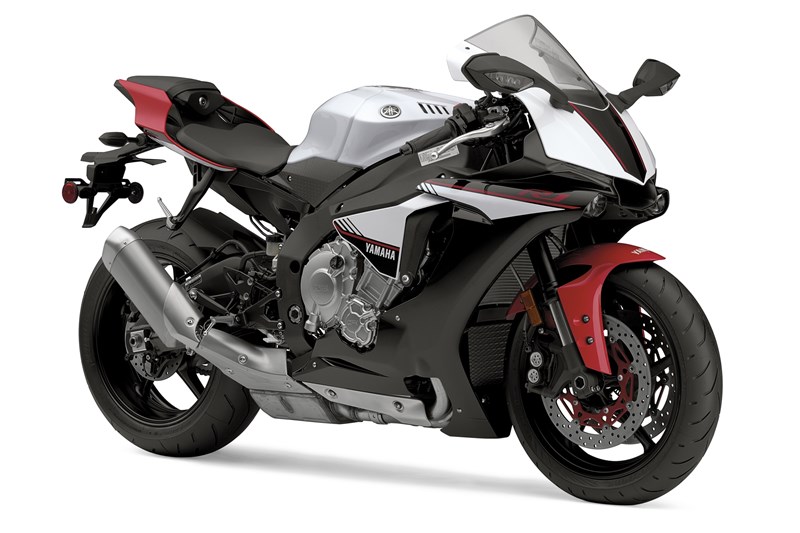

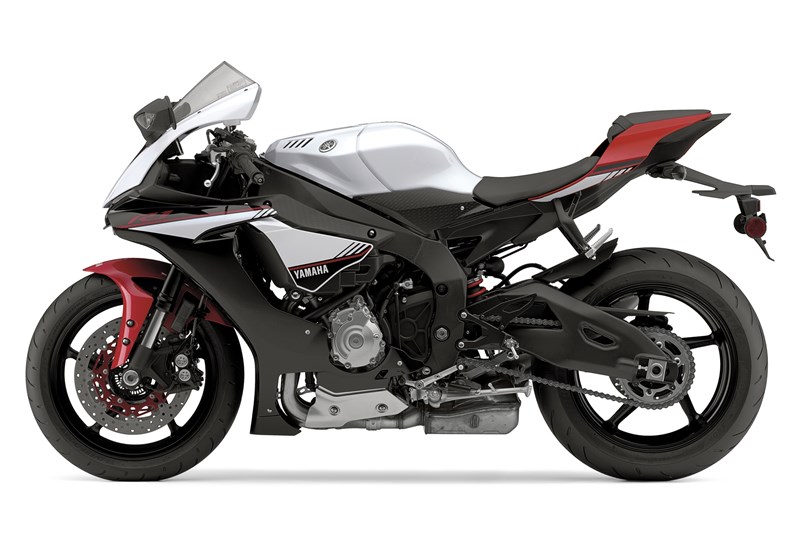

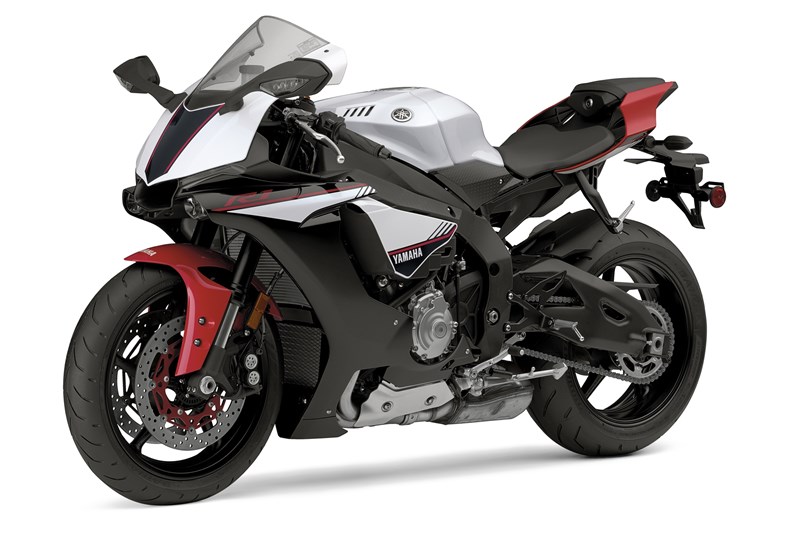

Intensity White/Raven/Rapid Red
MSRP: $14,990.00
Manufacturer: Yamaha
Condition: New
Description
- Cutting-edge MotoGP®-Derived Crossplane Crankshaft Engine
The 2016 YZF-R1S™ features a lightweight and compact crossplane-crankshaft, inline-four-cylinder, 998cc high output engine, producing excellent power and a strong pulse of linear torque for stunning performance. - Class-leading Electronics Package
The YZF-R1S features an advanced MotoGP®-inspired electronics package: a suite of inter-related technologies, enabling the rider to enjoy the fullest range of performance with great comfort, control, and ease of operation. - MotoGP®-level Controllability
Featuring Yamaha’s six-axis Inertial Measurement Unit (IMU), the 2016 R1S represents the state-of-the-art in digital riding control, where all riders can experience total 3D controllability. - Informed Systems
The IMU consists of a gyro sensor that measures pitch, roll, and yaw, as well as an accelerometer, or G-sensor, that measures acceleration in the fore-aft, up-down, and right-left directions… all at a rate of 125 calculations per second. By calculating each signal, the IMU finds the precise vehicle position and movement, and communicates it to the ECU, enabling it to control the bike’s systems. - Digital Rider Aids
The 2016 R1S is equipped with banking-sensitive Traction Control, as well as Slide Control, Anti-Wheelie Control, Launch Control, ABS, a Unified Braking System, and more. The all-new R1S gives street riders an amazing level of rider-adaptive performance. - Deltabox® Frame
The advanced aluminum Deltabox® frame uses the engine as a stressed member of the chassis and is designed to provide optimum longitudinal, lateral and torsional rigidity. - Compact Exhaust System
A midship exhaust system features a titanium muffler and is positioned low, in the middle of the chassis, for improved mass centralization. - MotoGP® Styling
The styling on the R1S is shared with the YZF-R1M® and YZF-R1® and inspired by the YZR-M1™, purposely sculpted for maximum aerodynamic efficiency.
Specifications
Engine
Engine Type
998cc, liquid-cooled inline 4 cylinder DOHC; 16 valves
Bore x Stroke
79.0mm x 50.9mm
Compression Ratio
13.0:1
Fuel Delivery
Fuel Injection with YCC-T and YCC-I
Ignition
TCI: Transistor Controlled Ignition
Transmission
6-speed w/multiplate slipper clutch
Final Drive
O-ring chain
Chassis
Suspension / Front
43mm KYB® inverted fork; fully adjustable; 4.7-in travel
Suspension / Rear
KYB® Single shock w/piggyback reservoir, 4-way adjustable; 4.7- in travel
Brakes / Front
Dual 320mm hydraulic disc; 4-piston caliper, Unified Brake System and ABS
Brakes / Rear
220mm disc; Unified Brake System and ABS
Tires / Front
120/70ZR17
Tires / Rear
190/55ZR17
Dimensions
L x W x H
80.9 in x 27.2 in x 45.3 in
Seat Height
33.7 in
Wheelbase
55.3 in
Rake (Caster Angle)
24.0°
Trail
4.0 in
Ground Clearance
5.1 in
Fuel Capacity
4.5 gal
Fuel Economy
34 mpg
Wet Weight
448 lb
Other
Warranty
1 Year (Limited Factory Warranty)
Features
Top Features:
- Cutting-edge MotoGP®-Derived Crossplane Crankshaft Engine
The 2016 YZF-R1S™ features a lightweight and compact crossplane-crankshaft, inline-four-cylinder, 998cc high output engine, producing excellent power and a strong pulse of linear torque for stunning performance. - Class-leading Electronics Package
The YZF-R1S features an advanced MotoGP®-inspired electronics package: a suite of inter-related technologies, enabling the rider to enjoy the fullest range of performance with great comfort, control, and ease of operation. - MotoGP®-level Controllability
Featuring Yamaha’s six-axis Inertial Measurement Unit (IMU), the 2016 R1S represents the state-of-the-art in digital riding control, where all riders can experience total 3D controllability. - Informed Systems
The IMU consists of a gyro sensor that measures pitch, roll, and yaw, as well as an accelerometer, or G-sensor, that measures acceleration in the fore-aft, up-down, and right-left directions… all at a rate of 125 calculations per second. By calculating each signal, the IMU finds the precise vehicle position and movement, and communicates it to the ECU, enabling it to control the bike’s systems. - Digital Rider Aids
The 2016 R1S is equipped with banking-sensitive Traction Control, as well as Slide Control, Anti-Wheelie Control, Launch Control, ABS, a Unified Braking System, and more. The all-new R1S gives street riders an amazing level of rider-adaptive performance. - Deltabox® Frame
The advanced aluminum Deltabox® frame uses the engine as a stressed member of the chassis and is designed to provide optimum longitudinal, lateral and torsional rigidity. - Compact Exhaust System
A midship exhaust system features a titanium muffler and is positioned low, in the middle of the chassis, for improved mass centralization. - MotoGP® Styling
The styling on the R1S is shared with the YZF-R1M® and YZF-R1® and inspired by the YZR-M1™, purposely sculpted for maximum aerodynamic efficiency.
Engine:
- Cutting-edge Crossplane Crankshaft Engine
The R1S’ 998cc in-line 4-cylinder, crossplane crankshaft engine features steel fracture-split connecting rods and lightweight forged pistons. This race-derived engine delivers high horsepower and a strong pulse of linear torque. - Compact Stacked Transmission
A 6-speed transmission is built to match the engine’s delivery and character for excellent response. The transmission "stacks" the input/output shafts to centralize mass and to keep the overall engine size shorter front to back, which optimizes engine placement in the frame for outstanding weight balance. - Rocker-Arm Valvetrain
Advanced rocker-arm valve actuation uses the arm’s lever ratio to allow for larger valve lift while using lower cam lobes and reduced spring pressure, further boosting power. - Compact Exhaust System
The 2016 R1S is equipped with a newly designed exhaust system crafted from titanium and stainless steel. Plus, the compact midship muffler contributes to mass centralization. - Advanced Clutch
Assist and slipper clutch is used to give the rider more confident downshifts when entering corners aggressively, while still handling the torque of the R1S’ high-output inline-four motor.
Electronics Package:
- MotoGP®-level Controllability
Inertial Measurement Unit (IMU) uses six axes of measurement: It consists of a gyro sensor that measures pitch, roll, and yaw, as well as an accelerometer, or G-sensor, that measures acceleration in the fore-aft, up-down, and right-left directions… all at a rate of 125 calculations per second. The IMU communicates with the ECU, which activates the technologies in Yamaha Ride Control (YRC). YRC includes Power Mode, Traction Control System, Slide Control System, Lift Control System and Launch Control System. All these systems are adjustable and can be saved within four presets in the YRC system. - PWR Mode
Power Delivery Mode (PWR), similar to the earlier “D-Mode” system, lets the rider choose from four settings of throttle-valve opening rate in relation to the degree of throttle-grip opening to best match their riding conditions. - Lean-angle Sensitive TCS
Variable Traction Control System (TCS) reduces rear wheel spin when exiting corners, calculating differences in wheels speeds and in relation to lean angle. As lean angle increases, so does the amount of intervention… with ten separate settings (off and 1-9) enabling the rider to dial in the exact level of control needed. - MotoGP®-developed SCS
Slide Control System (SCS), the first of its kind on a production motorcycle, comes directly from the YZR-M1. It works in tandem with the IMU, where, if a slide is detected while accelerating during hard leaning conditions, the ECU will step in and control engine power to reduce the slide. This too can be adjusted by the rider. Four settings (1-3 and off). - Lift Control System
Lift Control System (LIF) IMU detects the front to rear pitch rate and the ECU controls engine power to reduce the front wheel lift during acceleration. Four settings (1-3 and off). - Race Start Control
Launch Control System (LCS) limits engine rpms to 10,000 wide open throttle. It maintains optimum engine output in conjunction with input from the TCS and LIF systems to maximize acceleration from a standing start. Three setting levels regulate the effect (1-2 and off). - Ride-by-Wire Throttle
The R1S uses YCC-T® (Yamaha Chip Controlled Throttle), fly-by-wire technology providing optimum power delivery, as well as YCC-I® (Yamaha Chip Controlled Intake), which is a variable intake system that broadens the spread of power in both low and high rpm.
Chassis/Suspension:
- Full Color Instruments

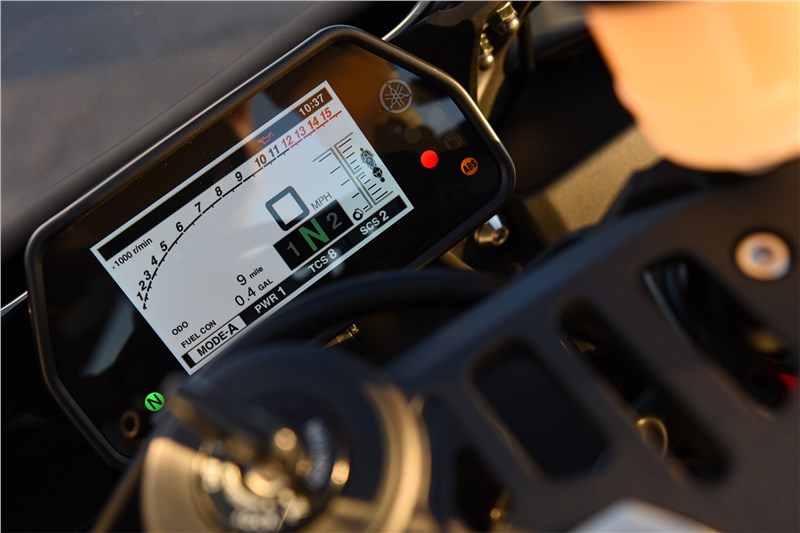

The R1S features a brilliant full-color, thin-film transistor LCD meter, including front brake pressure and fore/aft G-force readouts, giving the rider even more feedback from the machine. It features both street mode and a track mode that focuses on performance information, such as YRC settings, a zoomed-in view of the tachometer in the upper rpm range, a lap timer with best lap and last lap feature, gear position indicator and speed. - Deltabox® Frame
The aluminum Deltabox® frame and magnesium subframe contribute to a light weight and compact chassis design. The aluminum frame is both strong and flexible, and uses the engine as a stressed member of the frame for optimal rigidity balance and fantastic cornering performance. - Fully Adjustable KYB® Fork
The R1S features an advanced inverted KYB® front fork with 43mm inner tubes and a 4.7-inch stroke with full adjustability, for an exceptional balance of feedback and traction. - Linkage-type KYB® Shock
The fully adjustable KYB® shock has a rear bottom link pivot position that is optimally placed to provide exceptional handling, and excellent transmission of engine torque to the road. - Compact Chassis Dimensions
The YZF-R1S’ wheelbase is 10mm shorter than the 2014 YZF-R1, adding to cornering performance. However, the 2016 R1S retains a 40.5% ratio of swingarm length to wheelbase for superb handling. - Aluminum Fuel Tank
An aluminum 4.5 gallon fuel tank, weighing in at a full 3.5 pounds less than a comparable steel tank, further reduces overall weight. - Powerful, Controllable Brakes
The track developed and tested racing ABS and Unified Braking System provide maximum braking performance. UBS inhibits unwanted rear end motion during braking by activating the rear brake when the front brake is applied, with force distribution based on the bike’s attitude and lean angle. ADVICS 4-piston radial mounted front calipers ride on big 320mm rotors for excellent stopping power.
Additional Features:
- MotoGP® Styling
Dynamic “M1” inspired styling that creates a more compact profile with improved aerodynamics. - Compact LED Headlights
LED headlights are both lightweight and compact allowing for a more streamlined design and layout of the front face. - LED Lighting
LED front turn signals are integrated into the mirrors for improved aerodynamics, while an LED tail light is stylish and highly visible. - Factory Level Telemetry
Available as an option is the Yamaha-exclusive Communication Control Unit. The CCU allows riders to communicate with the vehicle via Wi-Fi through Yamaha’s exclusive Y-TRAC smartphone and tablet app. The system is comprised of the CCU and GPS antenna, running data can be recorded via a data logger, with course mapping and automatic lap timing managed by GPS. This data can then be wirelessly downloaded to the Android® or Apple® iOS® app where it can be analyzed. Changes to settings can be made via the Yamaha Ride Control (YRC) setting app and then uploaded back to the R1S.
