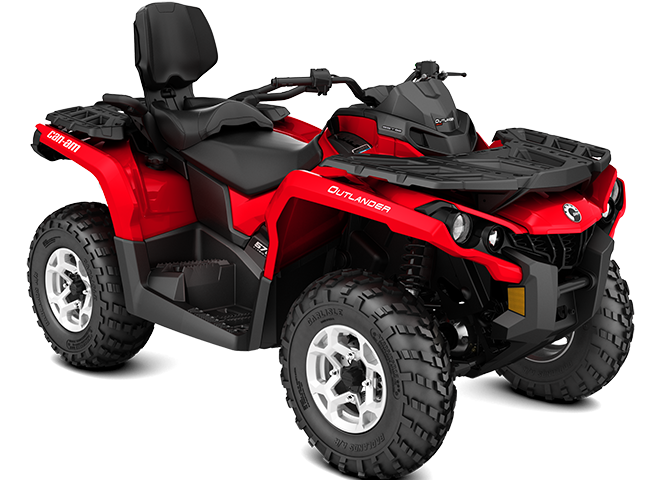

2016 Can-Am OUTLANDER MAX DPS 570

2016 Can-Am OUTLANDER MAX DPS 570
Viper Red
MSRP: $9,999.00
Manufacturer: Can-Am
Condition: New

Description

This package gives you the flexibility to customize your machine the way you want, with the comfort of the Tri-Mode Dynamic Power Steering (DPS).

  • CATEGORY-LEADING PERFORMANCE

    Available with the 48-hp Rotax 570, 62-hp Rotax 650, new 78-hp Rotax 850 or 89-hp Rotax 1000R liquid-cooled V-Twin engine, with four valves per cylinder and single overhead camshafts, the signature Can-Am engine lineup offers unmatched power for a true performance edge.

  • ELIMINATES SCRUB AND CAMBER CHANGES

    The only independent rear suspension that eliminates scrub and camber changes, meaning the wheels pivot up and down rather than in a butterfly motion. This ensures the vehicle only moves in the direction you point it. Reconfigured for improved traction and optimal transfer of power to the ground.

  • MORE EFFICIENT DESIGN

    The next-generation, industry-exclusive SST G2 frame with Geometric Contact Control. The more efficient welded-steel frame incorporates new processes and updated geometry for increased structural integrity, improved durability, and precision handling.

  • CONVERTIBLE PASSENGER SEATING

    Takes the Outlander MAX from one-up to two-up in a matter of seconds. Gives you plenty of storage in one-up mode and unmatched comfort and convenience for your passenger when riding two-up.

  • PRECISION-ENGINEERED HANDLING

    DPS offers three levels of rider-adjustable steering assistance that can be adapted to match the terrain while also reducing kickback to the steering.

Specifications

ENGINE

ENGINE
570
TYPE
48 hp, Rotax 570 cc V-twin, liquid cooled
FUEL DELIVERY SYSTEM
Electronic Fuel Injection (EFI)
TRANSMISSION
CVT, P / R / N / H / L, standard engine braking
DRIVE TRAIN
Selectable 2WD / 4WD with Visco-Lok‡ QE auto-locking front differential
POWER STEERING
Tri-Mode Dynamic Power Steering (DPS)


SUSPENSION

FRONT SUSPENSION
Double A-arm 9 in. (22.9 cm) travel
FRONT SHOCKS
Oil
REAR SUSPENSION
Torsional Trailing arm Independent rear suspension (TTI) 9.3 in. (23.6 cm) travel
REAR SHOCKS
Oil


BRAKES

FRONT BRAKES
Dual 214 mm ventilated disc brakes with hydraulic twin-piston calipers
REAR BRAKE
Single 214 mm ventilated disc brake with hydraulic twin-piston calipers


TIRES/WHEELS

FRONT TIRES
Carlisle† Badland 26 x 8 x 12 in. (66 x 20.3 x 30.5 cm)
REAR TIRES
Carlisle Badland 26 x 10 x 12 in. (66 x 25.4 x 30.5 cm)
WHEELS
12 in. cast aluminum


DIMENSIONS/CAPACITIES

L X W X H (IN)
94 x 46 x 53 in.
L X W X H (CM)
238.8 x 116.8 x 135 cm
WHEELBASE
59 in. (149.9 cm)
GROUND CLEARANCE
11 in. (27.9 cm)
SEAT HEIGHT
34.5 in. (87.7 cm)
ENGINE / DRY WEIGHT*
793 lb (359 kg)
RACK CAPACITY
Front: 100 lb (45 kg) Rear: 200 lb (90 kg)
STORAGE CAPACITY
Rear: 5.7 gal (21.4 L)
TOWING CAPACITY
1,300 lb (590 kg)
FUEL CAPACITY
5.4 gal (20.5 L) FEATURES WARRANTY


KEY ITEMS

GAUGE
Multifunction Digital: Speedometer, tachometer (bar graph RPM, bottom bar numerical RPM), odometer, trip & hour meters, diagnostic center, gear position, engine hour meter, 4 x 4 indicator, temperature and engine lights, fuel gauge, clock
WINCH
Prewired for available winch
PROTECTION
N/A
INSTRUMENTATION
Lighter type DC outlet in console, standard connector in the back (15-A)
LIGHTING
230-W from twin 60-W projectors and dual 55-W reflectors with tail light / brake light
SEAT
Convertible Rack System (CRS)
ANTI-THEFT SYSTEM
Digitally Encoded Security System (D.E.S.S.™)


WARRANTY

FACTORY
6 months limited warranty
EXTENDED
B.E.S.T. available from 6 to 30 months


All inventory listed is subject to availability and prior sale. Manufacturer's Suggested Retail Price (MSRP) if shown for a vehicle excludes set-up, freight, taxes, title, licensing or other dealer charges, and is subject to change. Individual prices may vary. Please request a quote for specific pricing.
