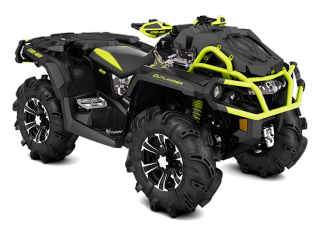

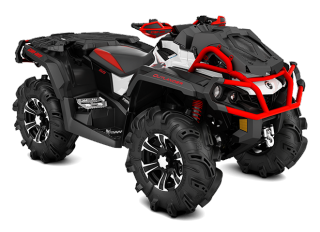

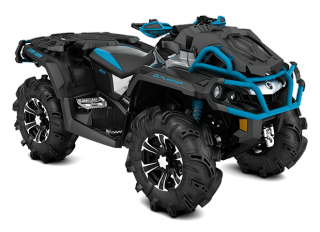

2016 Can-Am OUTLANDER X MR 1000R

2016 Can-Am OUTLANDER X MR 1000R
Hyper Silver/Black/Octane Blue
MSRP: $14,699.00
Manufacturer: Can-Am
Condition: New

Description

Horsepower matters when it comes to mud riding. That's why the Outlander 1000R X mr is built with an 89-hp Rotax® 1000 V-Twin engine. Take on any mud hole with confidence and best-in-class power.

  • CATEGORY-LEADING PERFORMANCE

    The most powerful mudding ATV engine is in the Outlander 1000R X mr. Fed by a 54-mm throttle body and twin Siemens VDO fuel injectors, you’ve got the power to get in and out of the toughest mud holes.

  • MUD MANAGEMENT

    Located in place of the front rack, the Can-Am Outlander X mr's radiator is kept out of the mud and wears a protective, vented cover, ensuring you'll be able to enjoy all-day rides in deep goop. The large, efficient radiator offers approximately 22 kW of cooling capacity.

  • INDUSTRY EXCLUSIVE

    These high-performance front and rear FOX† Performance Series 1.5 PODIUM† RC2 shocks give riders the flexibility to fit all terrain and all riding styles, with easy dual-speed compression, rebound and preload adjustments.

  • PERFORMANCE MUD TIRES AND WHEELSL

    Designed by Gorilla Axle for mud riding and racing, these tires were developed to go in the deepest mud holes. Installed on large 14-in. ITP SS312 cast-aluminum wheels to give an aggressive look.

  • LONG WHEELBASE

    Uses the 59-in wheelbase of the Outlander MAX platform for improved performance in the deepest mud.

Specifications

ENGINE

TYPE
89 hp, Rotax 976 cc V-twin, snorkeled, liquid cooled with relocated radiator
FUEL DELIVERY SYSTEM
Electronic Fuel Injection (EFI)
TRANSMISSION
CVT/P/R/N/H/Extra Low L, standard engine braking
DRIVE TRAIN
Selectable 2WD / 4WD with Visco-Lok‡ QE auto-locking front differential
POWER STEERING
Tri-Mode Dynamic Power Steering (DPS)


SUSPENSION

FRONT SUSPENSION
Double A-arm
FRONT SHOCKS
FOX Performance Series 1.5 PODIUM RC2
REAR SUSPENSION
Torsional Trailing arm Independent rear suspension (TTI)
REAR SHOCKS
FOX Performance Series 1.5 PODIUM RC2


BRAKES

FRONT BRAKES
Dual 214 mm ventilated disc brakes with hydraulic twin-piston calipers
REAR BRAKE
Single 214 mm ventilated disc brake with hydraulic twin-piston calipers


TIRES/WHEELS

FRONT TIRES
Gorilla Axle Silverback 30 x 9 x 14 in. (76.6 x 22.9 x 35.6 cm)
REAR TIRES
Gorilla Axle Silverback 30 x 9 x 14 in. (76.6 x 22.9 x 35.6 cm)
WHEELS
14 in. ITP SS312 cast aluminum


DIMENSIONS/CAPACITIES

L X W X H (IN)
97 x 50 x 51.5 in.
L X W X H (CM)
246 x 127 x 131 cm
WHEELBASE
59 in. (149.9 cm)
GROUND CLEARANCE
13 in. (33 cm)
SEAT HEIGHT
36.75 in. (93.3 cm)
DRY WEIGHT
990 lb (449 kg)
RACK CAPACITY
Rear: 200 lb (90 kg)
STORAGE CAPACITY
Rear: 5.7 gal (21.4 L)
TOWING CAPACITY
1,300 lb (590 kg)
FUEL CAPACITY
5.4 gal (20.5 L) FEATURES


KEY ITEMS

GAUGE
Multifunction Analog / Digital: Speedometer, tachometer (bar graph RPM, bottom bar numerical RPM), odometer, trip & hour meters, diagnostic center, gear position, engine hour meter, 4 x 4 indicator, temperature and engine lights, fuel gauge, clock
WINCH
3,000-lb (1,361 kg) WARN winch with roller fairlead
PROTECTION
Heavy-duty front & rear bumpers, aluminum taper-profile handlebar with wind deflectors and square pad, mud-riding footrests and mudguards
INSTRUMENTATION
Lighter type DC outlet in console, standard connector in the back (15-A)
LIGHTING
230-W from twin 60-W projectors and dual 55-W reflectors with tail light / brake light
SEAT
N/A
ANTI-THEFT SYSTEM
Digitally Encoded Security System (D.E.S.S. ™)


WARRANTY

FACTORY
6 months limited warranty
EXTENDED
B.E.S.T. available from 6 to 30 months


All inventory listed is subject to availability and prior sale. Manufacturer's Suggested Retail Price (MSRP) if shown for a vehicle excludes set-up, freight, taxes, title, licensing or other dealer charges, and is subject to change. Individual prices may vary. Please request a quote for specific pricing.
