2016 Can-Am OUTLANDER L X MR 570

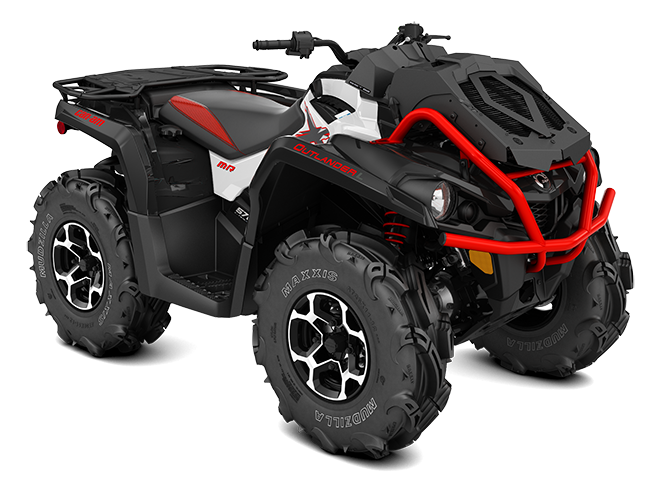

2016 Can-Am OUTLANDER L X MR 570
White/Black/Can-Am Red
MSRP: $8,549.00
Manufacturer: Can-Am
Condition: New

Description

The most accessible mud-ready ATV on the market. Take on any mud hole with confidence and best-in-class power.

  • CATEGORY-LEADING PERFORMANCE

    Equipped with the 48-hp Rotax 570 liquid-cooled V-Twin engine, with four valves per cylinder and single overhead camshaft, this Can-Am engine gives you the power to get in and out of the toughest mud holes.

  • MUD MANAGEMENT

    Located in place of the front rack, the Can-Am Outlander X mr's radiator is kept out of the mud and wears a protective, vented cover, ensuring you'll be able to enjoy all-day rides in deep goop. The large, efficient radiator offers approximately 22 kW of cooling capacity.

  • MUD TIRES ON RUGGED WHEELS

    The 28-in Maxxis Mudzilla∞ 6-ply tires offer exceptional mud characteristics. Large lugs and an aggressive tread pattern are designed to give maximum traction in the mud and a smooth ride to the next mud hole. The 12-in cast-aluminum wheels reduce unsprung weight and offer improved strength.

  • BETTER CONTROL

    All DPS-equipped models have Visco-Lok† QE, which has all the features and benefits of the standard quick-engagement Visco-Lok† differential, but with an even quicker engagement point. This differential, unlike some competitors' differentials, does not have a speed limiter.

  • ADDED PROTECTION

    The front bumper is factory installed and are covered by a factory warranty. The added protection gives peace of mind in rugged conditions.

Specifications

ENGINE

TYPE
48 hp, Rotax 570 cc V-twin, snorkeled, liquid cooled with relocated radiator
FUEL DELIVERY SYSTEM
Electronic Fuel Injection (EFI)
TRANSMISSION
CVT, P / R / N / H / L, standard engine braking
DRIVE TRAIN
Selectable 2WD / 4WD with Visco-Lok auto-locking front differential
POWER STEERING
Tri-Mode Dynamic Power Steering (DPS)


SUSPENSION

FRONT SUSPENSION
Double A-arm
FRONT SHOCKS
Oil
REAR SUSPENSION
Torsional Trailing arm Independent rear suspension (TTI)
REAR SHOCKS
Oil


BRAKES

FRONT BRAKES
Dual 214 mm ventilated disc brakes with hydraulic twin-piston calipers
REAR BRAKE
Single 214 mm ventilated disc brake with hydraulic twin-piston calipers


TIRES/WHEELS

FRONT TIRES
Maxxis Mudzilla 28 x 8 x 12 in. (71.1 x 20.3 x 30.5 cm)
REAR TIRES
Maxxis Mudzilla 28 x 10 x 12 in. (71.1 x 25.4 x 30.5 cm)
WHEELS
12 in. cast aluminum


DIMENSIONS/CAPACITIES

L X W X H (IN)
83 x 46 x 49 in.
L X W X H (CM)
211 x 116.8 x 124 cm
WHEELBASE
51 in. (129.5 cm)
GROUND CLEARANCE
N/A
SEAT HEIGHT
33.8 in. (85.8 cm)
DRY WEIGHT
843 lb (382 kg)
RACK CAPACITY
Rear: 240 lb (109 kg)
STORAGE CAPACITY
Rear: 2.9 gal (10.9 L)
TOWING CAPACITY
1,300 lb (590 kg)
FUEL CAPACITY
5.4 gal (20.5 L)


KEY ITEMS

GAUGE
Multifunction Digital: Speedometer, tachometer (bar graph RPM, bottom bar numerical RPM), odometer, trip & hour meters, diagnostic center, gear position, engine hour meter, 4 x 4 indicator, temperature and engine lights, fuel gauge, clock
WINCH
Prewired for available winch
PROTECTION
Heavy-duty front bumper, mud-riding footrests
INSTRUMENTATION
Lighter type DC outlet in console, standard connector in the back (15-A)
LIGHTING
70-W from dual 35-W front light / brake light
SEAT
N/A
ANTI-THEFT SYSTEM
N/A


WARRANTY

FACTORY
6 months limited warranty
EXTENDED
B.E.S.T. available from 6 to 30 months


All inventory listed is subject to availability and prior sale. Manufacturer's Suggested Retail Price (MSRP) if shown for a vehicle excludes set-up, freight, taxes, title, licensing or other dealer charges, and is subject to change. Individual prices may vary. Please request a quote for specific pricing.

Request Quote or More Information
