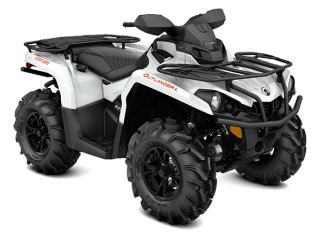

2016 Can-Am OUTLANDER L LE 570

2016 Can-Am OUTLANDER L LE 570
Pearl White
MSRP: $8,549.00
Manufacturer: Can-Am
Condition: New

Description

Power, reliability, the comfort of DPS combined with the hardest working factory-installed features.

  • EASILY OVERCOME OBSTACLES

    12-in cast-aluminum wheels black painted. The centerless design reduces unsprung weight and offers improved strength. The 26-in, 6-ply Carlisle ACT HD tires feature a tread pattern that is aggressive enough to tackle tough terrain, yet provide a smooth ride.

  • PRECISION-ENGINEERED HANDLING

    The Tri-Mode Dynamic Power Steering (DPS) offers three levels of rider-adjustable steering assistance that can be adapted to match the terrain while also reducing kickback to the steering.The amount of assistance varies with the vehicle's speed to adjust the steering input effort to a comfortable level.

  • ADDED PROTECTION

    The front and rear bumpers are factory installed and are covered by a factory warranty. The added protection gives peace of mind in rugged conditions.

  • PREMIUM FINISH

    This high-grade, durable painted plastic offers an attractive, durable finish and an exclusive look.

  • UNIQUE LOOK

    This improved seat cover has a unique look and is made of a thicker vinyl material, which increases rider comfort, appeal and overall durability.

Specifications

ENGINE

TYPE
48 hp, Rotax 570 cc V-twin, liquid cooled
FUEL DELIVERY SYSTEM
Electronic Fuel Injection (EFI)
TRANSMISSION
CVT, P / R / N / H / L, standard engine braking
DRIVE TRAIN
Selectable 2WD / 4WD with Visco-Lok— QE auto-locking front differential
POWER STEERING
Tri-Mode Dynamic Power Steering (DPS)


SUSPENSION

FRONT SUSPENSION
Double A-arm 9 in. (22.9 cm) travel
FRONT SHOCKS
Oil
REAR SUSPENSION
Torsional Trailing arm Independent rear suspension (TTI) 8.8 in. (22 cm) travel
REAR SHOCKS
Oil


BRAKES

FRONT BRAKES
Dual 214 mm ventilated disc brakes with hydraulic twin-piston calipers
REAR BRAKE
Single 214 mm ventilated disc brake with hydraulic twin-piston calipers


TIRES/WHEELS

FRONT TIRES
Carlisle ACT HD 26 x 8 x 12 in. (66 x 20.3 x 30.5 cm)
REAR TIRES
Carlisle ACT HD 26 x 10 x 12 in. (66 x 25.4 x 30.5 cm)
WHEELS
12 in. cast aluminum


DIMENSIONS/CAPACITIES

L X W X H (IN)
83 x 46 x 49 in.
L X W X H (CM)
211 x 116.8 x 124 cm
WHEELBASE
51 in. (129.5 cm)
GROUND CLEARANCE
10.5 in. (26.7 cm)
SEAT HEIGHT
33.8 in. (85.8 cm)
DRY WEIGHT*
704 lb (319 kg)
RACK CAPACITY
Front: 120 lb (54.4 kg) Rear: 240 lb (109 kg)
STORAGE CAPACITY
Rear: 2.9 gal (10.9 L)
TOWING CAPACITY
1,300 lb (590 kg)
FUEL CAPACITY
5.4 gal (20.5 L)


KEY ITEMS

GAUGE
Multifunction Digital: Speedometer, tachometer, odometer, trip & hour meters, fuel, gear position, 4 x 4 indicator, diagnostics, clock
WINCH
Prewired for available winch
PROTECTION
Heavy-duty front & rear bumpers, handlebar wind deflectors
INSTRUMENTATION
Lighter type DC outlet in console, standard connector in the back (15-A)
LIGHTING
70-W from dual 35-W front light / brake light
SEAT
Reinforced seat skin
ANTI-THEFT SYSTEM
N/A


WARRANTY

FACTORY
6 months limited warranty
EXTENDED
B.E.S.T. available from 6 to 30 months


All inventory listed is subject to availability and prior sale. Manufacturer's Suggested Retail Price (MSRP) if shown for a vehicle excludes set-up, freight, taxes, title, licensing or other dealer charges, and is subject to change. Individual prices may vary. Please request a quote for specific pricing.
