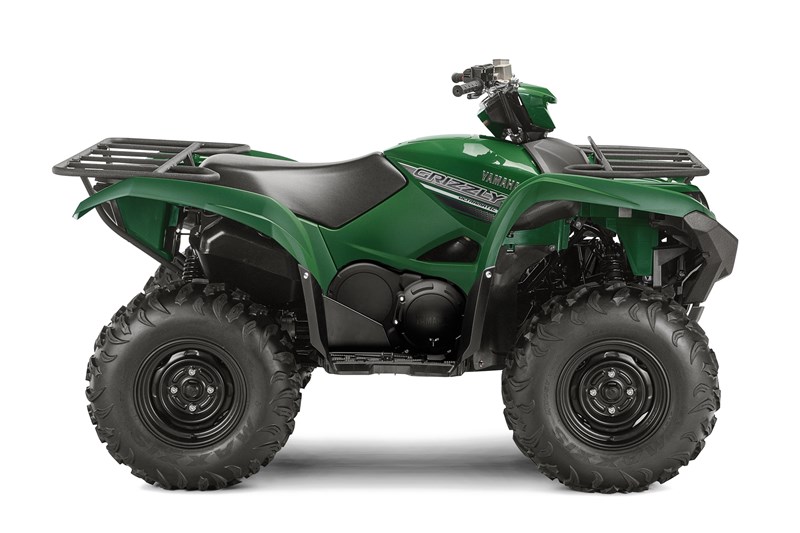

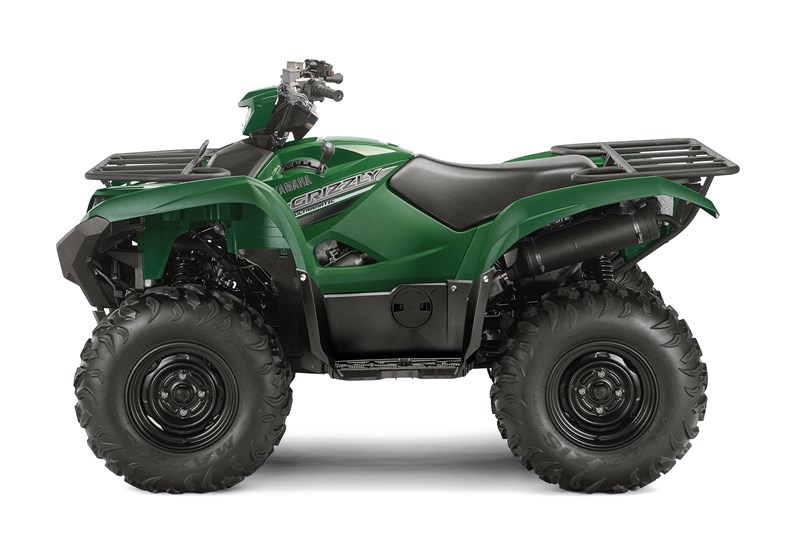

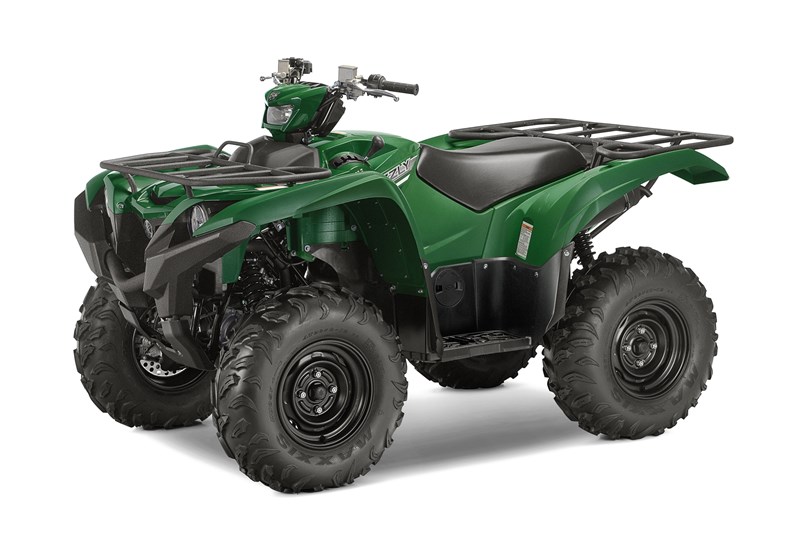

Hunter Green
MSRP: $8,899.00
Manufacturer: Yamaha
Condition: New
Description
- High-Tech Engine Designed For Aggressive Trail Riding
The 2016 Grizzly® has an all-new, more powerful DOHC, 708cc, 4-valve, fuel-injected engine with optimized torque, power delivery and engine character for aggressive recreational riding. Peak power is up six percent compared to the previous Grizzly 700, and torque rises nearly ten percent. - Optimized, High-Performance Ultramatic® Transmission
Grizzly’s Ultramatic® transmission features a gated shifter, dual-range (Hi/Lo) drive plus reverse gear, and is the most advanced – and durable – CVT drive system available. New gear ratio and CVT settings are tuned for recreational riding on the Yamaha-exclusive Maxxis® 26-inch tires. An automatic centrifugal clutch maintains constant belt tension for reduced belt wear and a sprag clutch delivers natural all-wheel engine braking. - Trail-Ready Chassis
All-new chassis designed to take advantage of 26-inch, exclusively-designed Maxxis® tires, 5-way preload adjustable suspension and four-wheel disc brakes, creating optimum terrainability, comfort and handling—especially on long, rough trails. - Sharp New Styling
The Grizzly’s new styling features LED headlights with a handlebar-mounted halogen work light, an LED taillight, reshaped fenders, with three large storage compartments and new, larger-diameter front and rear racks with increased load capacity. - Yamaha’s Exclusive On-Command 4WD
The three-position On-Command® 4WD system lets you switch between 2WD, limited-slip 4WD and a fully locked differential 4WD all with the simple push of a button. Override button allows engine to make maximum rpm in full diff. lock mode. - Advanced Instrumentation
New digital instrument panel boasts a multifunction LCD display with speedometer, odometer, dual tripmeter, hour meter, 4WD status, transmission position, clock and fuel gauge.
Specifications
Engine
Engine Type
708cc liquid-cooled DOHC 4-stroke; 4 valves
Bore x Stroke
103.0mm x 85.0mm
Compression Ratio
10.1:1
Fuel Delivery
Yamaha Fuel Injection (YFI), 44mm
Ignition
TCI: Transistor Controlled Ignition
Starting System
Electric
Transmission
Yamaha Ultramatic V-belt with all-wheel engine braking; H, L, N, R, P
Final Drive
On-Command 3-way locking differential; 2WD, 4WD, locked 4WD; shaft
Chassis
Suspension / Front
Independent double wishbone; 5-way preload adjustment, 7.6-in travel
Suspension / Rear
Independent double wishbone with anti-sway bar; 5-way preload adjustment, 9.1-in travel
Brakes / Front
Dual hydraulic disc
Brakes / Rear
Dual hydraulic disc
Tires / Front
AT26 x 8-12 Maxxis® MU05Y
Tires / Rear
AT26 x 10-12 Maxxis® MU06Y
Dimensions
L x W x H
81.5 in x 48.4 in x 49.3 in
Seat Height
36.1 in
Wheelbase
49.2 in
Turning Radius
137.8 in
Ground Clearance
11.3 in
Fuel Capacity
4.76 gal
Wet Weight***
679 lb
Rack Capacity Front / Rear
110 lb / 198 lb
Towing Capacity
1322 lb
Lighting
Dual LED headlights, 35/36.5W auxiliary light and LED brake light
Other
Warranty
6 Month (Limited Factory Warranty)
Features
Top Features:
- High-Tech Engine Designed For Aggressive Trail Riding
The 2016 Grizzly® has an all-new, more powerful DOHC, 708cc, 4-valve, fuel-injected engine with optimized torque, power delivery and engine character for aggressive recreational riding. Peak power is up six percent compared to the previous Grizzly 700, and torque rises nearly ten percent. - Optimized, High-Performance Ultramatic® Transmission
Grizzly’s Ultramatic® transmission features a gated shifter, dual-range (Hi/Lo) drive plus reverse gear, and is the most advanced – and durable – CVT drive system available. New gear ratio and CVT settings are tuned for recreational riding on the Yamaha-exclusive Maxxis® 26-inch tires. An automatic centrifugal clutch maintains constant belt tension for reduced belt wear and a sprag clutch delivers natural all-wheel engine braking. - Trail-Ready Chassis
All-new chassis designed to take advantage of 26-inch, exclusively-designed Maxxis® tires, 5-way preload adjustable suspension and four-wheel disc brakes, creating optimum terrainability, comfort and handling—especially on long, rough trails. - Sharp New Styling
The Grizzly’s new styling features LED headlights with a handlebar-mounted halogen work light, an LED taillight, reshaped fenders, with three large storage compartments and new, larger-diameter front and rear racks with increased load capacity. - Yamaha’s Exclusive On-Command 4WD
The three-position On-Command® 4WD system lets you switch between 2WD, limited-slip 4WD and a fully locked differential 4WD all with the simple push of a button. Override button allows engine to make maximum rpm in full diff. lock mode. - Advanced Instrumentation
New digital instrument panel boasts a multifunction LCD display with speedometer, odometer, dual tripmeter, hour meter, 4WD status, transmission position, clock and fuel gauge.
Engine:
- High-Tech Engine Designed For Aggressive Trail Riding
The 2016 Grizzly has an all-new, more powerful DOHC, 708cc, 4-valve, fuel-injected engine with optimized torque, power delivery and engine character for aggressive recreational riding. Peak power is up six percent compared to the previous Grizzly 700, and torque rises nearly ten percent. - High-Mounted Air Intake
A new longer, high-mounted air intake layout increases power and torque while providing additional room for center storage and easy “no tools” servicing of the larger new foam air filter element. - Fuel Injection
Mikuni® fuel injection with 44mm bore and throttle position sensor means easy cold starts and flawless fuel delivery in nearly any condition. - Maximum RPM in Full Diff. Lock
Override button allows engine to make maximum rpm in full diff. lock mode. - Straight Driveshaft
Straight driveshaft layout eliminates U-joints for reduced friction, noise, vibration and maintenance. - Stainless Steel Exhaust
Stainless steel exhaust system features a screen-type spark arrestor for great power with minimum noise output. - High-Capacity Radiator with Fan
High-capacity radiator with fan-assist delivers ten percent more air flow for maximum cooling efficiency and is positioned high in the frame for optimal protection. - Five-Position Gated Shift Lever
Yamaha’s peerless Ultramatic transmission runs through a five-position shift lever with High, Low, Neutral, Reverse and Park gates - for positive and precise transmission operation. - Drive System Air Intake
Specially designed high-mounted drive system air intake helps reduce drive system temperatures and assists in keeping water and debris from entering the drive case.
Chassis/Suspension:
- High-Performance Tires
26-inch, exclusively-designed Maxxis® tires provide precise steering, optimize comfort and maximize available traction. - Independent Double Wishbone Front and Rear Suspension
Independent double wishbone suspension, with 7.6” of front wheel travel and 9.1” at the rear, provides excellent rider comfort even on the toughest trails, thanks to nitrogen-charged shocks with new settings and 5-way adjustable preload. - Four-Wheel Hydraulic Disc Brakes
Four-wheel hydraulic disc brakes with dual-piston calipers serve up powerful and consistent braking performance to add to rider confidence with unmatched braking feel. - New Underseat Fuel Tank
An optimized 4.76-gallon fuel tank is located under the seat for excellent mass centralization and handling. - 11.3 Inches of Ground Clearance
The 2016 Grizzly offers an improved 11.3 inches of ground clearance and full-length composite skid plates, to deliver maximum underbelly protection while enhancing terrainability. - Aggressive and Durable New Styling
Rugged blow-molded front bumper resists scratching and won’t rust, while injection-molded fenders and CV joint guards protect against rock and debris damage.
Additional Features:
- Trailer Ball Mount
Heavy-duty ball mount hitch comes standard and can tow more than 1300 pounds. - Extensive Cargo Capacity
Larger-diameter, rugged steel cargo racks with special, extra-durable wrinkle paint finish can pack a total of 308 pounds combined (110 lbs. front, 198 lbs. rear). Three on-board storage compartments keep things secure. - LED Headlights and Taillight
LED technology uses less power, creates brighter, sharper illumination and offers lifetime durability. - Auxiliary Third Light and Power Point
A handlebar-mounted halogen work light provides additional illumination that moves with rider input for excellent visibility, while a 12 V outlet provides power for accessories. - New Plush Seat
Newly designed seat is longer, improving rider comfort for extended days exploring every trail.
MISC
- Yamaha accessories are available to enhance the ownership experience for the recreational rider or hunter.
- Assembled in USA
Assembled Real World Tough™ in Newnan, GA, U.S.A.
