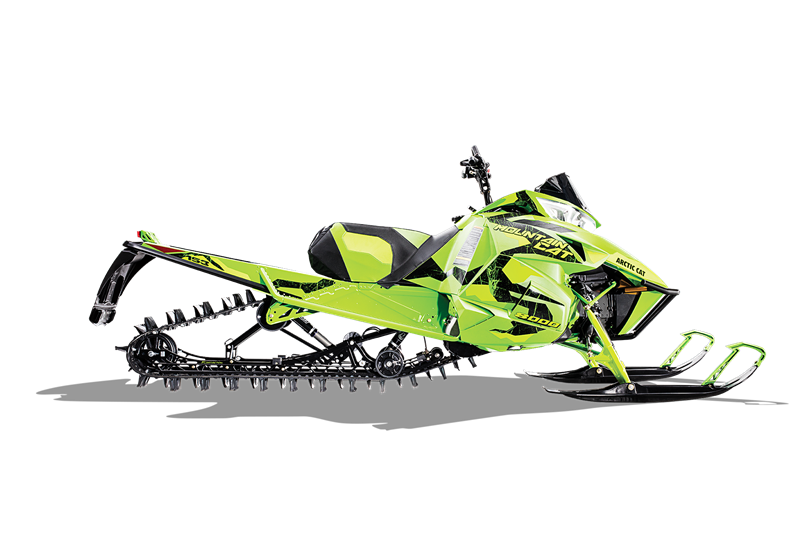

2017 Arctic Cat M 8000 MOUNTAIN CAT (153)

2017 Arctic Cat M 8000 MOUNTAIN CAT (153)
Team Arctic Green
MSRP: $14,499.00
Manufacturer: Arctic Cat
Condition: New

Description

  • 8000 ENGINE

    160‑class HP makes this 794cc 2-stroke the most powerful 800 engine in the industry. It features a lightweight, quick‑revving crankshaft, twin spark plugs per cylinder and weight-saving engine reverse technology. The engine knock sensor provides octane recognition, giving you more fuel options.

  • ARCTIC MOUNTAIN FRONT SUSPENSION WITH FOX FLOAT 3 EVOL SHOCKS

    The Arctic Mountain front suspension packs the essentials. The ProClimb-7 mountain ski is 7″ at the tip, tapering to 6.5″ at the center to enhance your carving. Single-post, angled-out spindles help you shed some sled weight while maximizing quality and strength. The premium FOX FLOAT® 3 EVOL shocks offer lightweight design, simplified adjustment and premium bump control features of the FLOAT 3, but with improved resistance to bottoming and reduced cornering “roll” thanks to the added EVOL air chamber.

  • FLOAT-ACTION REAR SUSPENSION WITH FOX FLOAT 3 EVOL FRONT AND FOX FLOAT 3 EVOL R REAR SHOCKS

    The FLOAT-ACTION Rear Suspension features revised rails that shed 1.25 pounds, giving optimal suspension travel and a better ride quality in all conditions. The FLOAT-ACTION suspension incorporates mountain-specific geometry, delivering consistent track tension. The FOX FLOAT® 3 EVOL ski and front track shocks, plus the FOX FLOAT 3 EVOL R rear track shocks, are engineered as a lightweight design, with the simplified adjustment and premium bump control features of the FLOAT 3 shocks, but with the improved resistance to bottoming and reduced cornering “roll” that comes with the added EVOL air chamber.

  • 1.125" DROPPED DRIVESHAFT

    The Mountain Cat’s increased track-to-tunnel clearance of 3″ allows us to use 8-tooth drive sprockets on this model, giving you a flatter approach angle with more floatability and maneuverability. In addition, you’ll also notice a mountain of difference in your sled handling. This update in the Mountain Cat delivers a more efficient power transfer to the snow, letting you enjoy more horsepower when climbing, carving, sidehilling and boondocking. The mountains are tough. Now you’re equipped to get tough right back.

  • 12V OUTLET

    Need to charge your phone or another electrical device? We’ve got you covered. Just plug in and power up while you ride.

  • HAND & THUMB WARMERS

    Say goodbye to cold hands. Our hand and thumb warmers provide plenty of warmth and comfort on long rides.

  • DELUXE DIGITAL ANALOG GAUGE

    The deluxe gauge lets you choose between digital and analog speed and tachometer readouts. There’s also an odometer, two trip meters, engine hour meter, reverse indicator and warning lights. Like we said, it’s deluxe.

  • HCR-TYPE HEAT EXCHANGER

    Proven on our HCR model for the past four seasons, this exchanger is nearly 4 lbs. lighter than full-length versions. Plus it reduces snow build up to reduce even more weight.

  • ICE SCRATCHERS

    As part of the heat exchange system, ice scratchers can save the day when there’s minimal snow but plenty of ice. In that kind of riding condition, lowering the ice scrapers kicks up ice to help prevent your engine from overheating.

  • MOUNTAIN STRAP

    Want to shift your weight? This puts the extra leverage you need right in your hands.

  • 153-IN. POWER CLAW TRACK WITH 3-IN. LUGS

    This lightweight, 153″ single-ply track with a 3″ pitch sets the standard for deep snow performance. Stagger-set, curved-forward paddle towers won’t fold over. The new industry-leading 3″ lug grips the powder like no other.

  • LIGHTWEIGHT BRAKE DISC

    For improved performance, we’ve made the rotor 12% larger, yet 60% lighter. That translates to more confidence for rugged backcountry riding.

  • VERTICAL STEERING POST, 4.5" RISER WITH ADJUSTABLE MOUNTAIN HANDLEBAR

    Want to counter-steer on steep hills? This 4.5″ vertical post provides a more natural handlebar turning arc when you’re riding standing up.

  • PROCLIMB - 7 SKIS

    The new ProClimb-7 mountain ski is 7″ at the tip, tapering to 6.5″ at the center. The wider skis enhance your carving abilities and prevent unintended downhill braking. A wider ski damper featuring a longer axle and bolt increases lateral adjustability.

  • GOGGLE HOLDER

    Warm, dry goggles are as near as our goggle holder. The heat from the engine dries your goggles as you ride. Also works for masks and gloves.

  • PROCLIMB FRONT BUMPER

    Made of lightweight aluminum, this bumper adds both protection and style. Plus it’s scratch resistant and has a rugged powder-coat finish.

  • IN-SEAT STORAGE AND SHOVEL BAG

    With plenty of in-seat storage, you’ve got plenty of room for things like your cellphone, extra gloves and more. And with our convenient shovel pack, you’ve also got a place for your shovel. It features a low-profile design plus Cam-lock attachments that eliminate the need for straps and hooks.

  • 5.5" RACE-HEIGHT WINDSHIELD

    With its sporty look and enough protection for the track, this windshield’s low profile allows you to see everything as you lead the pack.

Specifications

ENGINE

Type
2-stroke
Displacement (cc)
794
Cooling
Liquid
Cylinders
2
Bore x Stroke (mm)
85 x 70
Lubrication
Oil injection
Ignition
Digitally Controlled CDI
Engine Stator Output
325 Watts
Fuel Delivery
Electronic Fuel Injected (EFI)
Exhaust
APV with tuned pipe, pipe sensor and stainless steel muffler
Fuel Capacity gal. (l)
11.7 (44.29)
Oil System Capacity qt. (l)
3.9 (3.69)
Coolant System Capacity qt. (l)
5 (4.73)
Minimum Octane
91


SUSPENSION

Front Suspension
Arctic Mountain Suspension (AMS)
Ski Shocks
FOX FLOAT 3 EVOL
Front Travel in. (cm)
7 (17.78)
Rear Suspension
FLOAT-ACTION Rear Suspension
Front Track Shock
FOX FLOAT 3 EVOL
Rear Track Shock
FOX FLOAT 3 EVOL R
Rear Travel in. (cm)
15.5 (39.37)


DIMENSIONS

Chassis Overall Length in. (cm)
132.3 (336.04)
Chassis Overall Width in. (cm)
41.5-45.5 (105.41-115.57)
Chassis Overall Height in. (cm)
50 (127)
Track Type
Power Claw
Track Width in. (cm)
15 (38.1)
Track Length in. (cm)
153 (388.62)
Lug in. (cm)
3.0 (7.62)
Pitch in. (cm)
3.00 (7.62)
Ski Stance in. (cm)
34.5-38.5 (87.63-97.79) Adjustable
Ski Type / Width in. (cm)
ProClimb - 7 (17.78)
Runner Type
Single runner w/carbide


INSTRUMENTATION

Type of Gauge
Deluxe Digital Analog
Speedometer
Digital/Analog
Tachometer
Digital/Analog
Odometer
Digital
Fuel
Digital
Oil
Indicator Light
Coolant
Indicator Light
Altimeter
Digital
Hours
Digital


KEY ITEMS

12V Outlet
Standard
Electric Start
Accessory
Front Bumper
ProClimb
Goggle Holder
Standard
Hand & Thumb Warmers
Accessory
Hand Guards
Accessory
HCR-type Heat Exchanger
Standard
Headlights
Dual halogen 2-bulb
Ice Scratchers
Standard
Lightweight Brake Disc
Standard
Mirrors
Accessory
Mountain Strap
Standard
Rear Rack
Accessory
Rear Storage
Seat/tunnel storage
Seat
Lightweight Mountain Limited
Side Panel Wind Deflectors
Accessory
Sno Pro Brake Lever
Accessory
Steering
Vertical steering post, 4.5 in. (11.43 cm) riser with adjustable mountain handlebar
Tether Switch
Accessory
Tow Hitch
Accessory
Tunnel Flare
Accessory
Underseat Storage
Standard
Visor Plug-ins
Accessory
Windshield
5.5 in. (13.97 cm) Race-height


POWERTRAIN

Drive Clutch
TEAM Rapid Response
Driven Clutch
TEAM Rapid Reaction BOSS
Drive System
Arctic Mountain Drive System
Brakes
Race radial master cylinder hydraulic brake
Clutch Calibration ft. (m)
6,000-9,000 (1.829-2,743)
Gearing
19/50
Chain Pitch
90
Reverse
Push-button Engine
